Spicy CF 7.9
Spicy CF 7.9
Description

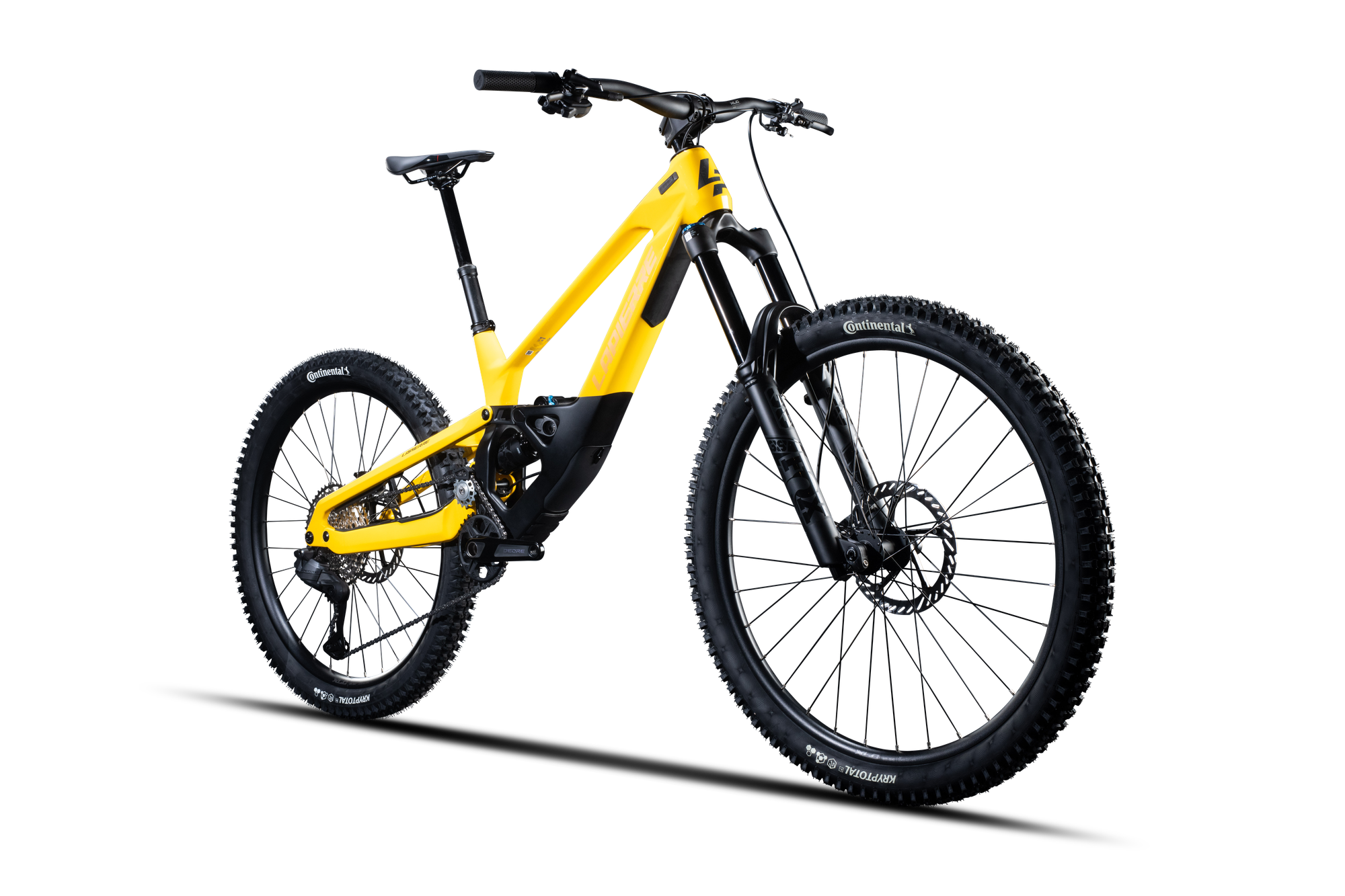

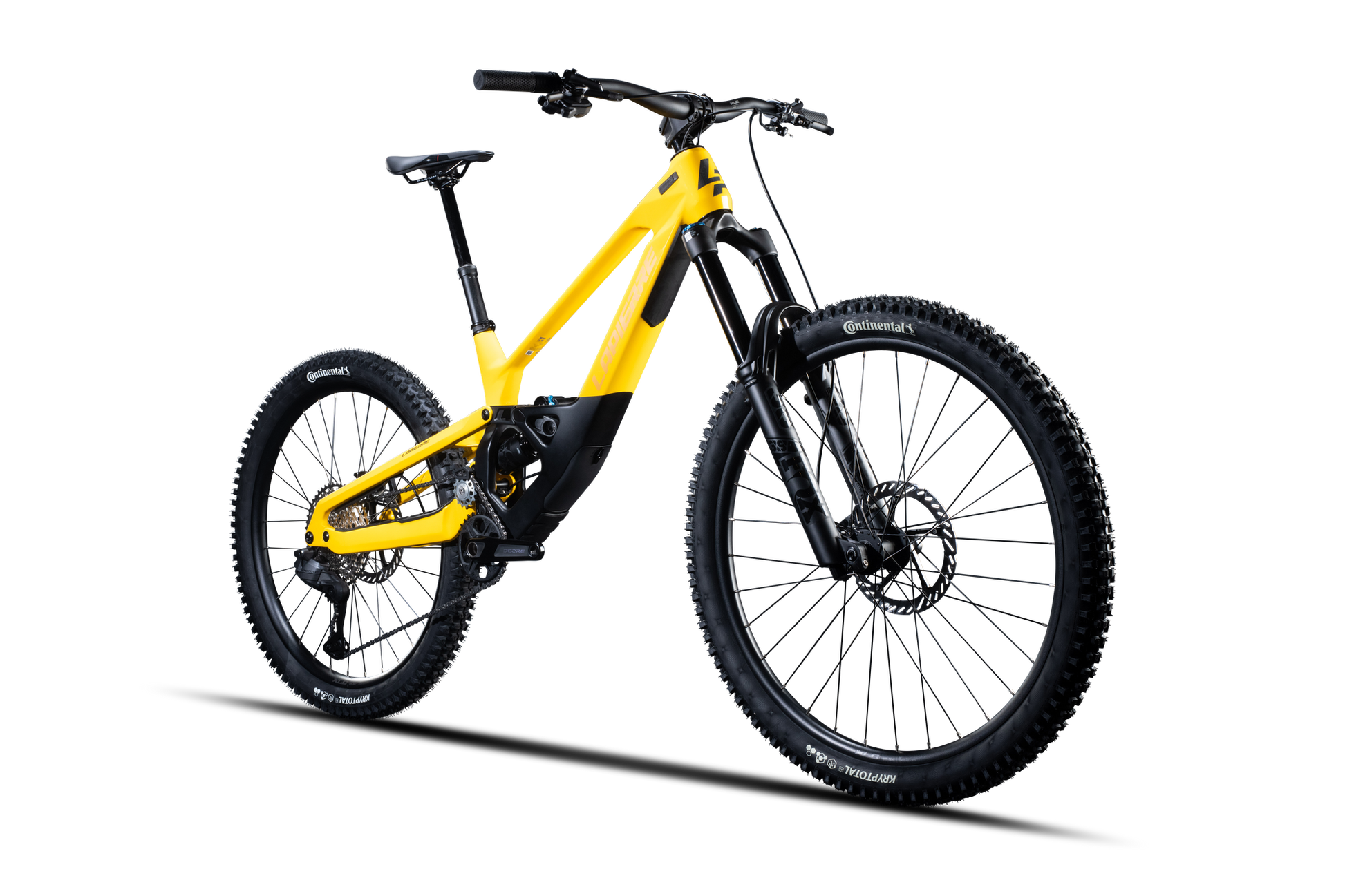

Una delle mountain bike da enduro più veloci della gamma. La Spicy CF 7.9 presenta un telaio in fibra di carbonio, una geometria aggressiva e un'escursione di 170 mm. Affronta qualsiasi terreno con le sue ruote da 29 pollici e la forcella Fox da 170 mm: questa bici è una vera e propria concorrente di livello.
Geometry
| Component | XS | S | M | L | XL |
|---|---|---|---|---|---|
| A: Seat tube length (mm) | 350 mm | 370 mm | 400 mm | 430 mm | 460 mm |
| B: Top Tube legth (mm) | 544 mm | 570 mm | 596 mm | 617 mm | 644 mm |
| C: Head tube length (mm) | 100 mm | 110 mm | 115 mm | 120 mm | 130 mm |
| D: Head Tube Angle | 63.5 degrees | 63.5 degrees | 63.5 degrees | 63.5 degrees | 63.5 degrees |
| E: Seat Tube Angle | 78 degrees | 78 degrees | 78 degrees | 78 degrees | 78 degrees |
| F: Chain stay length (mm) | 440 mm | 440 mm | 440 mm | 445 mm | 450 mm |
| G: Wheelbase (mm) | 1200 mm | 1229 mm | 1256 mm | 1283 mm | 1318 mm |
| H: Stack (mm) | 627 mm | 636 mm | 641 mm | 645 mm | 654 mm |
| I: Reach (mm) | 410 mm | 435 mm | 460 mm | 480 mm | 505 mm |
| K: Bottom bracket drop (mm) | 16 mm | 15 mm | 15 mm | 15 mm | 15 mm |
Specifications
e-System
e-System
Battery:
Charger:
Display:
Motor:
Frame
Frame
Frame: HIGH Carbon Uni
Modular Rail System:
Maximum loadable weight: 120 kg
Drive
Drive
Cassette: Shimano Deore CS-M6100-12, MICRO SPLINE
Chain: Shimano CN-M6100 12s
Crankset: Deore FC-M6120, 2-Piece Crankset

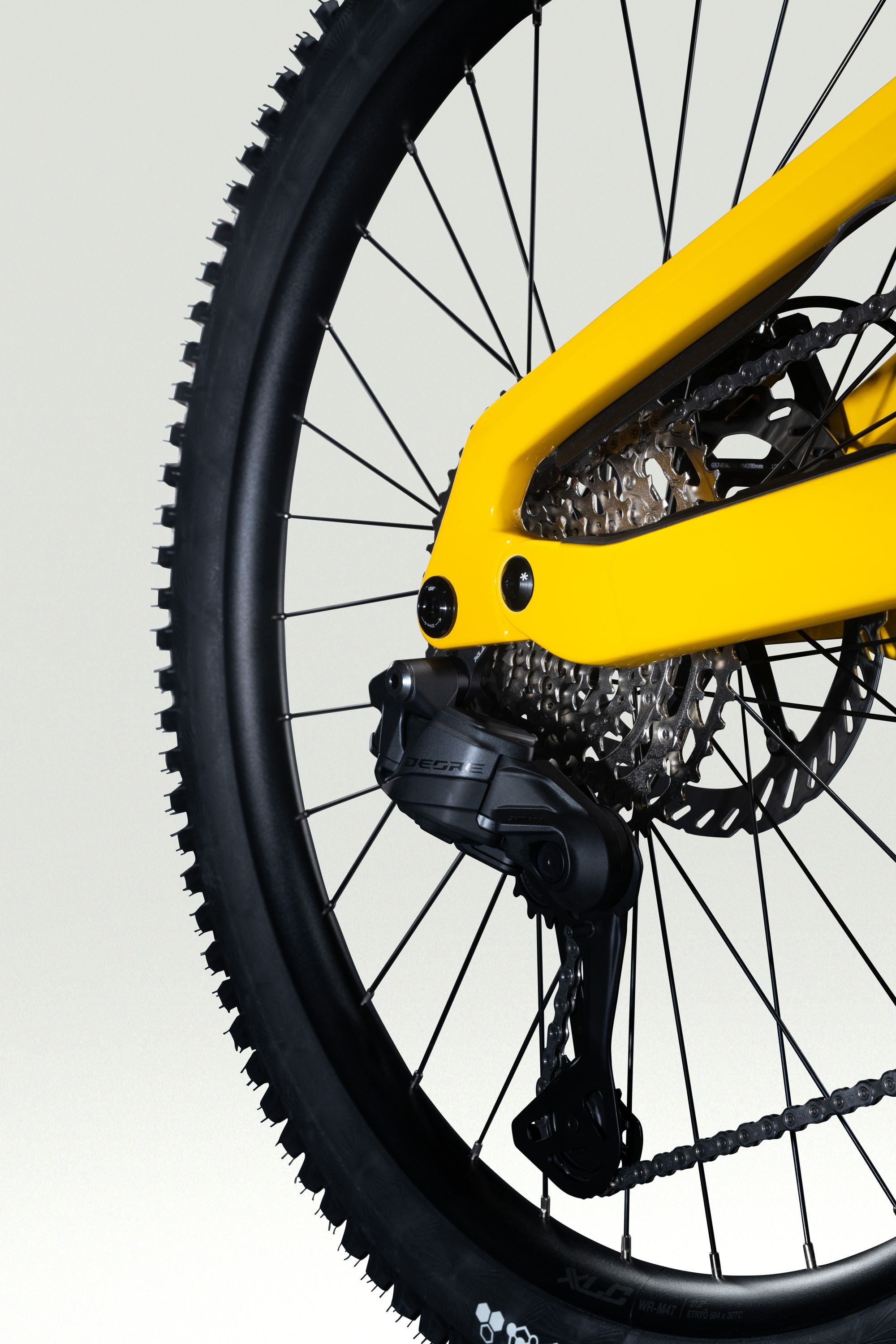

Derailleur Rear: Shimano Deore RD-M6250-SGS 12s, Shadow ES
Gear: Shimano Derailleur
Number of gears: 12
Shifter Right: Shimano Triggershift Deore SW-M6250-IR, wireless SL
Suspension
Suspension

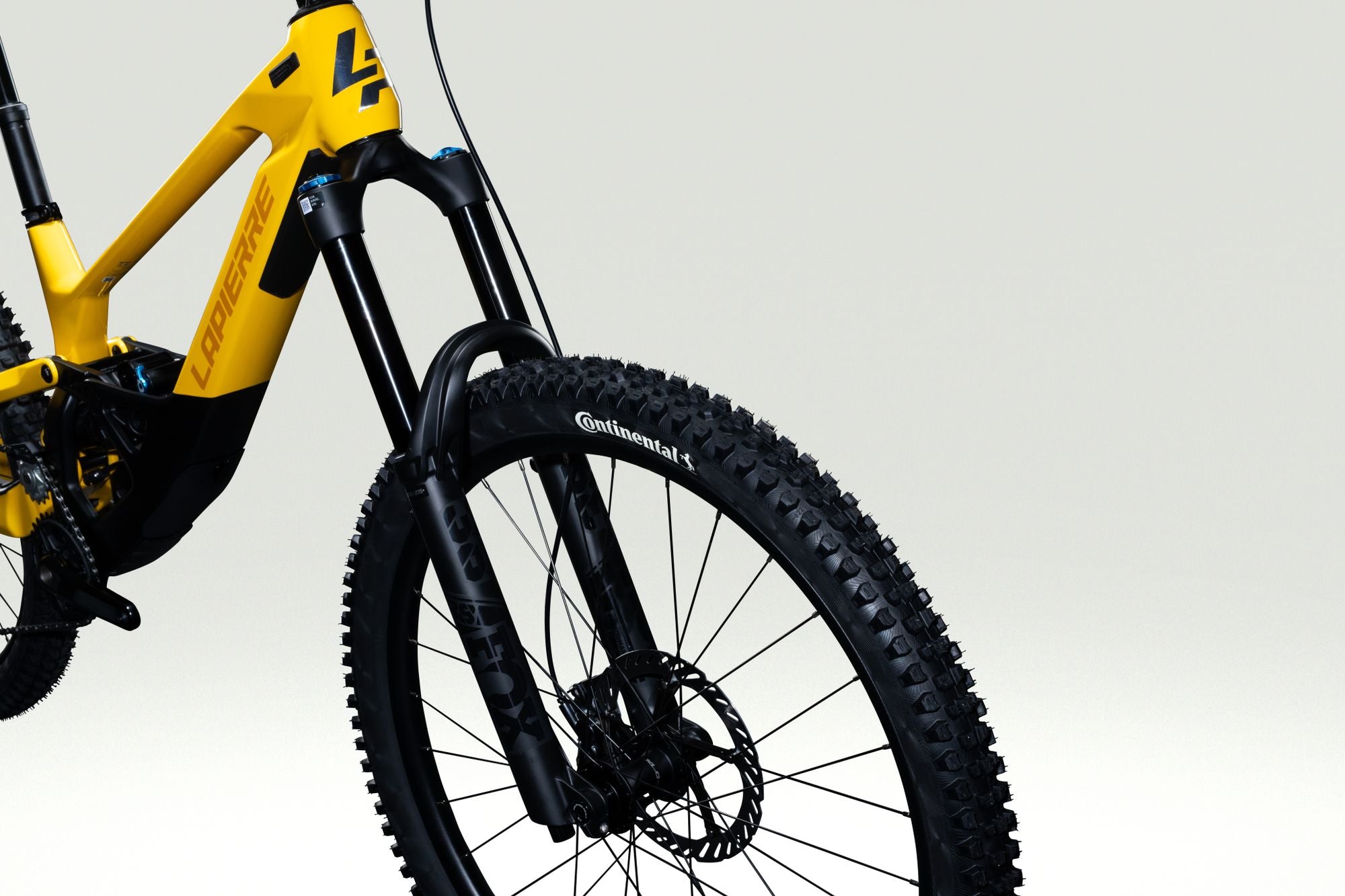

Front Fork: FOX Factory 38 Float Performance Select Grip X2, 180 mm
Travel: 180 mm
Shock: FOX Factory Float X2 Performance Elite Series, 205x65 mm, Trunnion
Damper:
Rear Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake Deore BR-M6120, 4 pistons, resin pad, 203 mm
Rear Brake: Shimano Hydraulic Disc brake Deore BR-M6120, 4 pistons, resin pad, 203 mm
Headlight:
Rear Light:
Brake light:
Grips: XLC GR-S34 Gravity Grip

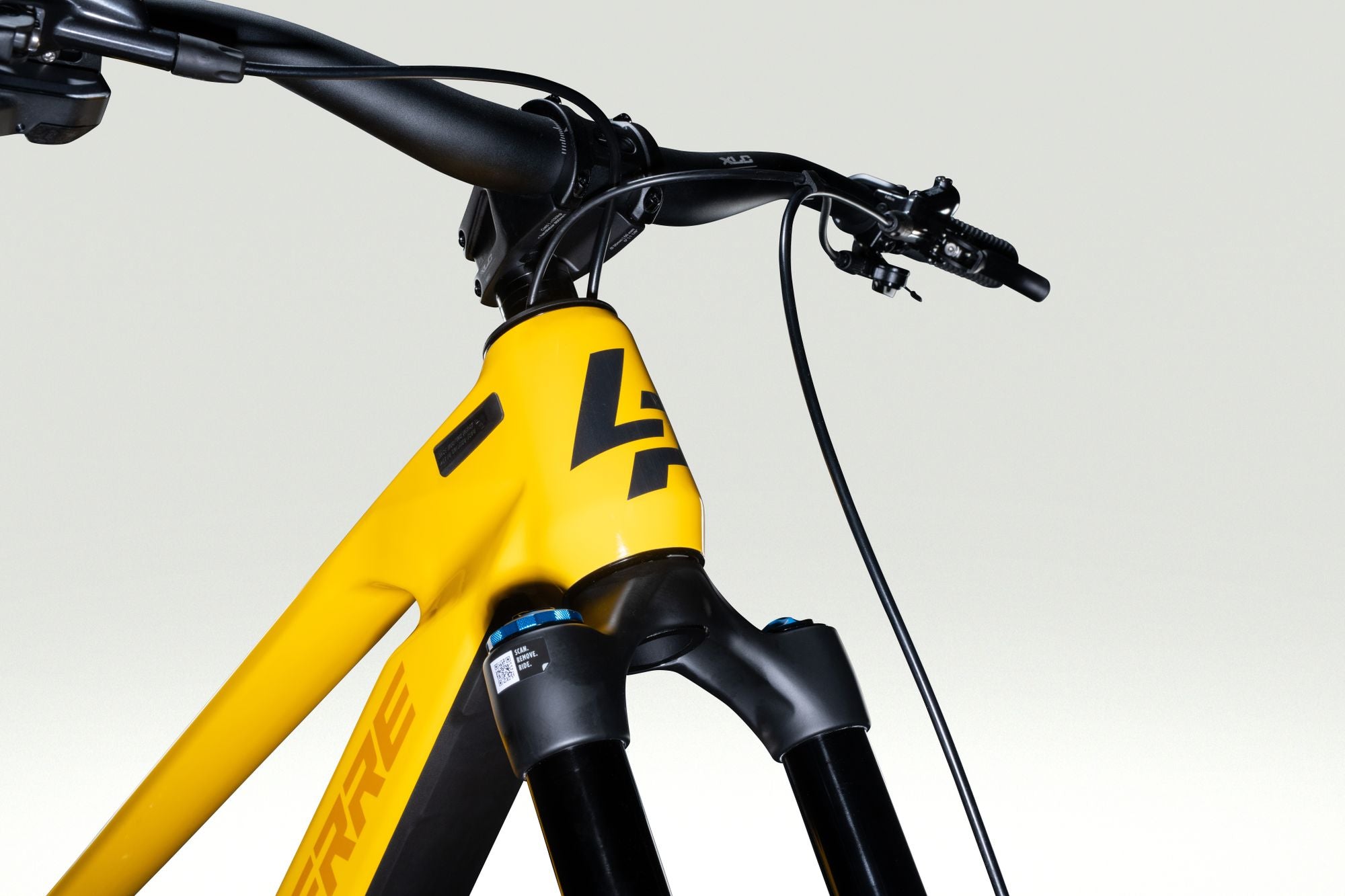

Handlebar: XLC Flat bar HB-M34, Dia. 35 mm, Rise: 30 mm, backweep 9°
Pedal: XLC PD-M29 Flat w. Reflector
Saddle: Prologo MTB Proxim Nembo Steel 145

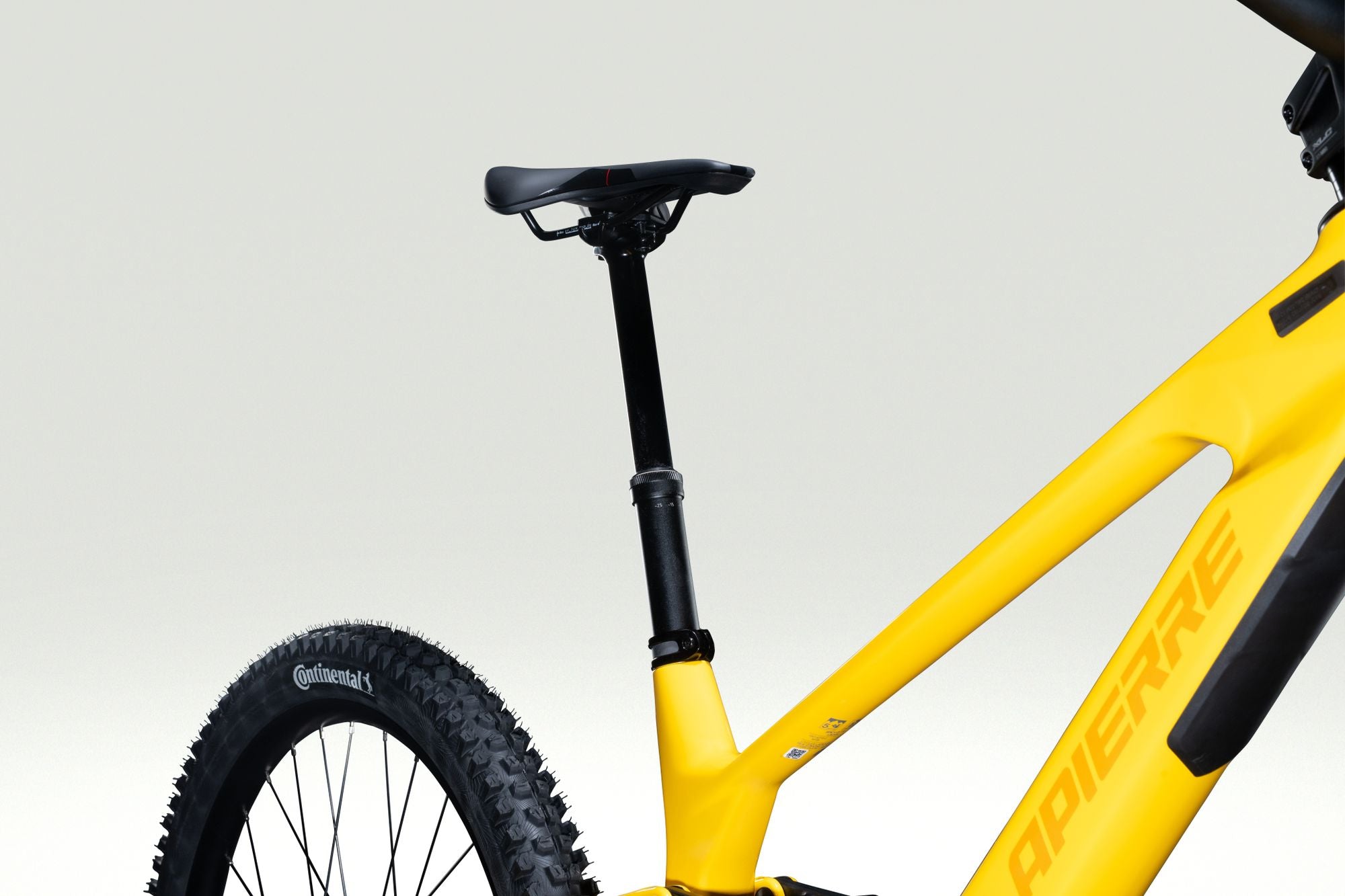

Seatpost: JD Dropperpost YSI60, Dia. 31.6 mm, Travel: 125 mm 405 mm
Wheelset
Wheelset
wheel set:
wheel set:
Rim: XLC WR-M49 SL Disc 30/622, 32H, 6,5 mm Valve
Tyre: Continental Kryptotal-F Enduro SuperSoft foldable skin SL 60-584
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
