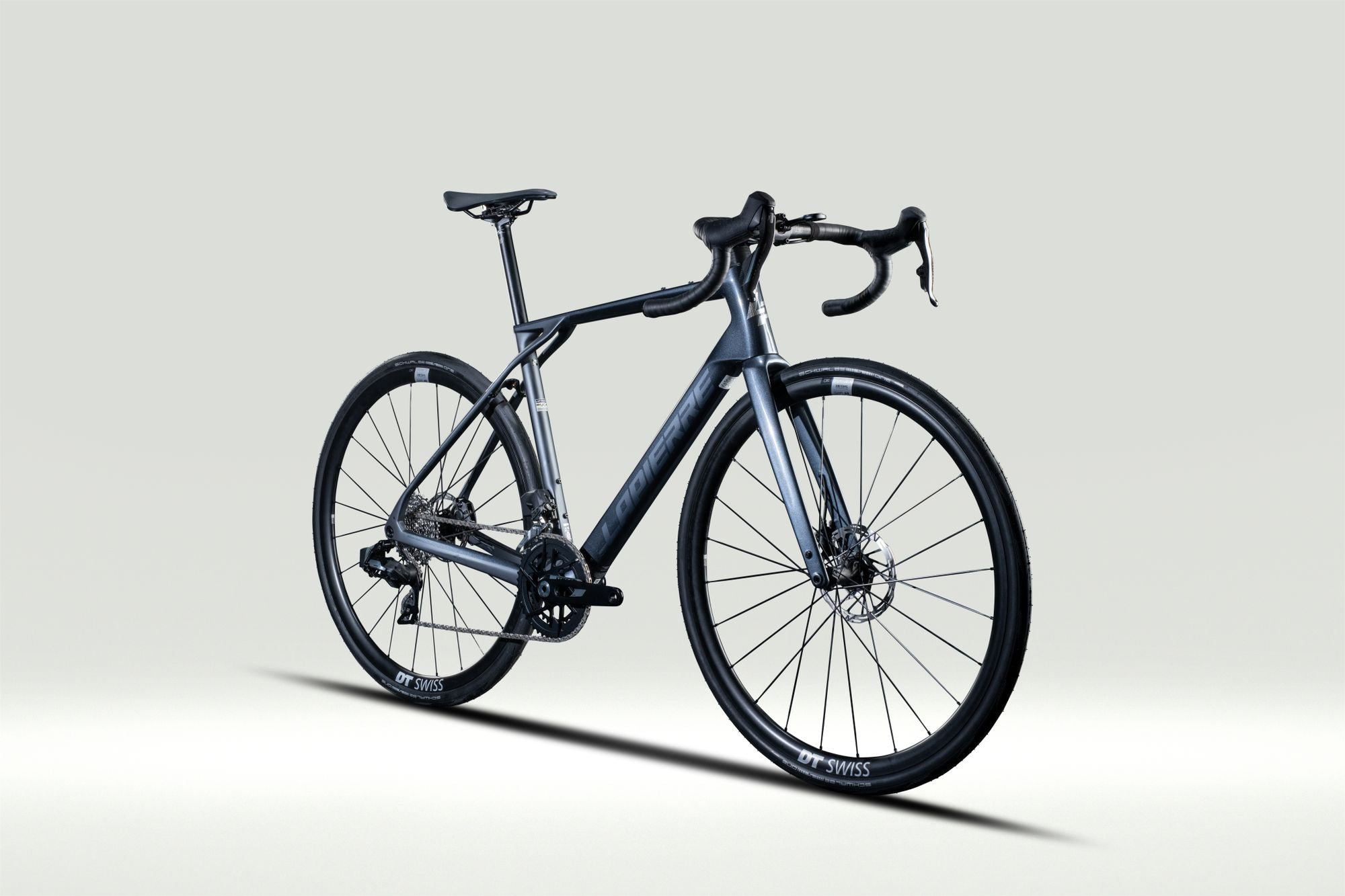

Pulsium 6.0 AXS
Pulsium 6.0 AXS
Description
La nuova Pulsium ti permette di scoprire tutti i vantaggi di una bici in carbonio, senza i limiti imposti da una disciplina specifica. Progettata sia per le gare di resistenza che per il bikepacking, le sue linee slanciate e il telaio confortevole ti consentono di affrontare la tua prossima avventura senza alcun vincolo.

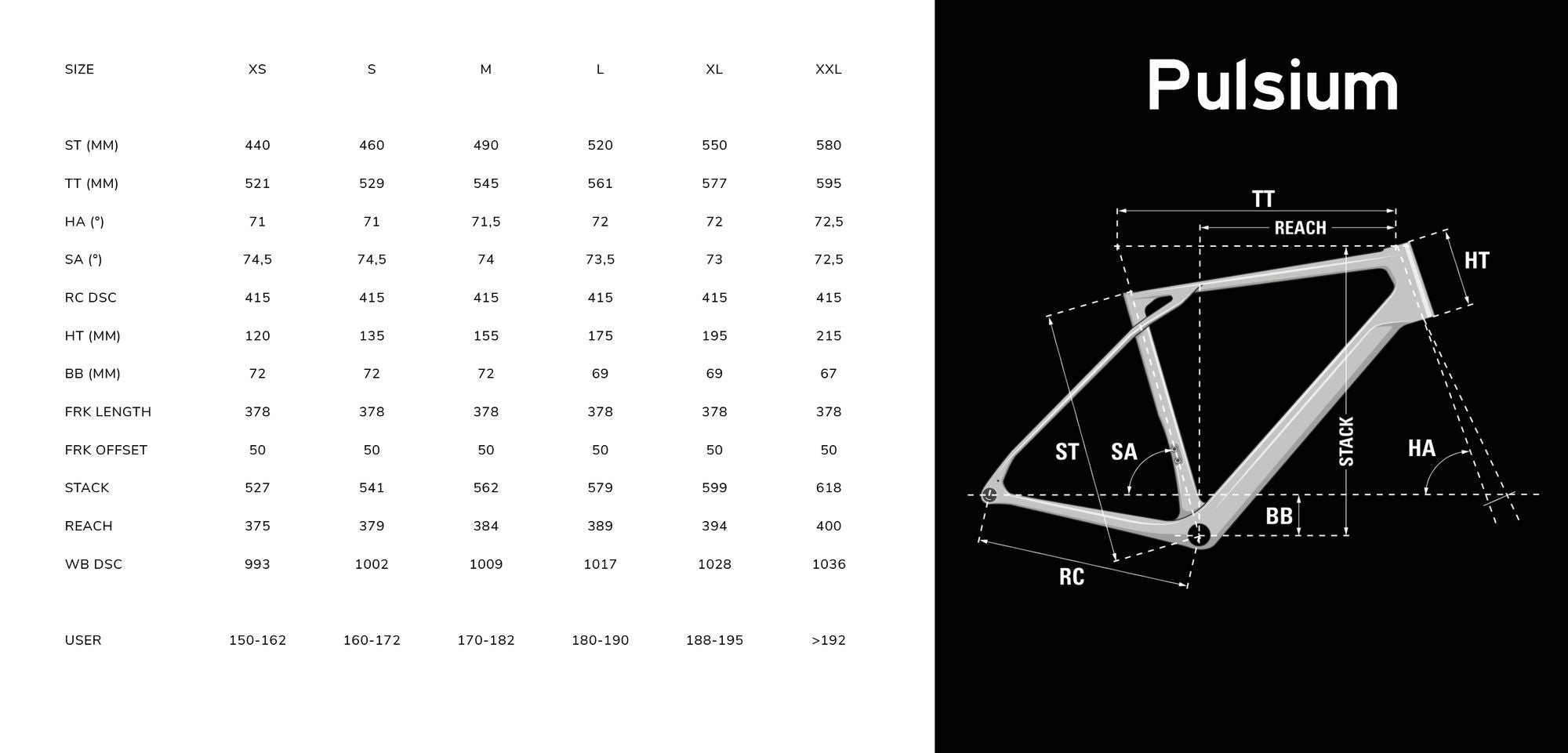

Geometry
| Component | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| A: Seat tube length (mm) | 440 mm | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| B: Top Tube legth (mm) | 521 mm | 529 mm | 545 mm | 561 mm | 577 mm | 595 mm |
| C: Head tube length (mm) | 120 mm | 135 mm | 155 mm | 175 mm | 195 mm | 215 mm |
| D: Head Tube Angle | 71 degrees | 71 degrees | 71.5 degrees | 72 degrees | 72 degrees | 72.5 degrees |
| E: Seat Tube Angle | 74.5 degrees | 74.5 degrees | 74 degrees | 73.5 degrees | 73 degrees | 72.5 degrees |
| F: Chain stay length (mm) | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| G: Wheelbase (mm) | 993 mm | 1002 mm | 1009 mm | 1017 mm | 1028 mm | 1036 mm |
| H: Stack (mm) | 527 mm | 541 mm | 562 mm | 579 mm | 599 mm | 618 mm |
| I: Reach (mm) | 375 mm | 379 mm | 384 mm | 389 mm | 394 mm | 400 mm |
| K: Bottom bracket drop (mm) | 72 mm | 72 mm | 72 mm | 69 mm | 69 mm | 67 mm |
Specifications
e-System
e-System
Battery:
Charger:
Display:
Motor:
Frame
Frame

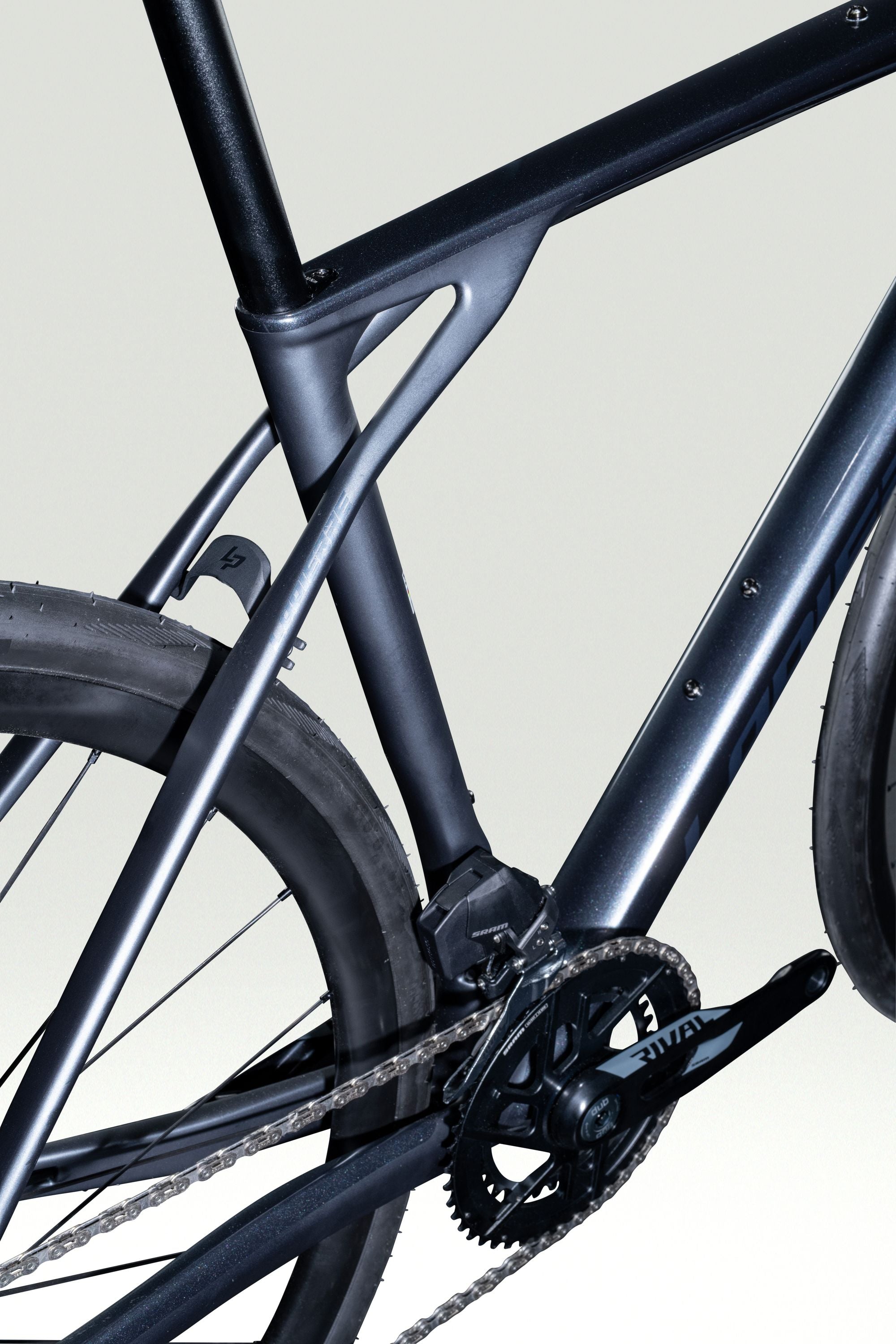

Frame: HIGH Carbon Uni
Modular Rail System:
Maximum loadable weight: 110 kg
Drive
Drive
Cassette: Sram XG-1250 D1, XDR
Chain: Sram Rival E1 12s

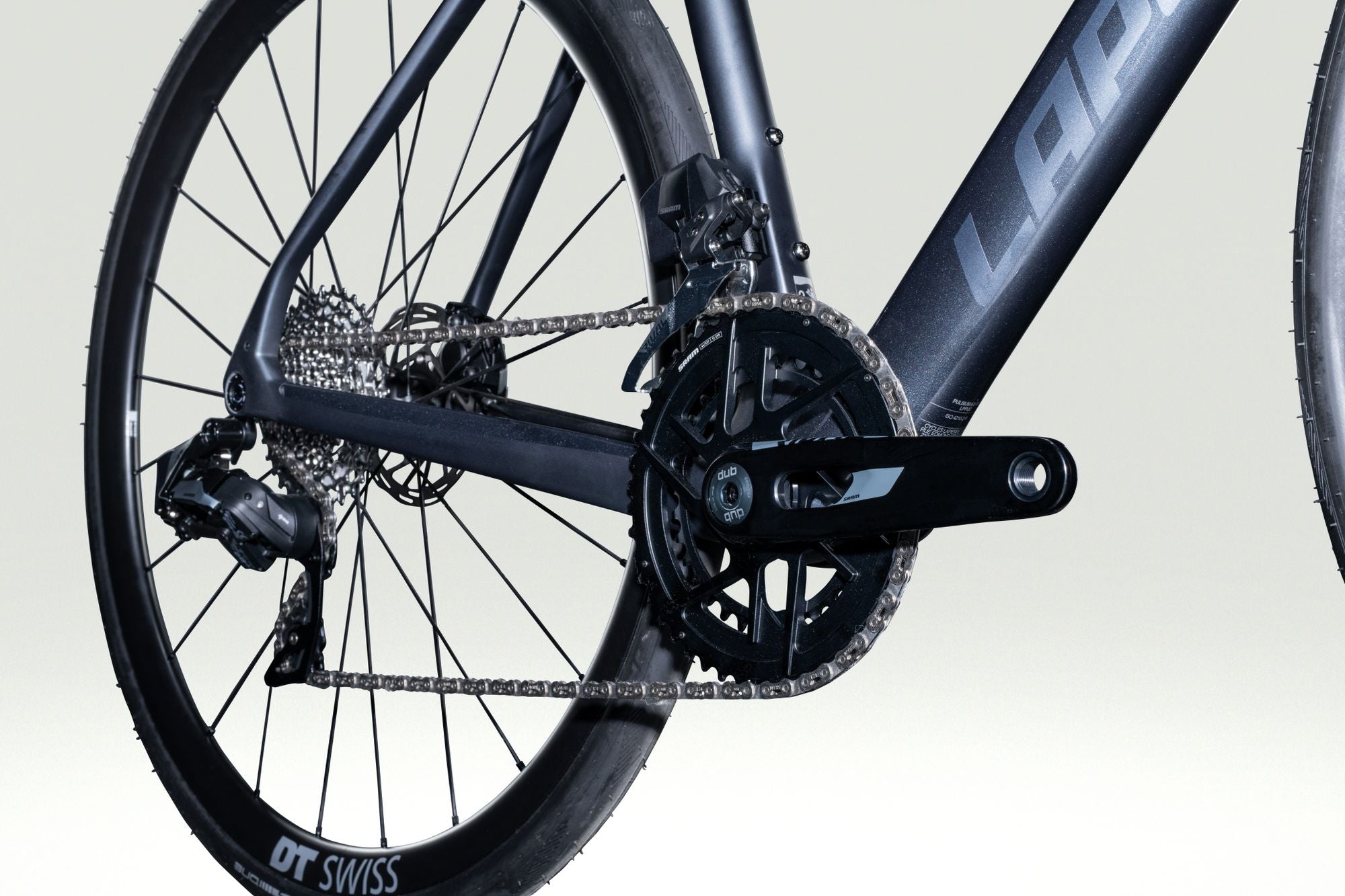

Crankset: Rival E1 DUB

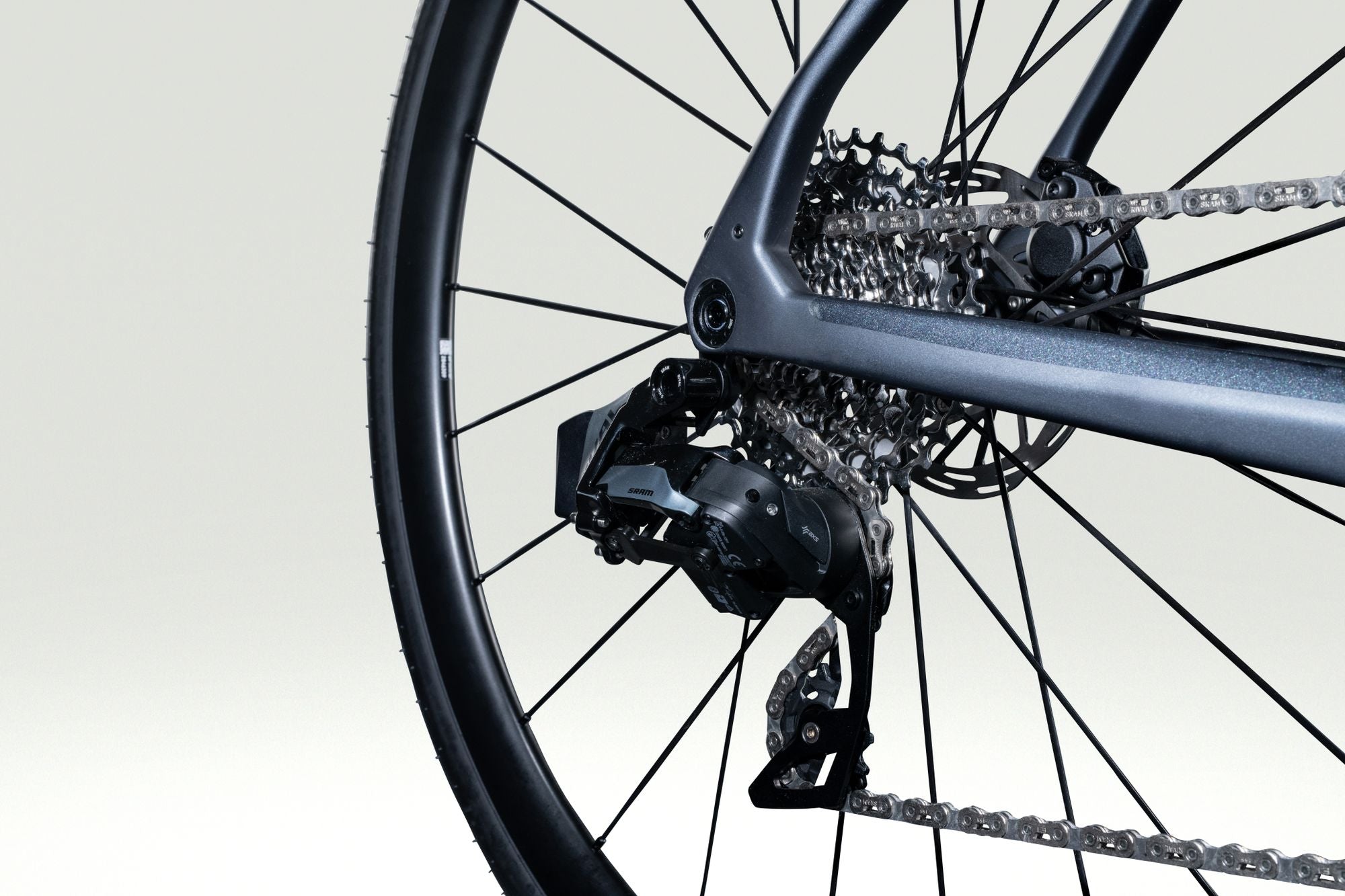

Derailleur Rear: Sram Rival AXS E1 12s
Gear: Sram Derailleur
Number of gears: 24
Shifter Right: Sram Shift-brake lever ED RIVAL AXS E1 1-Finger Carbon Shift-Brake-Lever
Suspension
Suspension

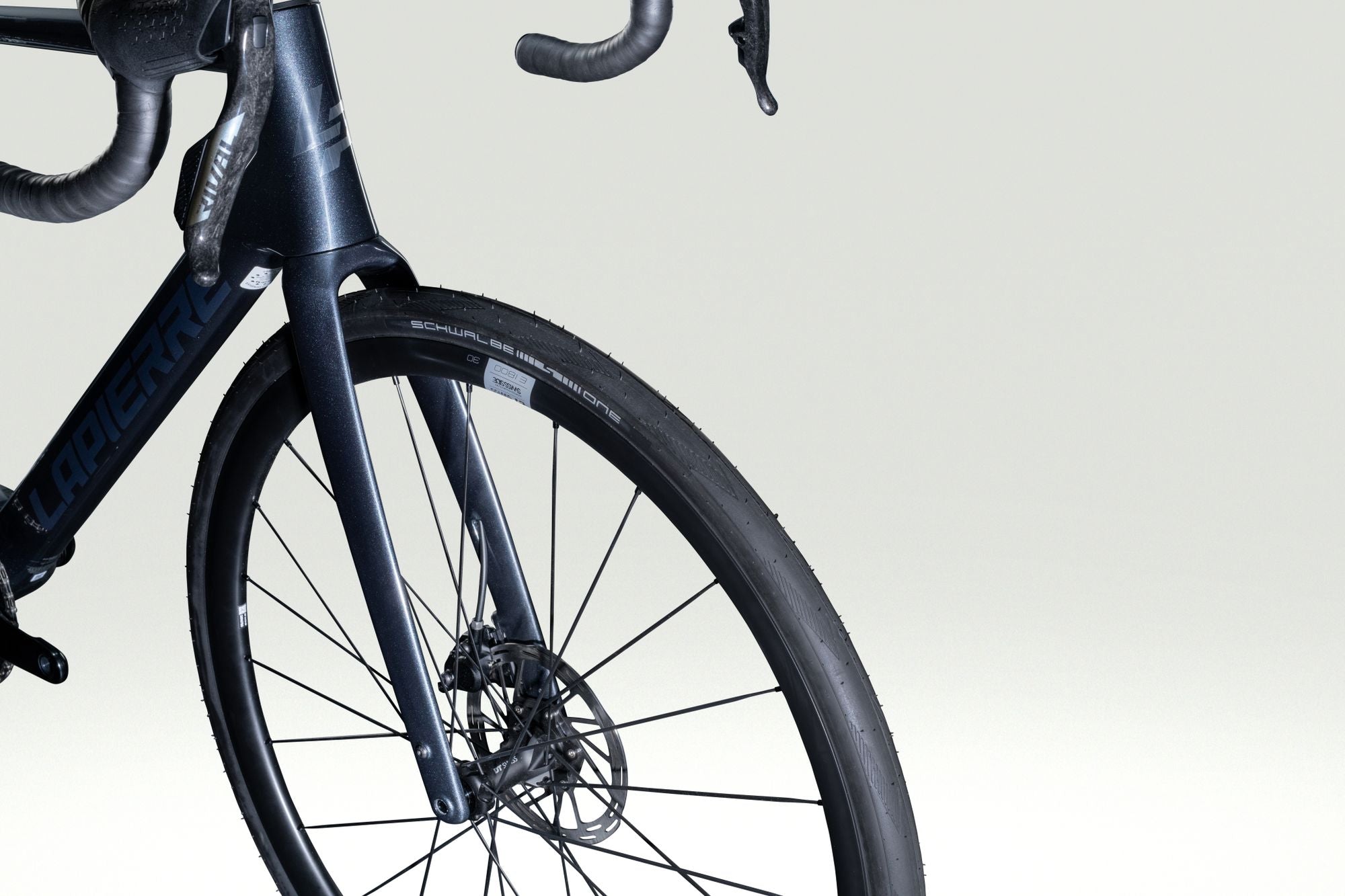

Front Fork: Lapierre Rigid Fork Pulsium 6.0 AXS
Travel:
Shock:
Damper:
Rear Travel:
Components
Components
Front Brake: Sram Hydraulic Disc brake Rival AXS E1 SJD, 2 pistons, 160 mm
Rear Brake: Sram Hydraulic Disc brake Rival AXS E1 SJD, 2 pistons, 140 mm
Headlight:
Rear Light:
Brake light:
Grips: Velo

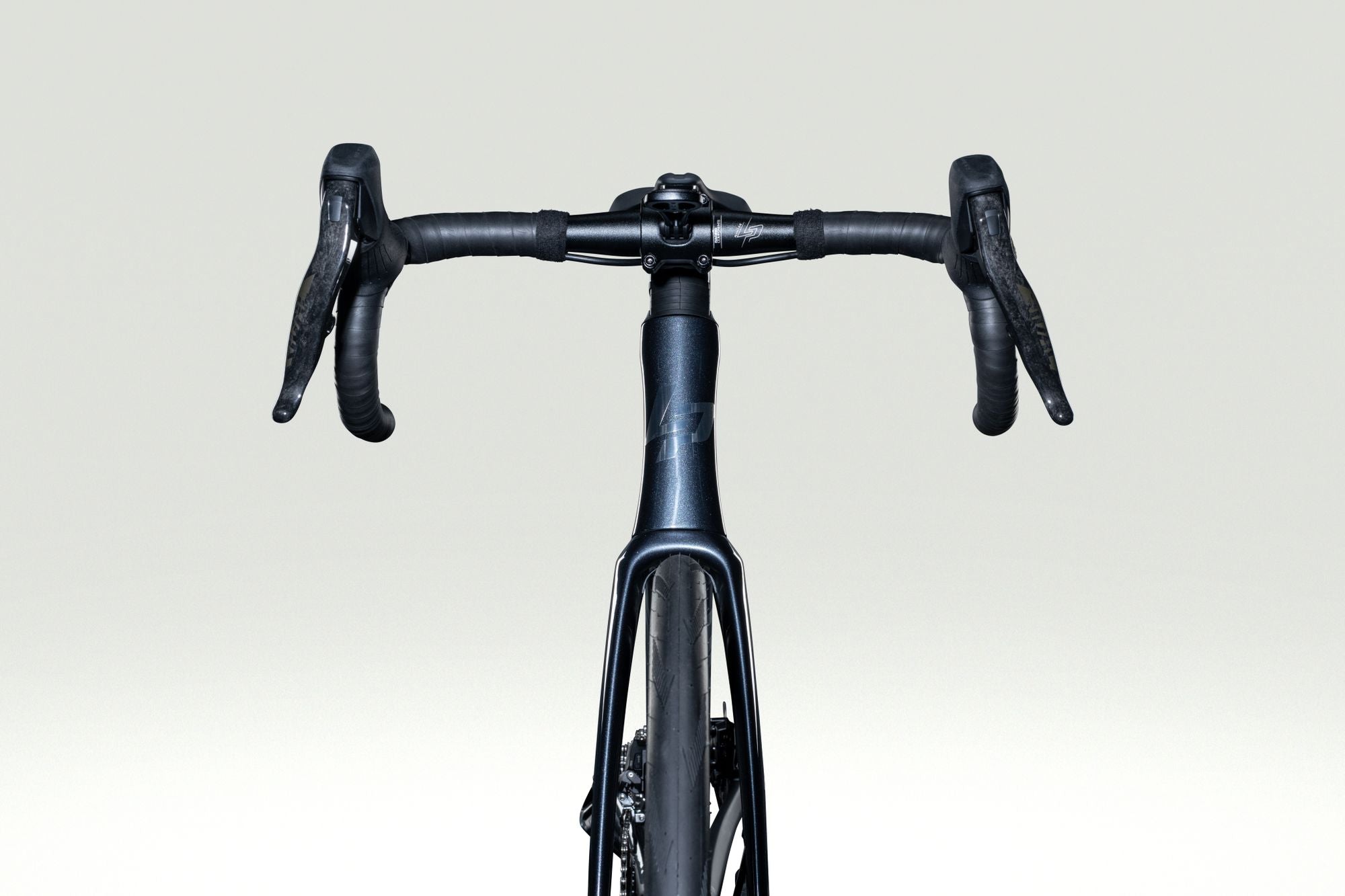

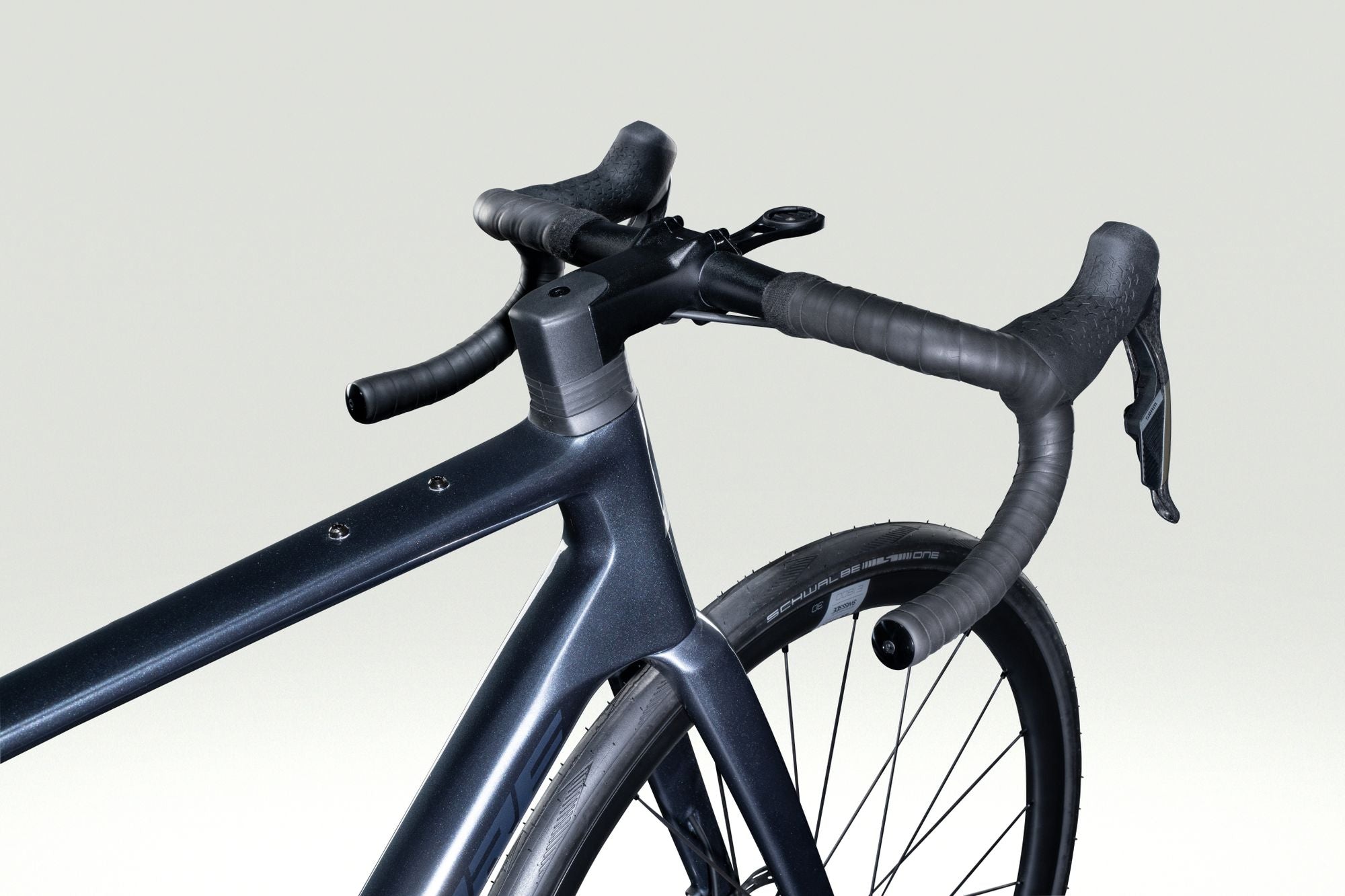

Handlebar: Lapierre Drop bar RA-125A, Drop: 120 mm, Reach: 70 mm, Flare: 10°
Pedal: VP 335 Clips&Strap
Saddle: Prologo MTB AKERO R PAS STEEL 150
Seatpost: Lapierre Non Suspension SP65.2, Dia. 27.2 mm, L: 350 mm
Wheelset
Wheelset
wheel set: DT Swiss E 1800 Spline, 30 mm, 12x100 mm, TL, CL
wheel set:
Rim:
Tyre: Schwalbe One Perf, RaceGuard, MicroSkin, TLE 32-622

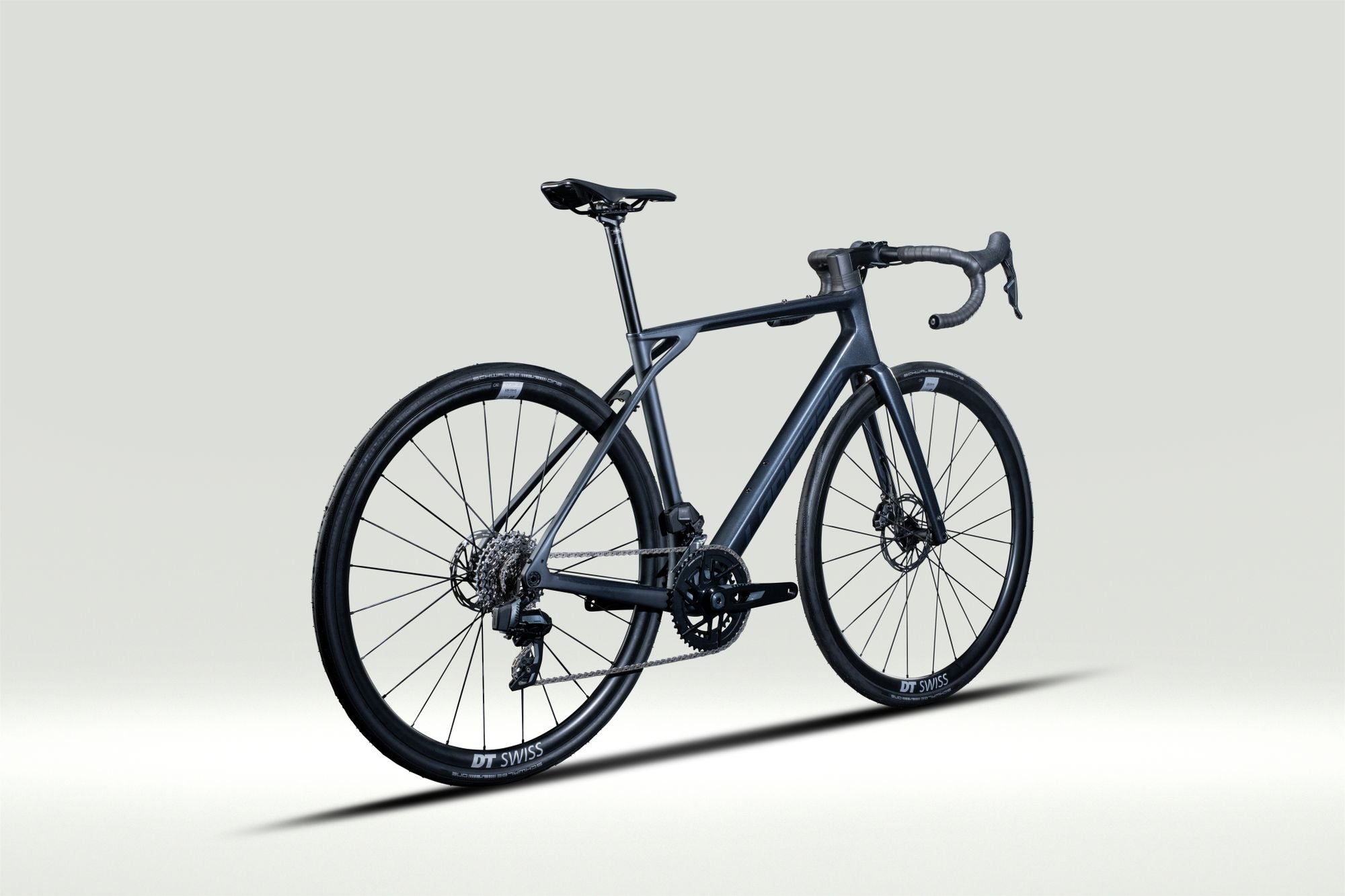

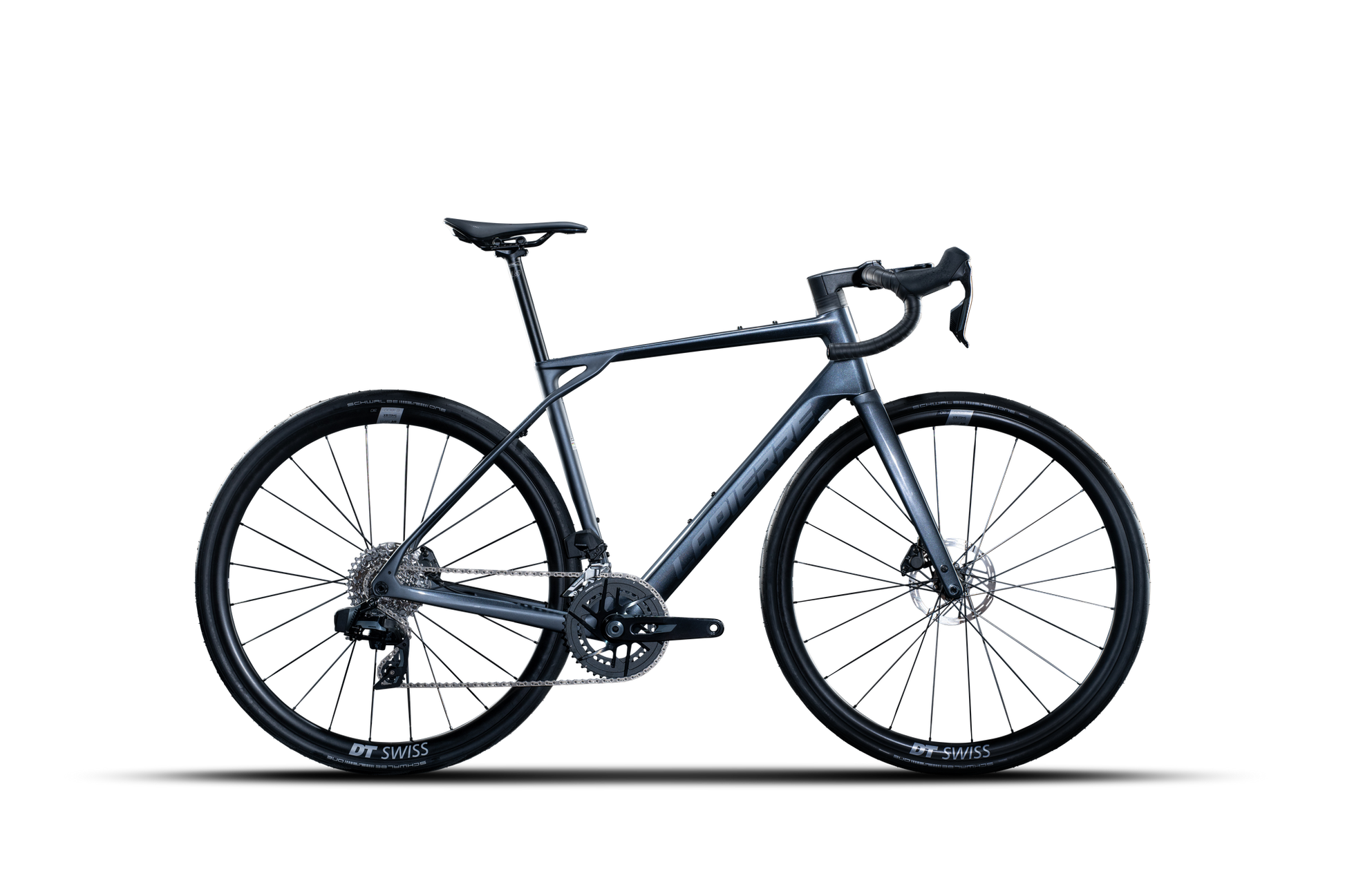

*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
