Prorace 20 SL
Prorace 20 SL
Description

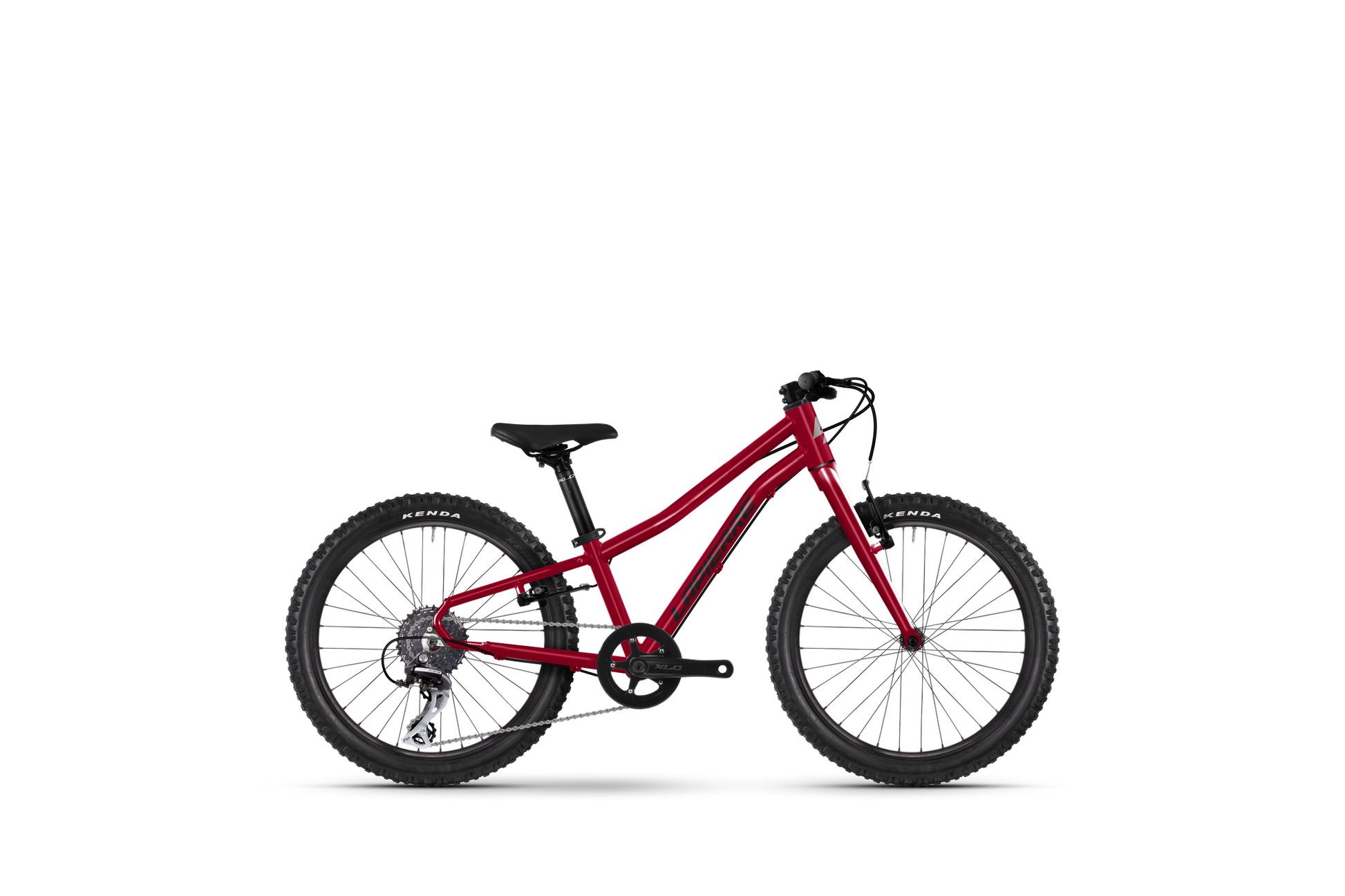

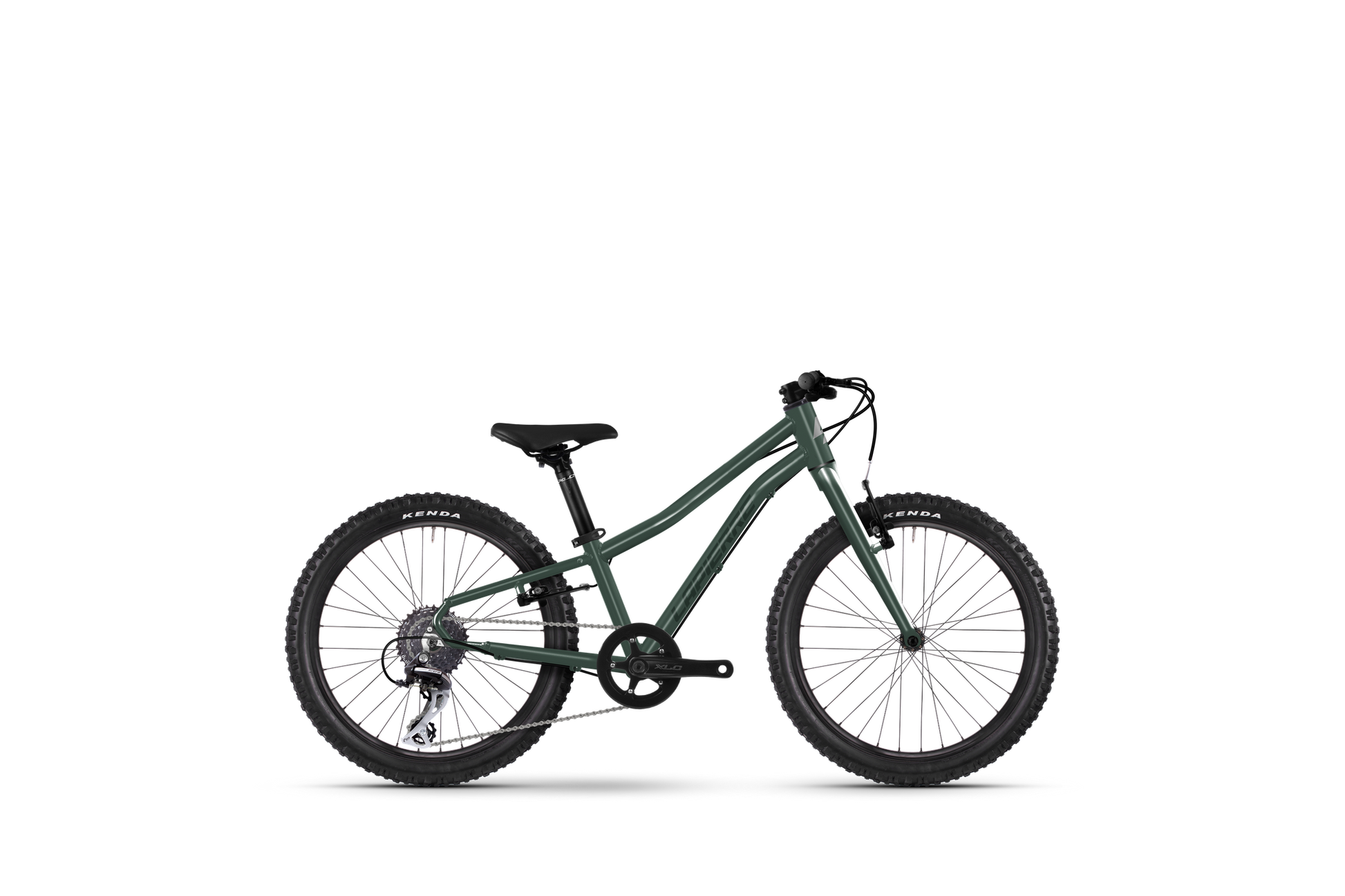

La Lapierre Prorace 20 SL è il modello perfetto per avvicinare i giovani ciclisti alle vere prestazioni della MTB. Il telaio leggero in alluminio e la geometria pensata appositamente per i bambini garantiscono maneggevolezza, stabilità e sicurezza fin dalla prima uscita. Dotata di trasmissione Shimano Acera a 8 velocità, guarnitura da 28T e cassetta da 11–34T, offre cambi di marcia fluidi e una gamma di rapporti versatile. Gli affidabili freni V-brake Tektro, le ruote da 20” con pneumatici Kenda e la forcella rigida garantiscono semplicità, resistenza ed efficienza: l’ideale per affinare le tue abilità in ogni avventura
Geometry
| Component | One Size |
|---|---|
| A: Seat tube length (mm) | 250 mm |
| B: Top Tube legth (mm) | 455 mm |
| C: Head tube length (mm) | 110 mm |
| D: Head Tube Angle | 68 degrees |
| E: Seat Tube Angle | 69 degrees |
| F: Chain stay length (mm) | 365 mm |
| G: Wheelbase (mm) | 843 mm |
| I: Reach (mm) | 280 mm |
| K: Bottom bracket drop (mm) | 45 mm |
Specifications
e-System
e-System
Battery:
Charger:
Display:
Motor:
Frame
Frame
Frame: HIGH Aluminium Mixed
Modular Rail System:
Maximum loadable weight: 60 kg
Drive
Drive
Cassette: Shimano Altus CS-HG31-8, HG
Chain: KMC Z-8.1 8s
Crankset: SAC38J-166NA Cranks 114 mm + Chainring
Derailleur Rear: Shimano Acera RD-M3020 8s
Gear: Shimano Derailleur
Number of gears: 8
Shifter Right: Shimano Triggershift SL-M315-8R, Rapidfire+
Suspension
Suspension
Front Fork: Lapierre Unicrown 20
Travel:
Shock:
Damper:
Rear Travel:
Components
Components
Front Brake: Tektro Mechanical V-brake C310 V-Brake
Rear Brake: Tektro Mechanical V-brake C310 V-Brake
Headlight: Spanninga Illico, 3V
Rear Light: Spanninga Presto , 1,5V
Brake light:
Grips: Velo VLG-1979-D
Handlebar: XLC Flat bar Junior, Dia. 25.4 mm, Rise: 25 mm, backsweep 7°
Pedal: VP 225 w. Reflector
Saddle: XLC Kids Kids Active D-922
Seatpost: XLC Non Suspension SP-DC1, Dia. 27.2 mm, L: 300 mm 300 mm
Wheelset
Wheelset
wheel set:
wheel set:
Rim: Shining Rims MT-66 Disc 23/406, 20H, 9,0 mm Valve
Tyre: Kenda K-1227X Booster 54-406
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
