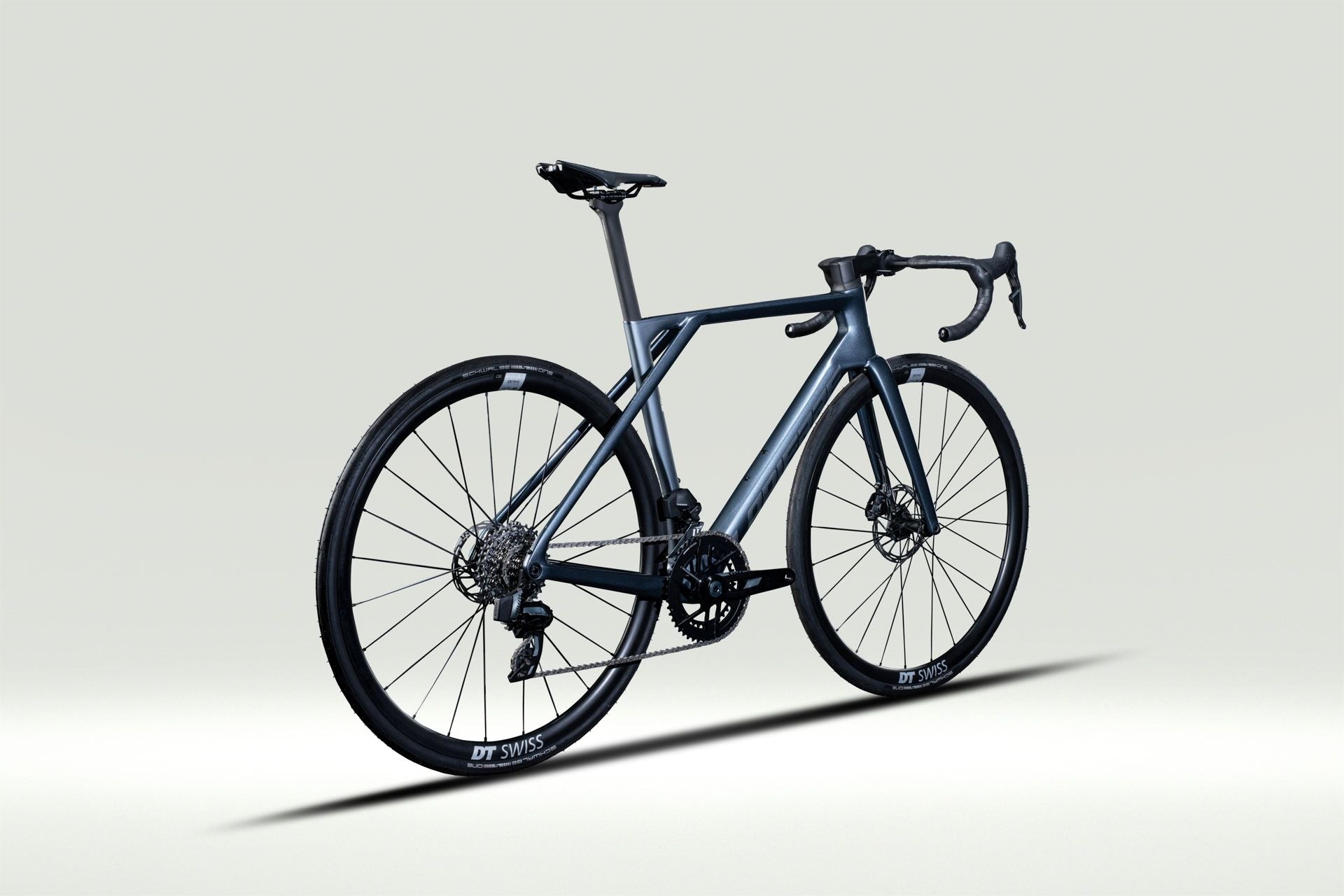

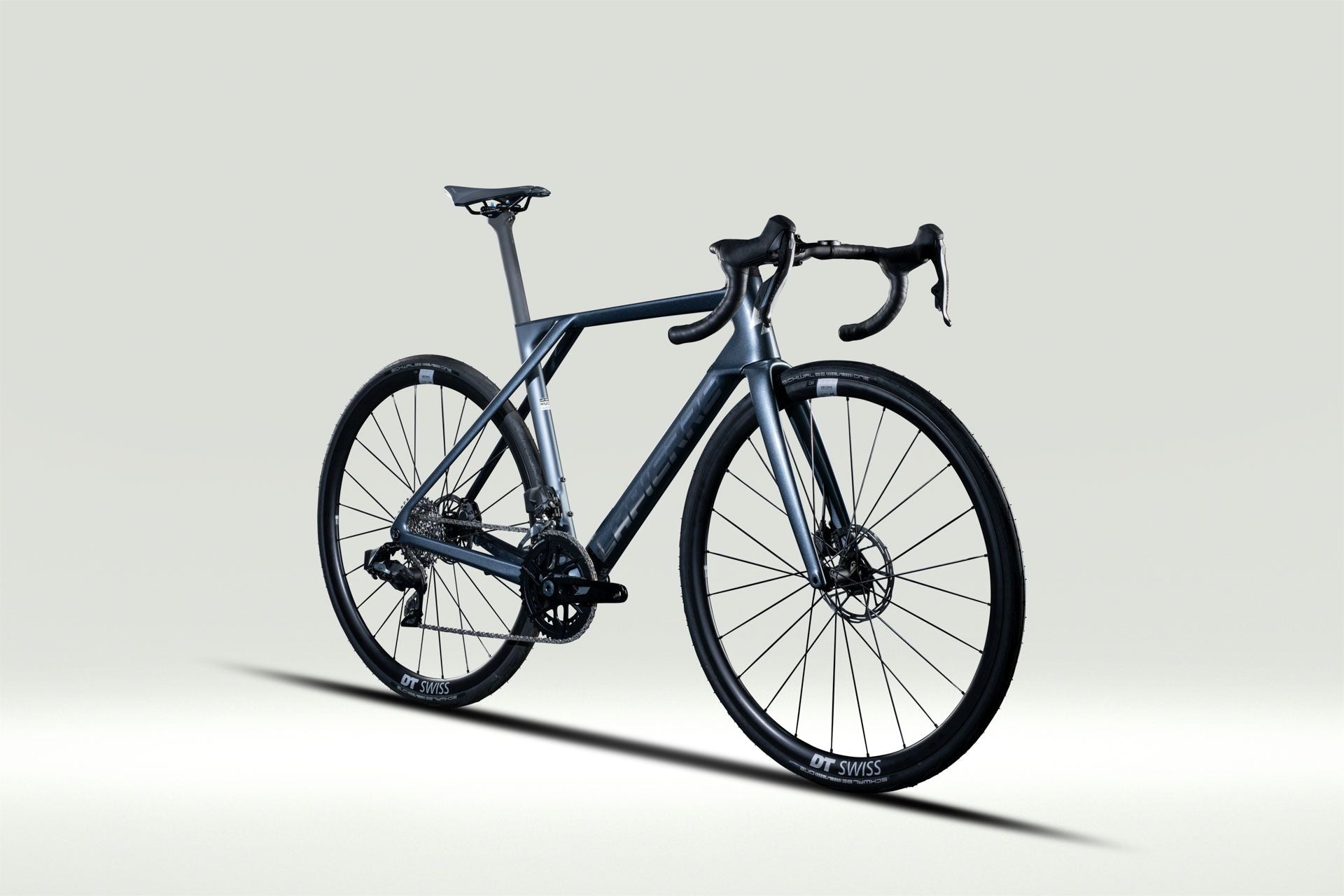

Xelius DRS 6.0 AXS
Xelius DRS 6.0 AXS
Description
La Lapierre Xelius DRS 6.0 está diseñada para ciclistas que buscan velocidad, eficiencia y un rendimiento competitivo en todas las disciplinas. Su ligero cuadro y horquilla de carbono UD SLI combinan un diseño aerodinámico con eficiencia en las subidas, lo que proporciona rigidez y capacidad de respuesta en cada esfuerzo. Equipada con una transmisión Shimano 105 Di2 2x12, frenos de disco hidráulicos y ruedas DT Swiss E1800 Spline, garantiza un cambio de marchas preciso y un control fiable. Con una configuración de 50/34T, un cassette de 11–34T y espacio para neumáticos de hasta 32 mm, equilibra la velocidad de competición con la versatilidad para el día a día.
Geometry
| Component | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| A: Seat tube length (mm) | 440 mm | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| B: Top Tube legth (mm) | 520 mm | 531 mm | 547 mm | 568 mm | 587 mm | 605 mm |
| C: Head tube length (mm) | 105 mm | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| D: Head Tube Angle | 72 degrees | 72 degrees | 73 degrees | 73 degrees | 74 degrees | 74 degrees |
| E: Seat Tube Angle | 74 degrees | 74 degrees | 74 degrees | 74 degrees | 74 degrees | 74 degrees |
| F: Chain stay length (mm) | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| G: Wheelbase (mm) | 969 mm | 981 mm | 989 mm | 1005 mm | 1014 mm | 1032 mm |
| H: Stack (mm) | 501 mm | 516 mm | 538 mm | 557 mm | 580 mm | 599 mm |
| I: Reach (mm) | 376 mm | 383 mm | 393 mm | 403 mm | 415 mm | 428 mm |
| K: Bottom bracket drop (mm) | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
Specifications
e-System
e-System
Battery:
Charger:
Display:
Motor:
Frame
Frame
Frame: HIGH Carbon Uni
Modular Rail System:
Maximum loadable weight: 110 kg
Drive
Drive

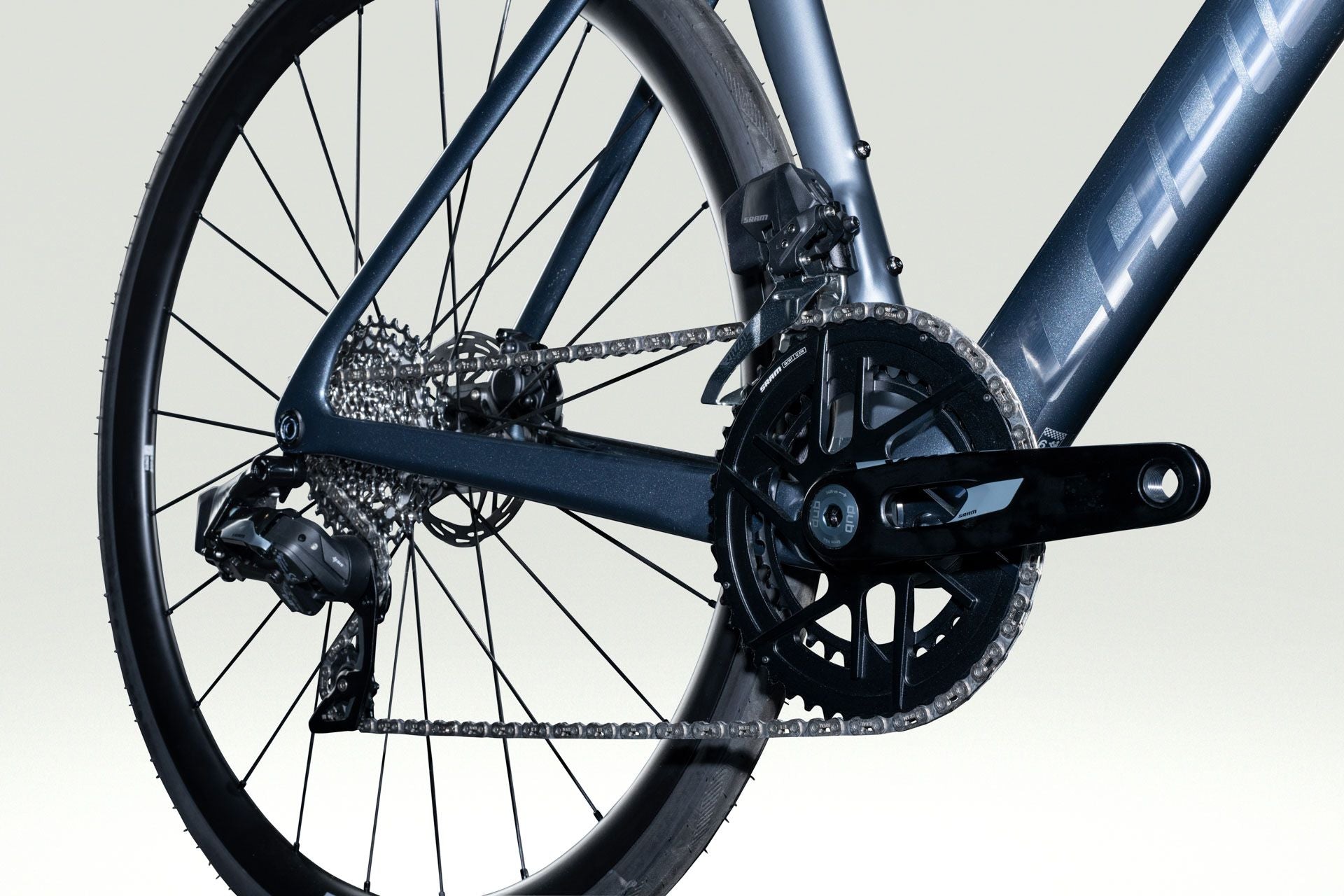

Cassette: Sram XG-1250 D1, XDR
Chain: Sram Rival E1 12s
Crankset: FC Rival E1 DUB, DM
Derailleur Rear: Sram Rival AXS E1 MAX 12s
Gear: Sram Derailleur
Number of gears: 24

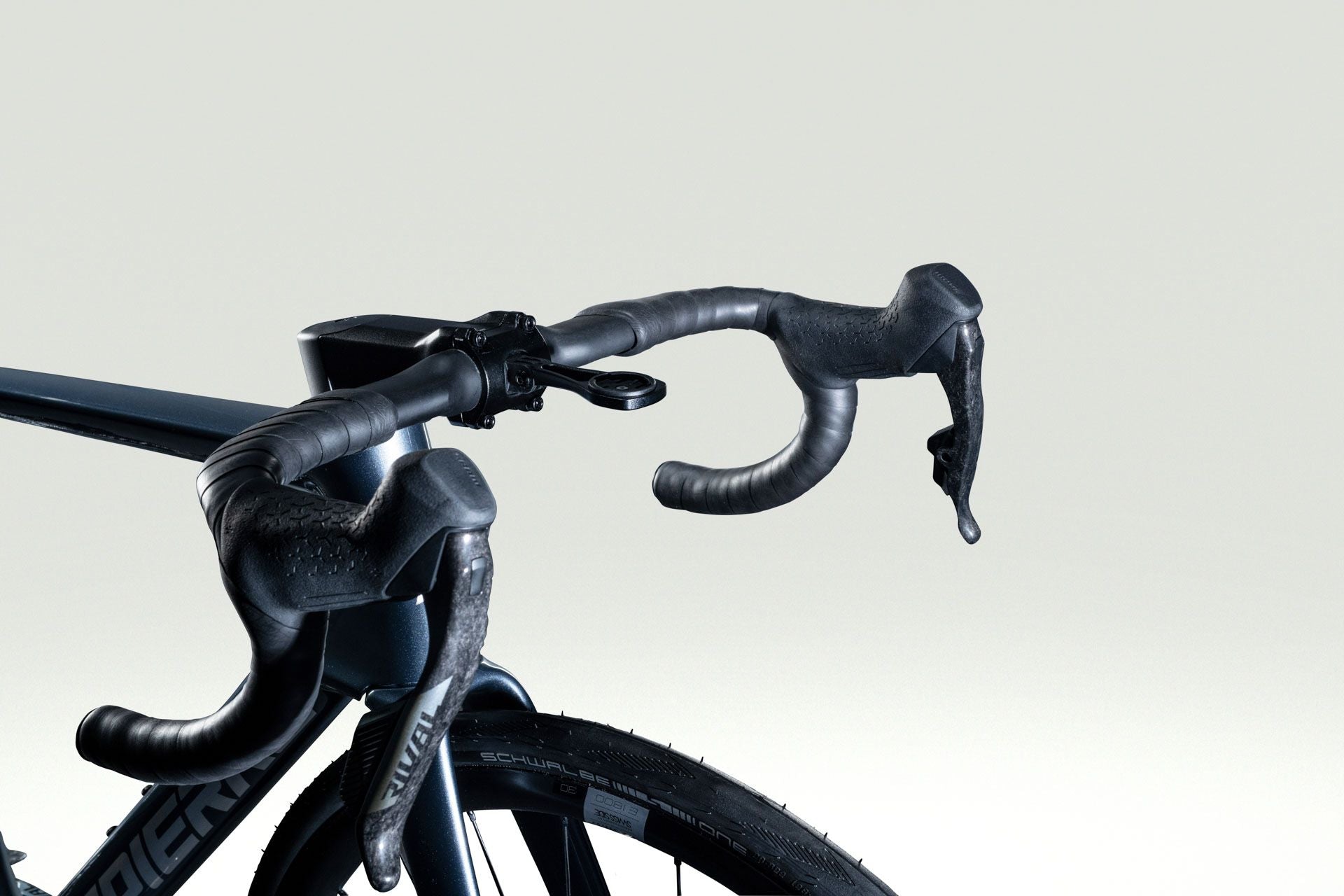

Shifter Right: Sram Shift-brake lever Rival AXS E1 Shift-Brake-Lever
Suspension
Suspension

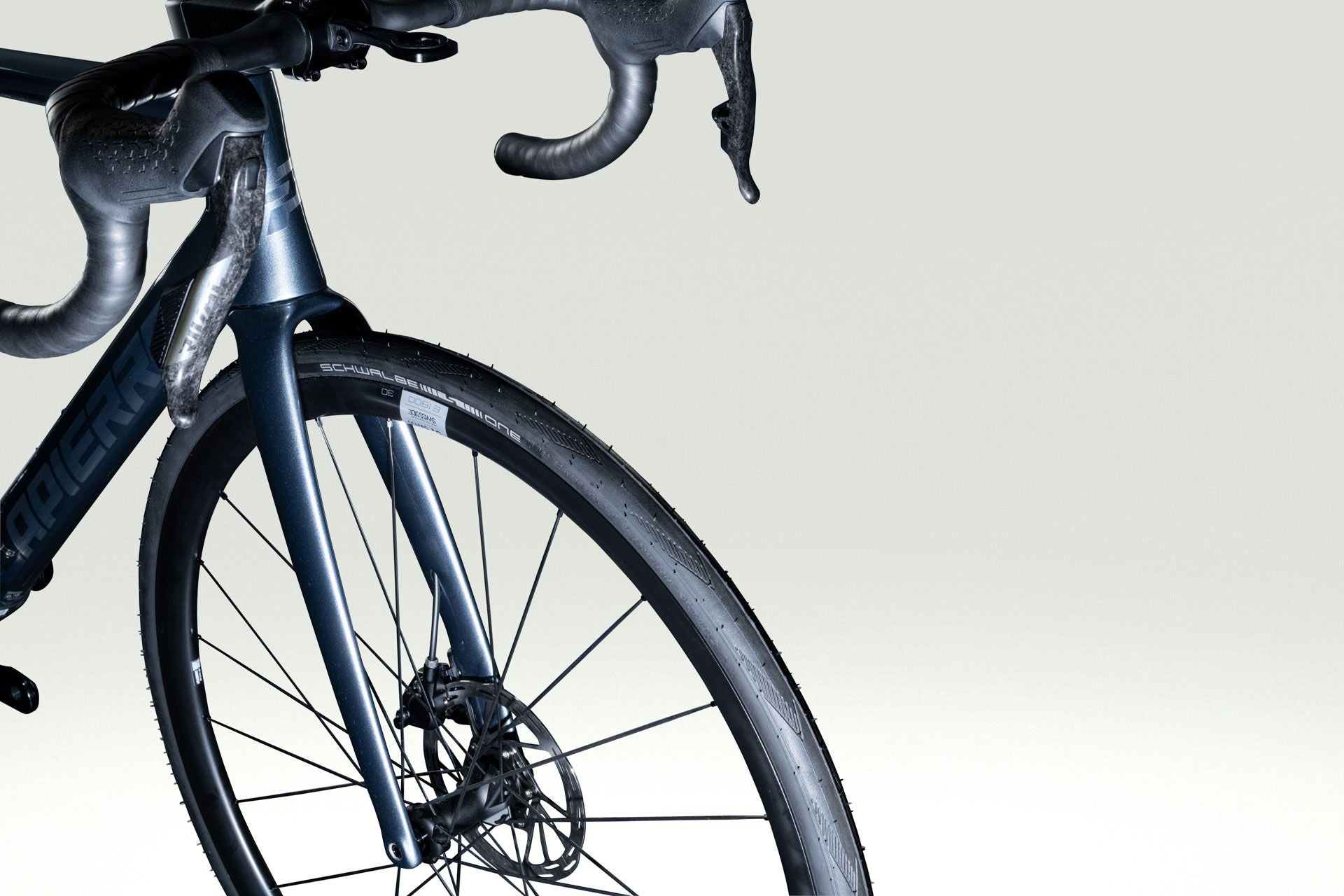

Front Fork: Lapierre Rigid Carbon Fork Xelius DRS 6.0 AXS
Travel:
Shock:
Damper:
Rear Travel:
Components
Components
Front Brake: Sram Hydraulic Disc brake Rival AXS E1 SJD, 2 pistons, 160 mm
Rear Brake: Sram Hydraulic Disc brake Rival AXS E1 SJD, 2 pistons, 140 mm
Headlight:
Rear Light:
Brake light:
Grips: Velo

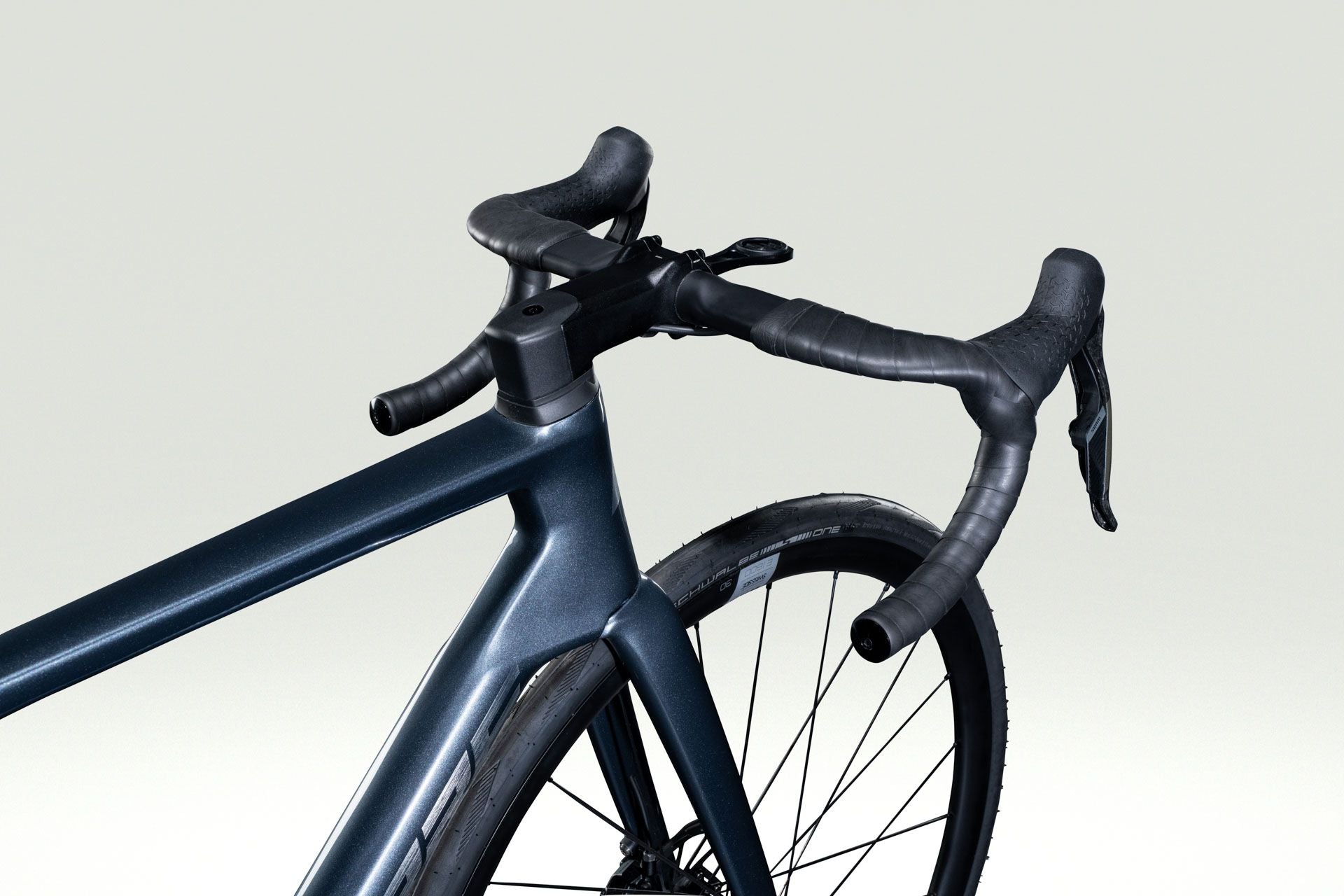

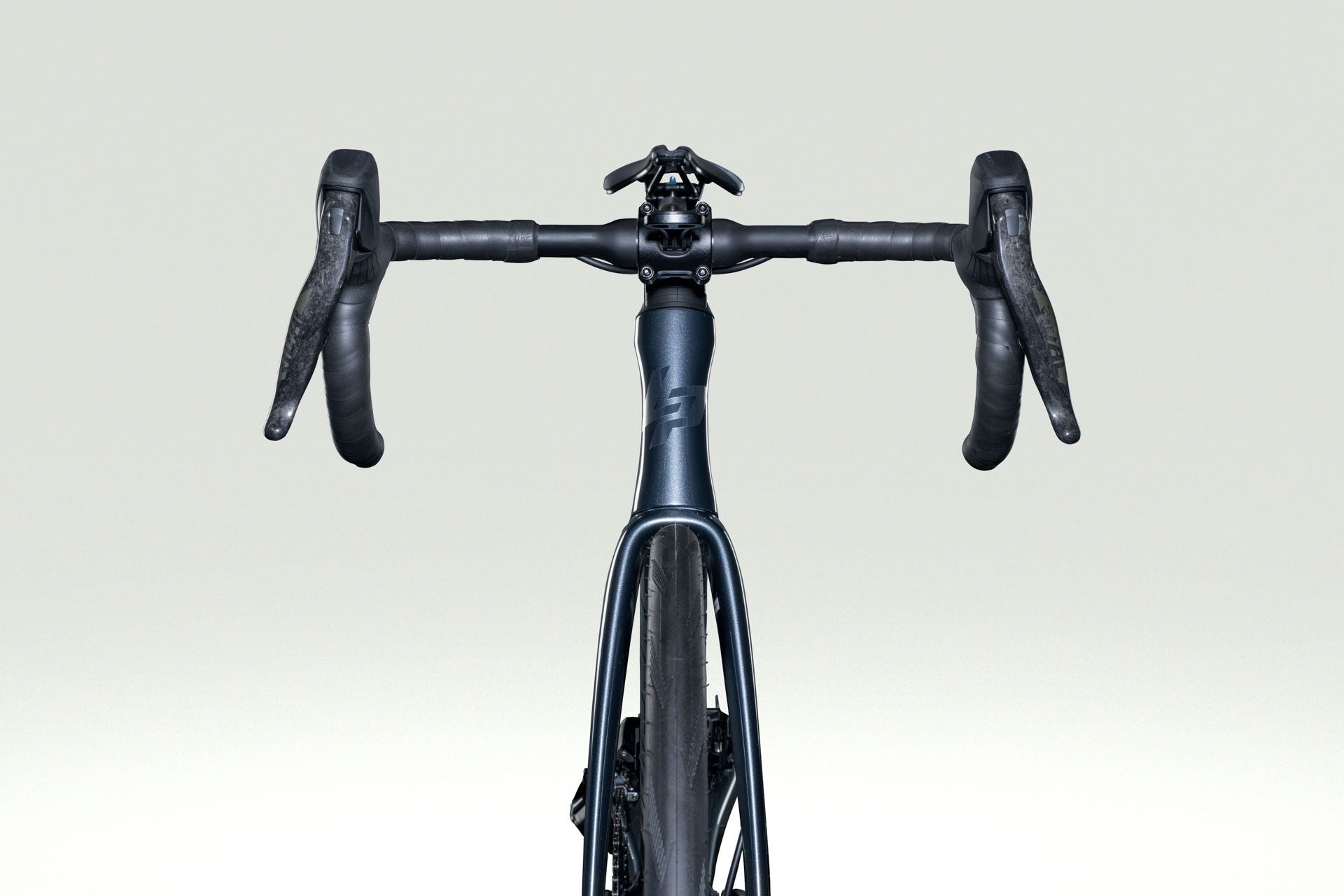

Handlebar: Lapierre Drop bar RB131AHS2 Carbon Road Bar, Flare 5°
Pedal: VP 335 Clips&Strap
Saddle: Prologo MTB Dimension Steel 143

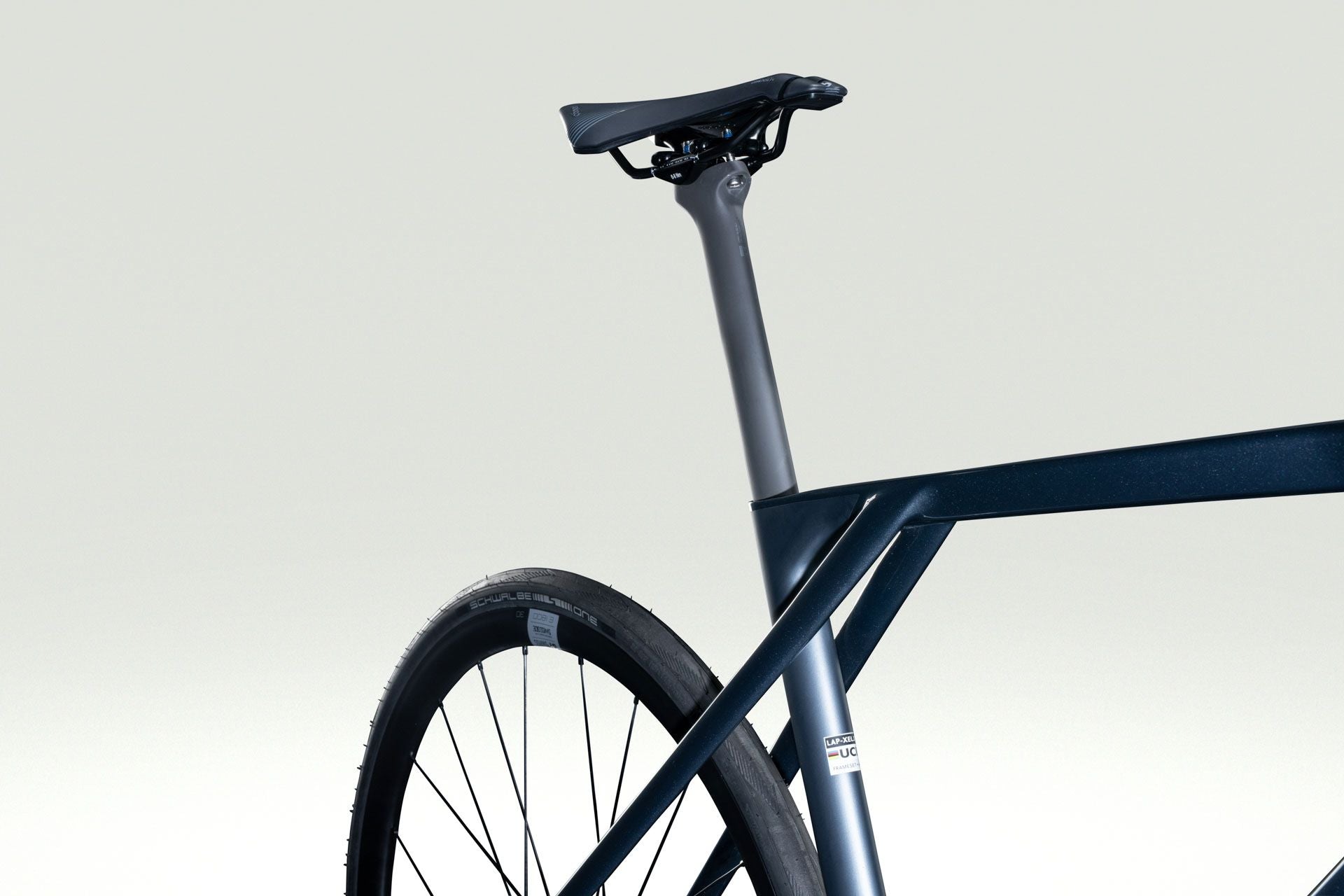

Seatpost: Lapierre Non Suspension Xelius DRS Aero, L: 350 mm, 0 mm offset
Wheelset
Wheelset
wheel set: DT Swiss E 1800 Spline, 30 mm, 12x100 mm, TL, CL
wheel set:
Rim:
Tyre: Schwalbe One Performance, RaceGuard, MicroSkin, TLE 28-622
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
