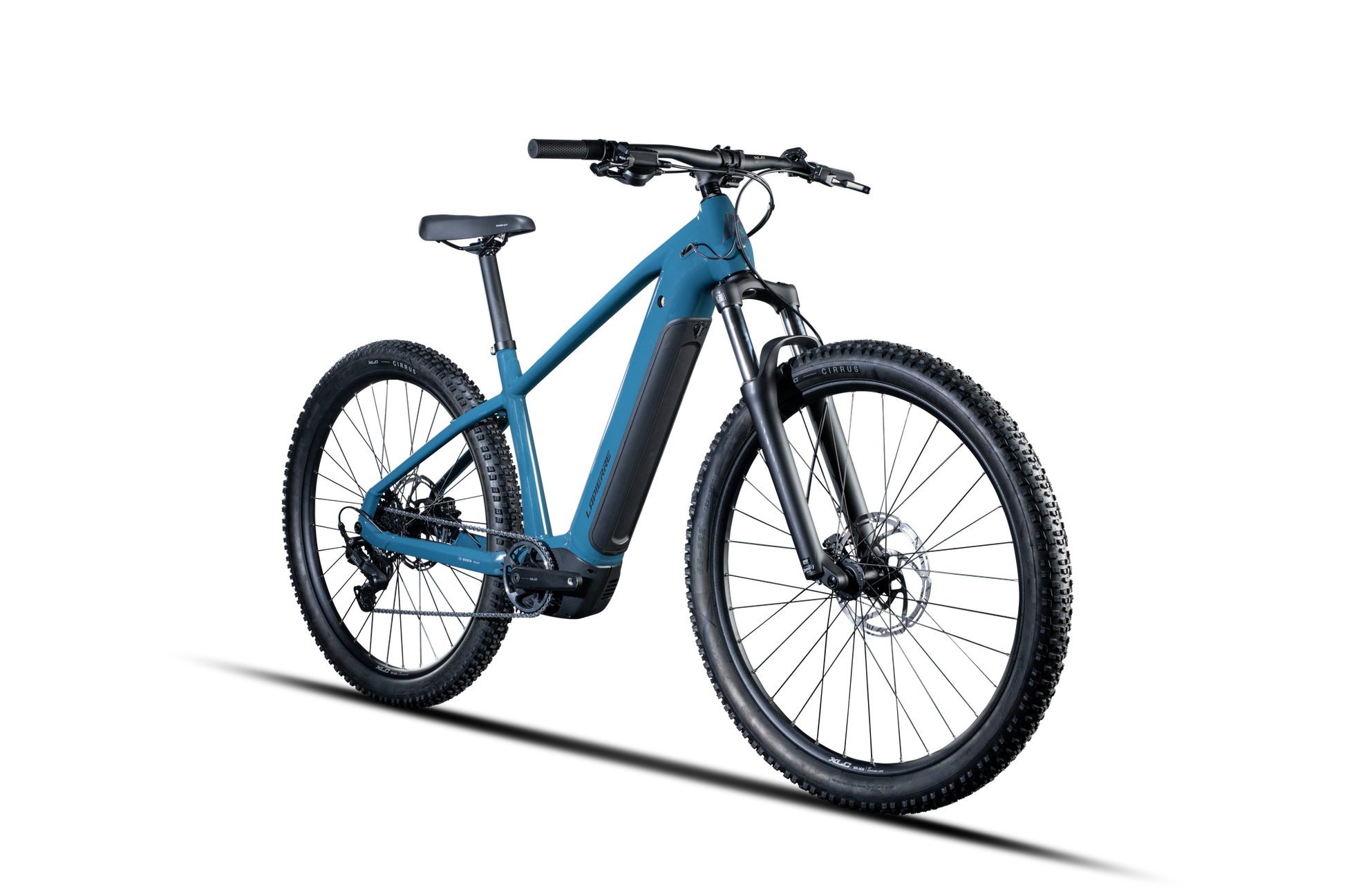

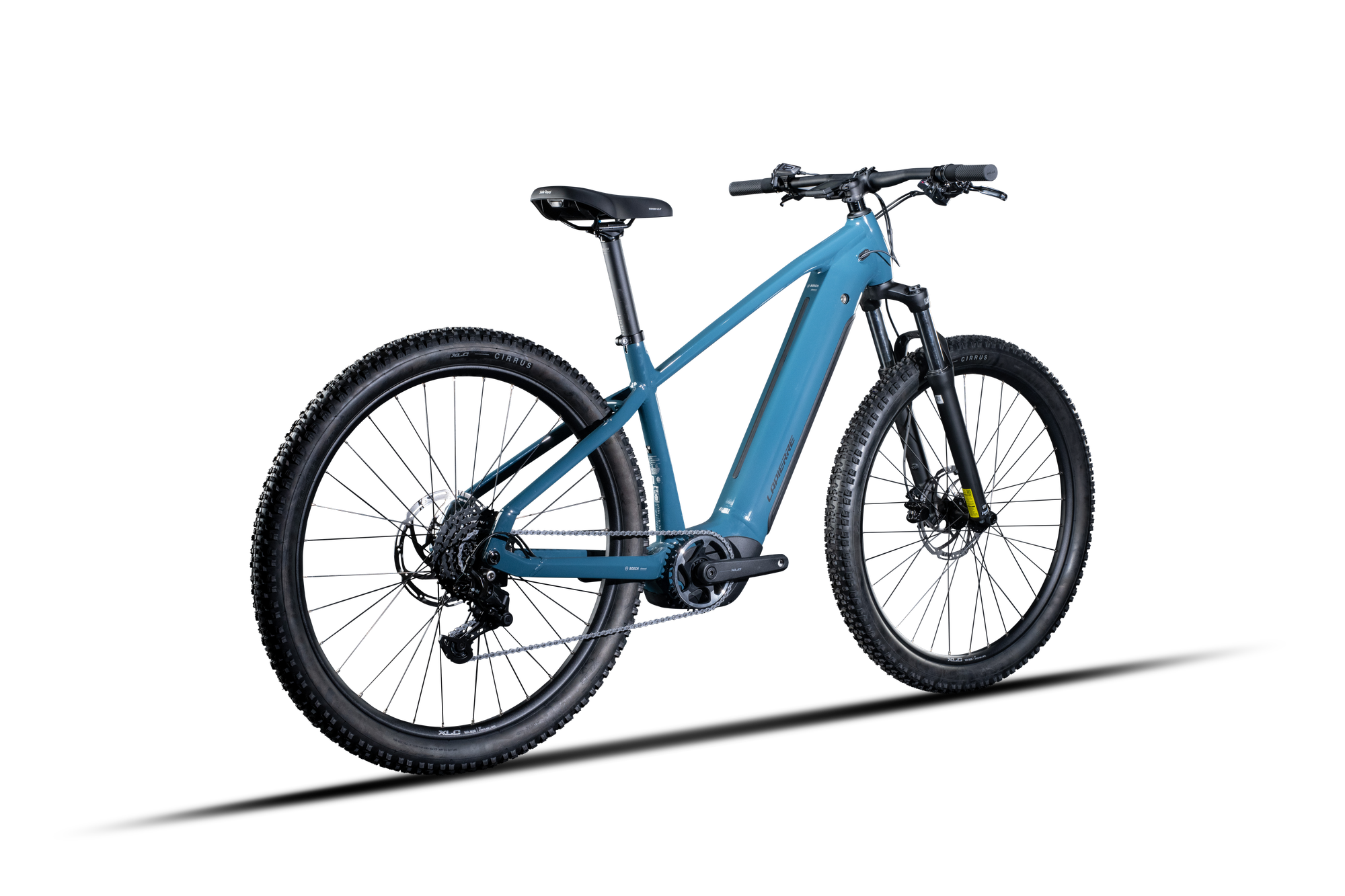

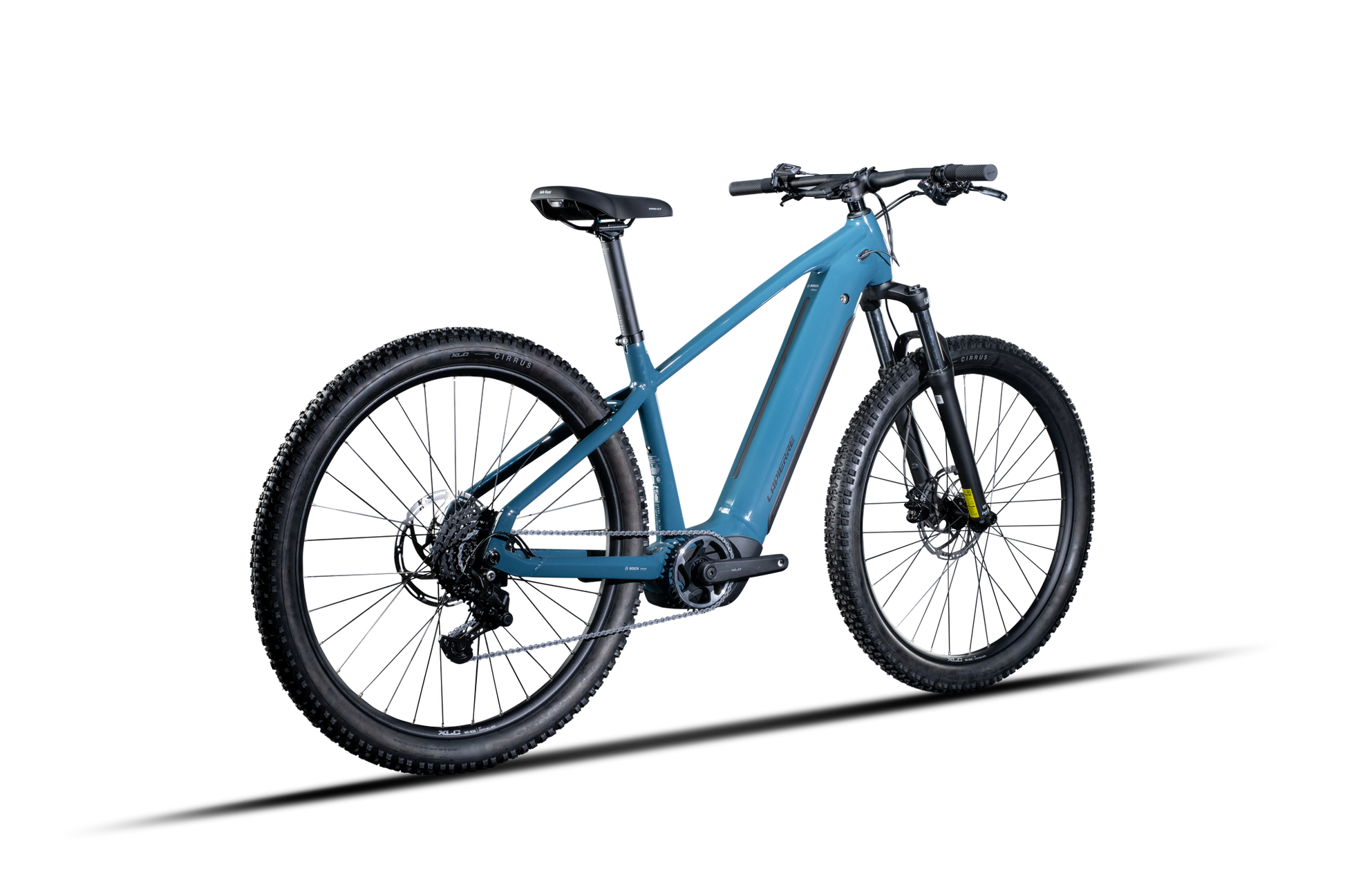

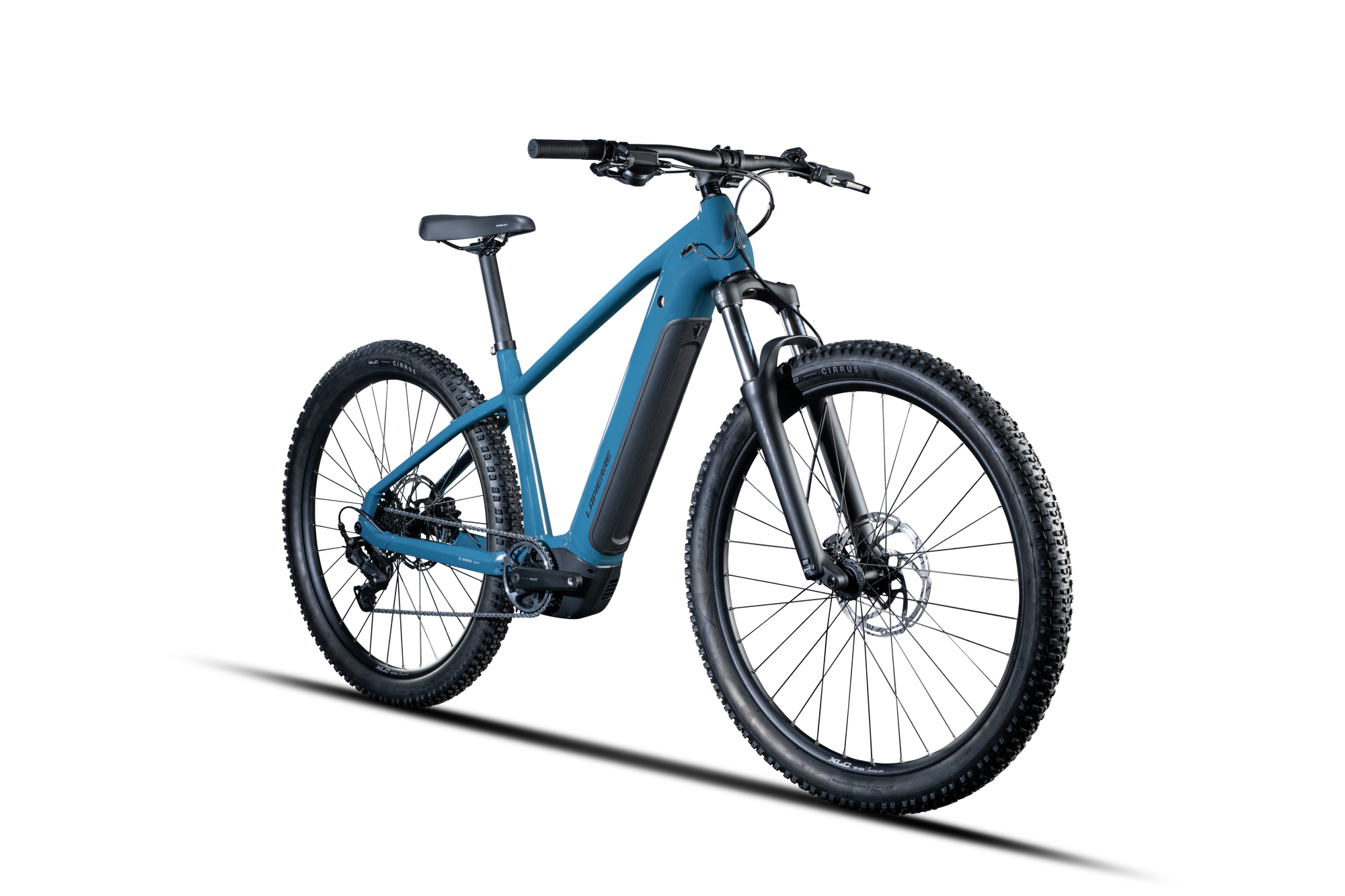

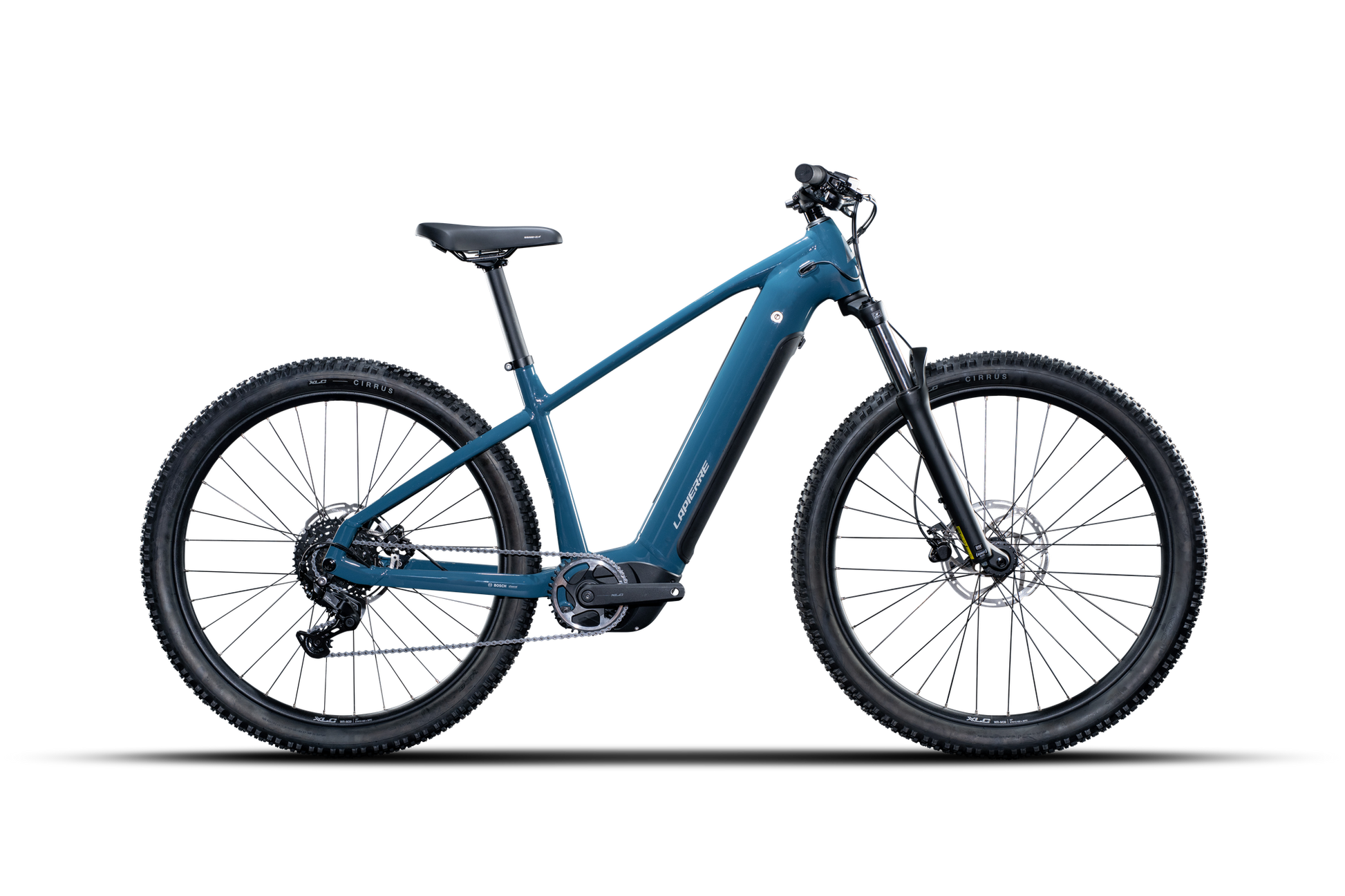

Overvolt HT 5.6
Overvolt HT 5.6
Description
Specifications
e-System
e-System
Battery: Bosch Powertube 600 Wh
Charger: Bosch Charger 4A, 230V
Display: Bosch Intuvia 100 + LED Remote
Motor: Bosch Performance Line PX
Frame
Frame
Frame: HIGH Aluminium Gents
Modular Rail System:
Maximum loadable weight: 120 kg
Drive
Drive
Cassette: Shimano CUES CS-LG300-9, HG
Chain: KMC eGlide with EPT Coating 9-11s

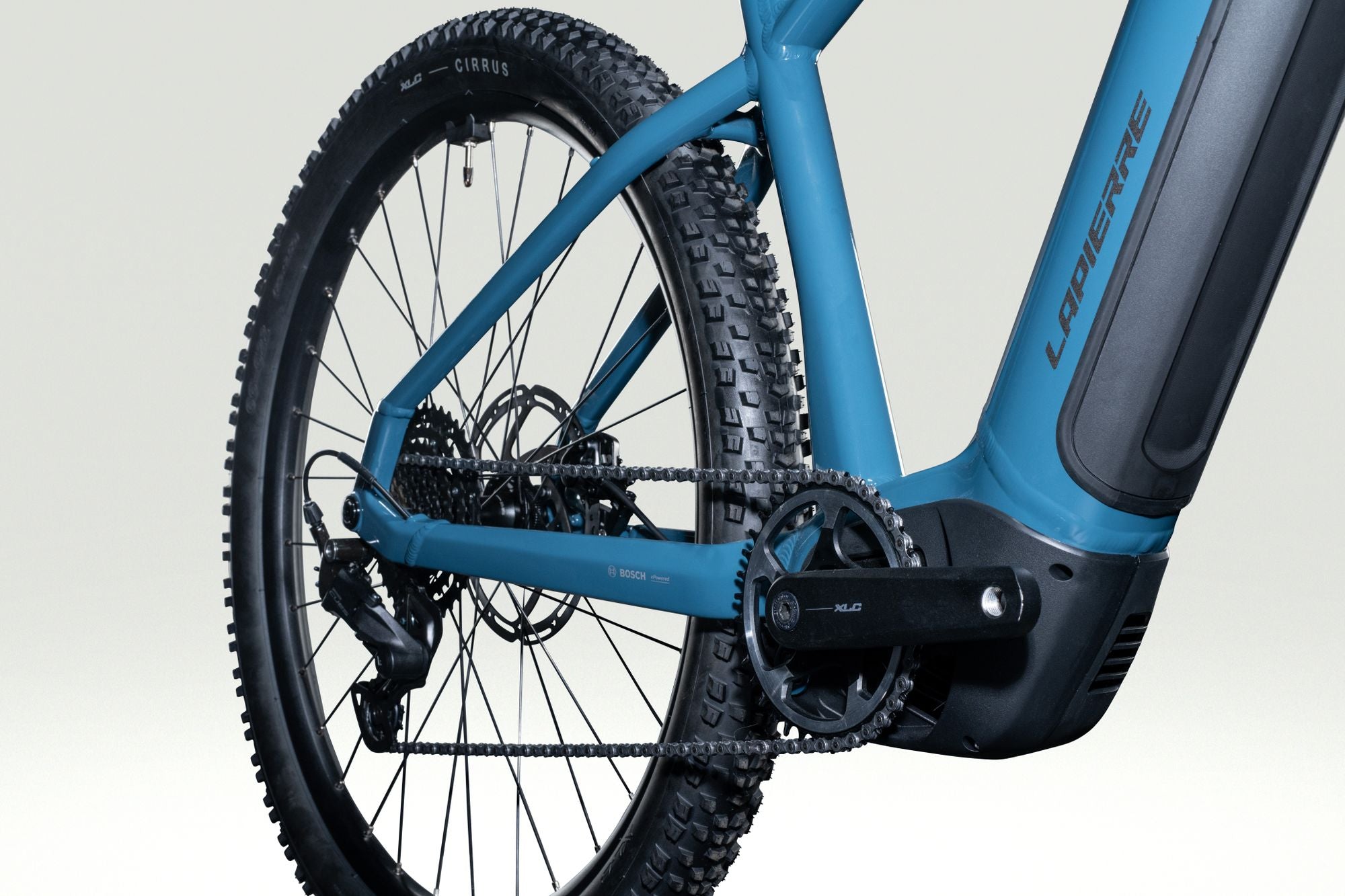

Crankset: Crius ISIS Cranks + MIRANDA CR Spiderless BDU38

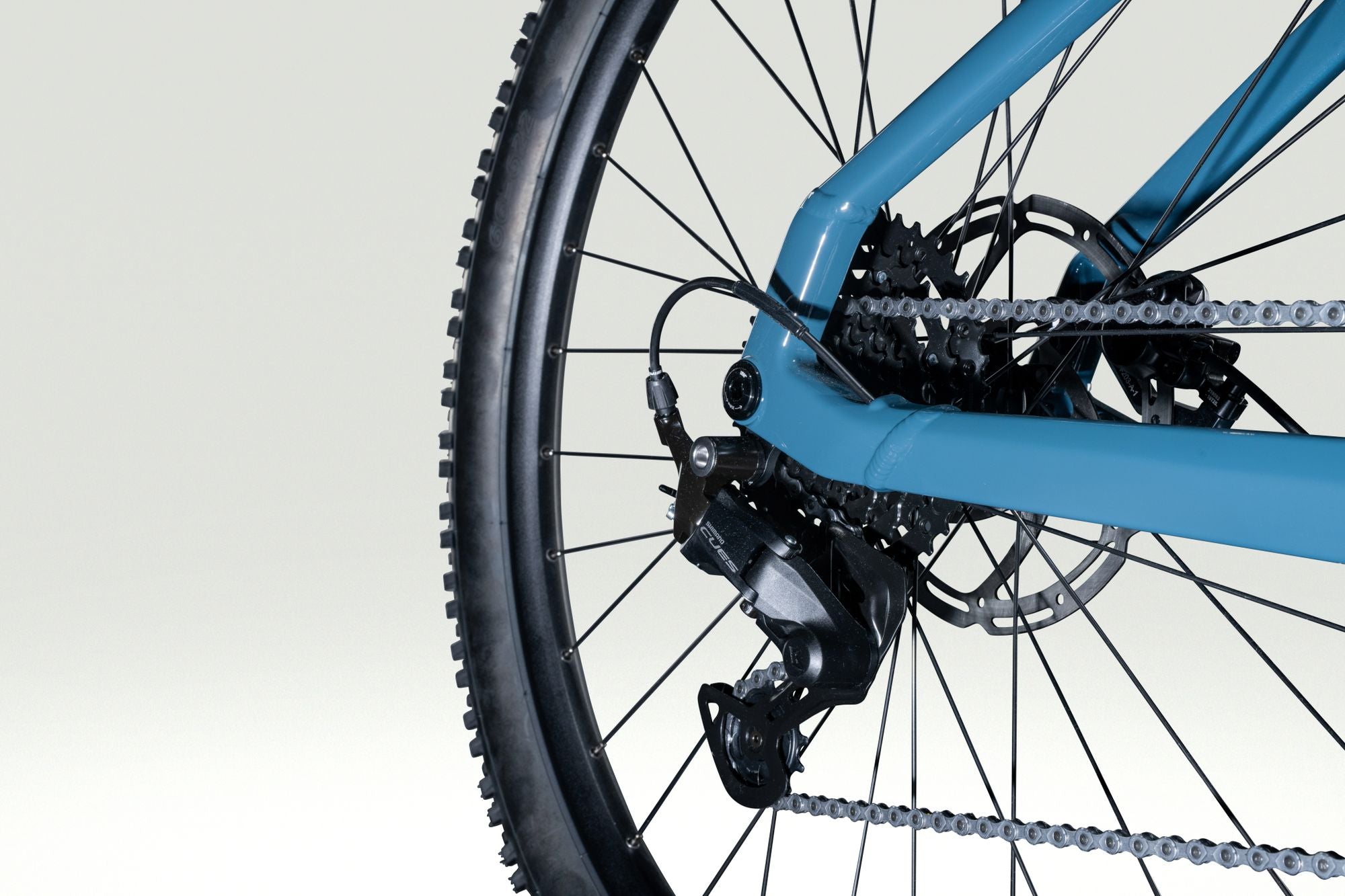

Derailleur Rear: Shimano CUES RD-U4000-9s, Shadow
Gear: Shimano Derailleur
Number of gears: 9
Shifter Right: Shimano Triggershift CUES SL-U4000-9R, Rapidfire+
Suspension
Suspension

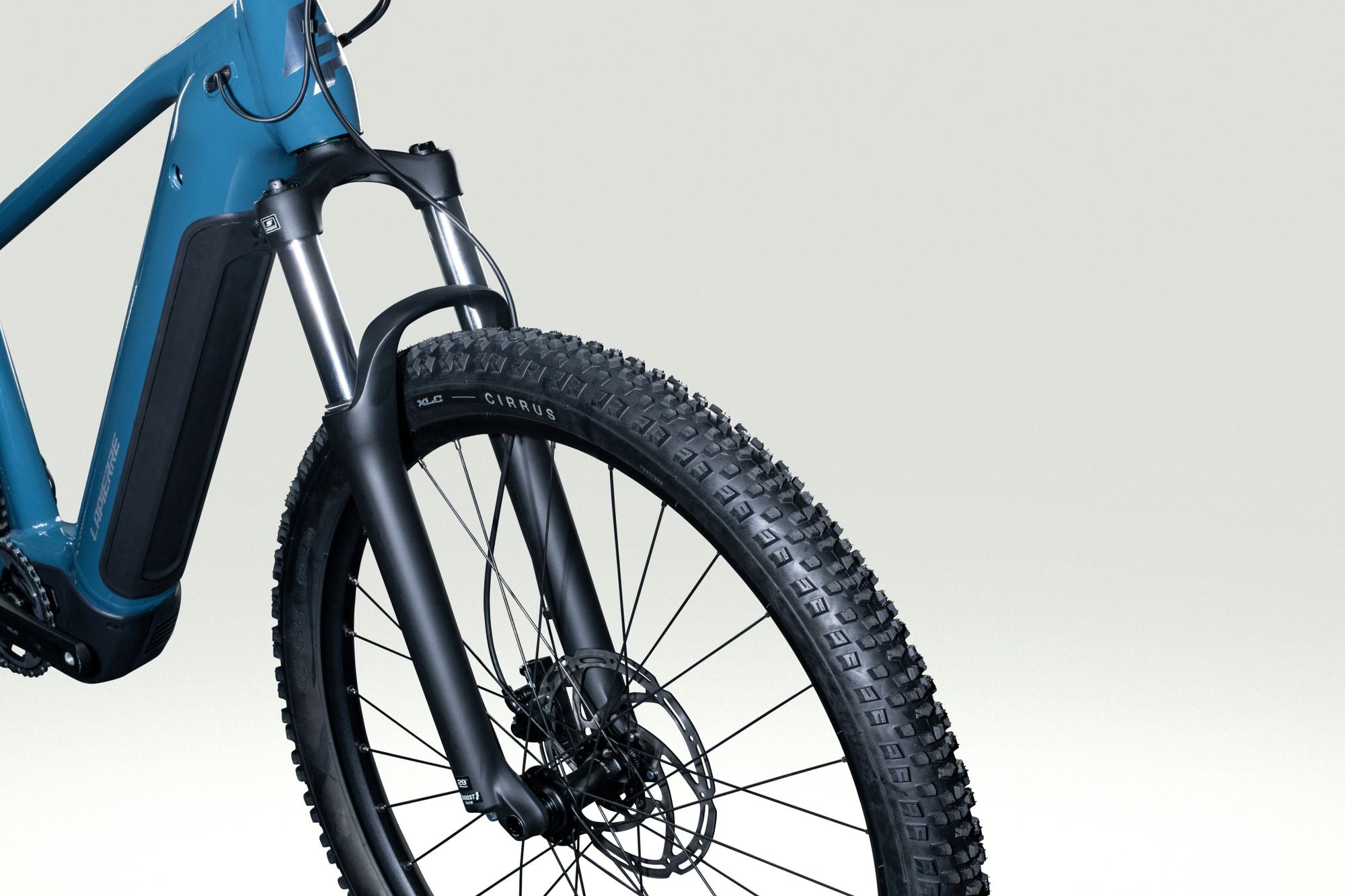

Front Fork: Suntour SF25-XCR34 Boost DS, 120 mm
Rear Travel:
Shock:
Travel: 120 mm
Components
Components
Front Brake: Tektro Hydraulic Disc brake HD-M280, 2 pistons, resin pad, 203 mm
Rear Brake: Tektro Hydraulic Disc brake HD-M280, 2 pistons, resin pad, 203 mm
Headlight:
Rear Light:
Brake light:
Grips: Velo VLG-1867-11D2 MTB Grip

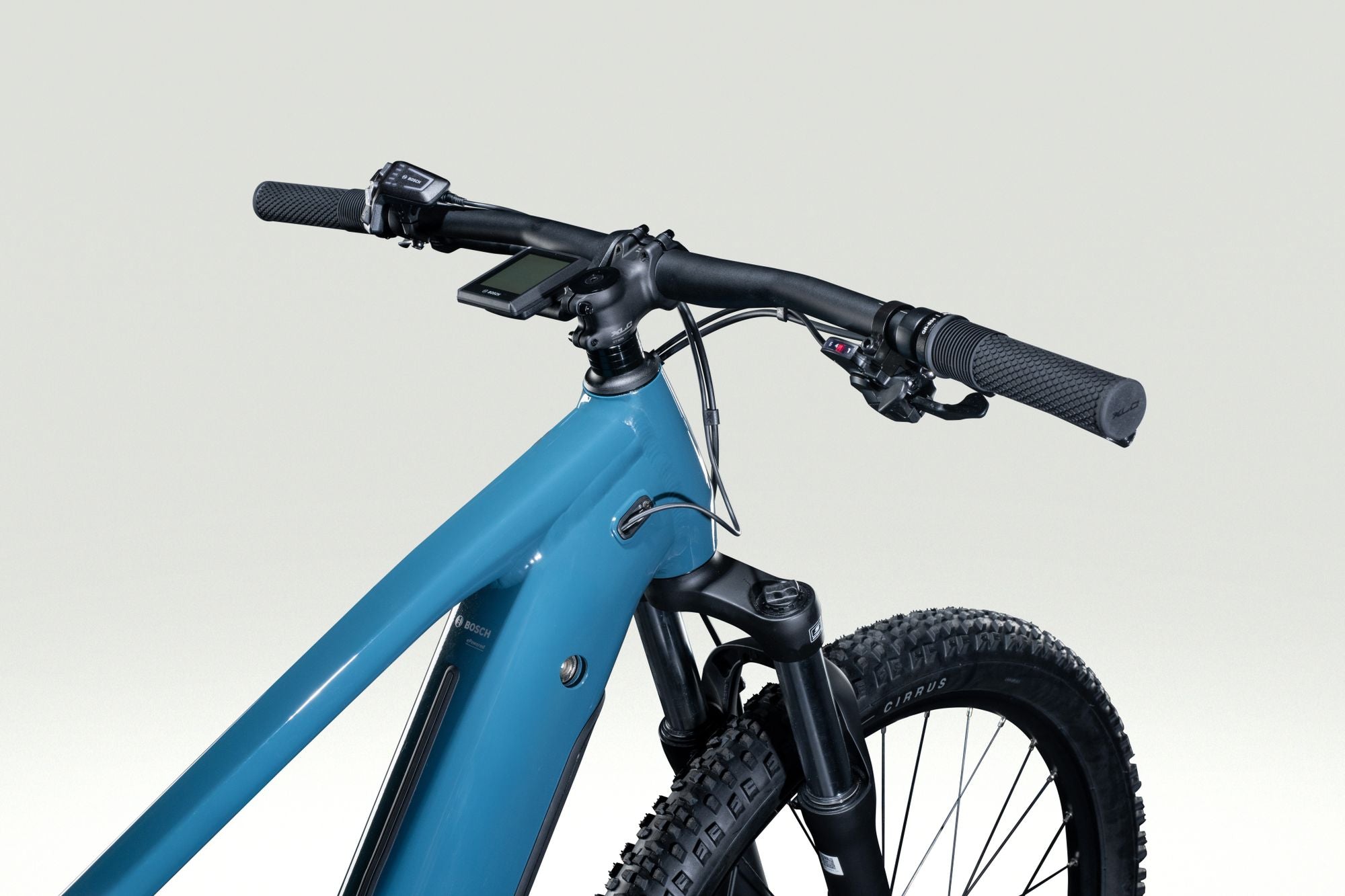

Handlebar: XLC Trekking HB-M30, Dia. 31.8 mm, backsweep 9°
Pedal: XLC PD-M29 Flat w. Reflector

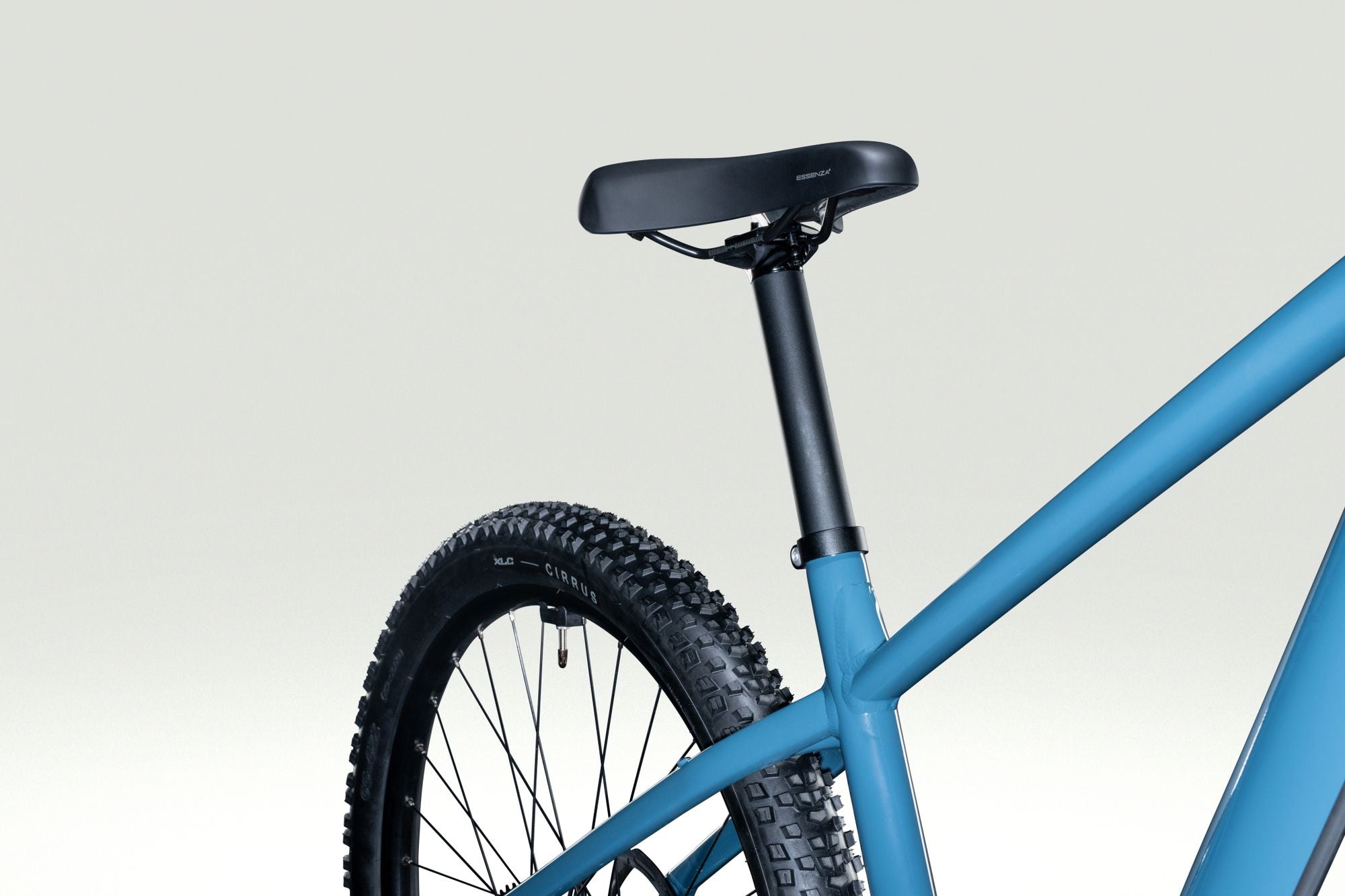

Saddle: XLC MTB Sport Comfort SA-S11 Steel Rail 155 mm
Seatpost: XLC Non Suspension SP-R30, Dia. 34.9 mm, L: 350 mm 350 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: XLC WR-M37 (S) WR-M39 (M-XL) Disc 30/622, 32H, 6,5 mm Valve
Tyre: XLC VT-M30 Cirrus 66-584
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
