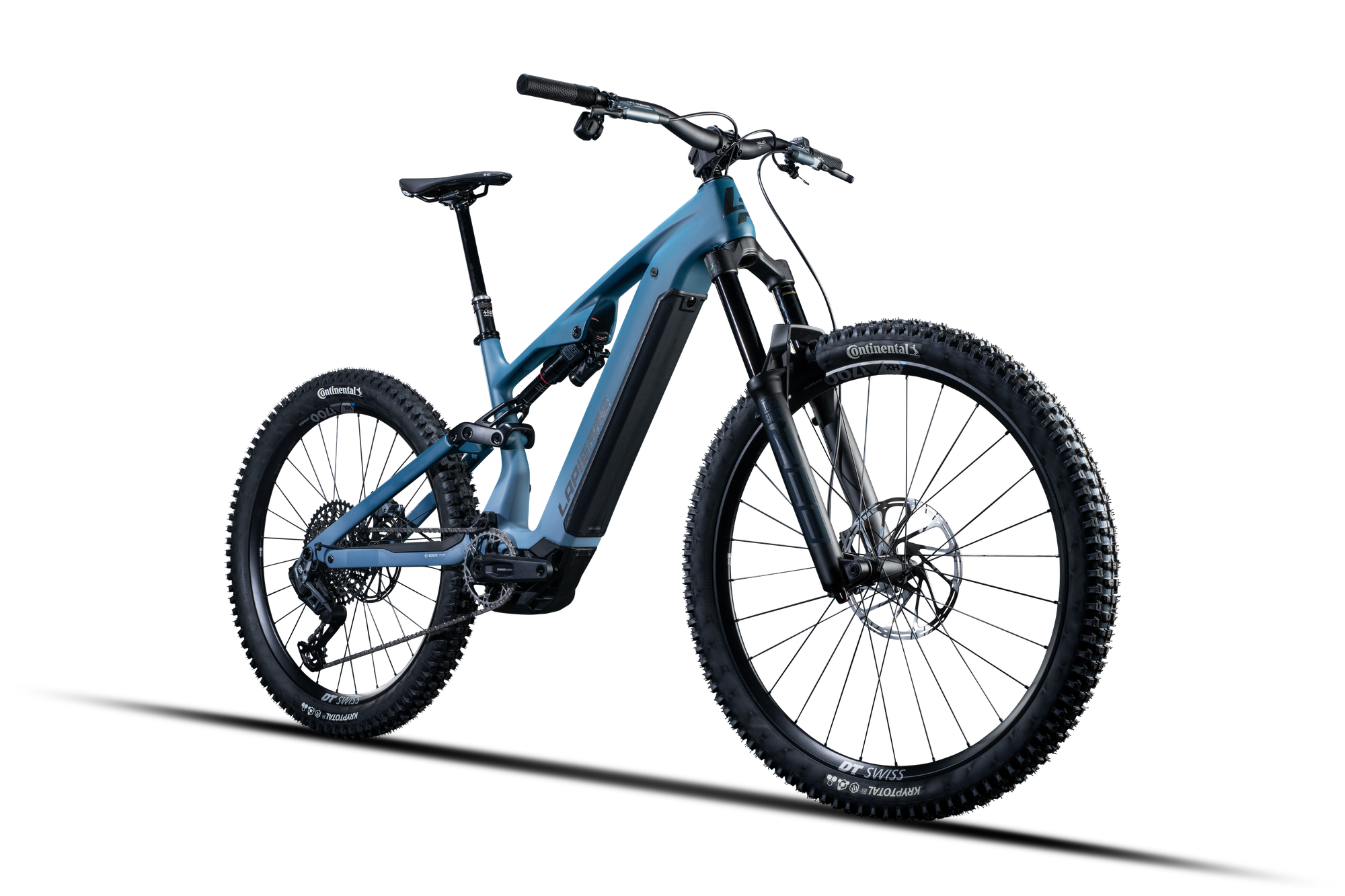

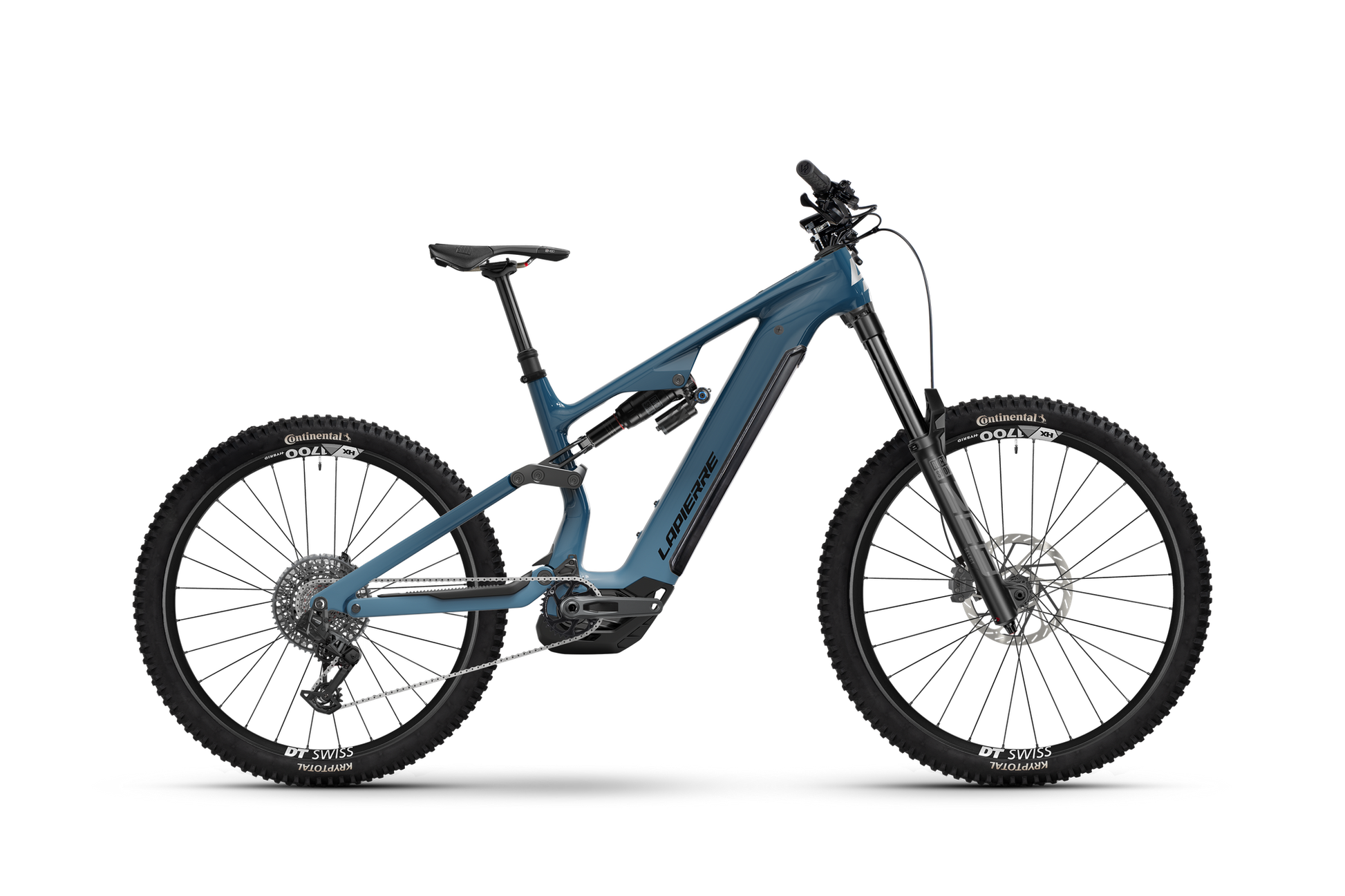

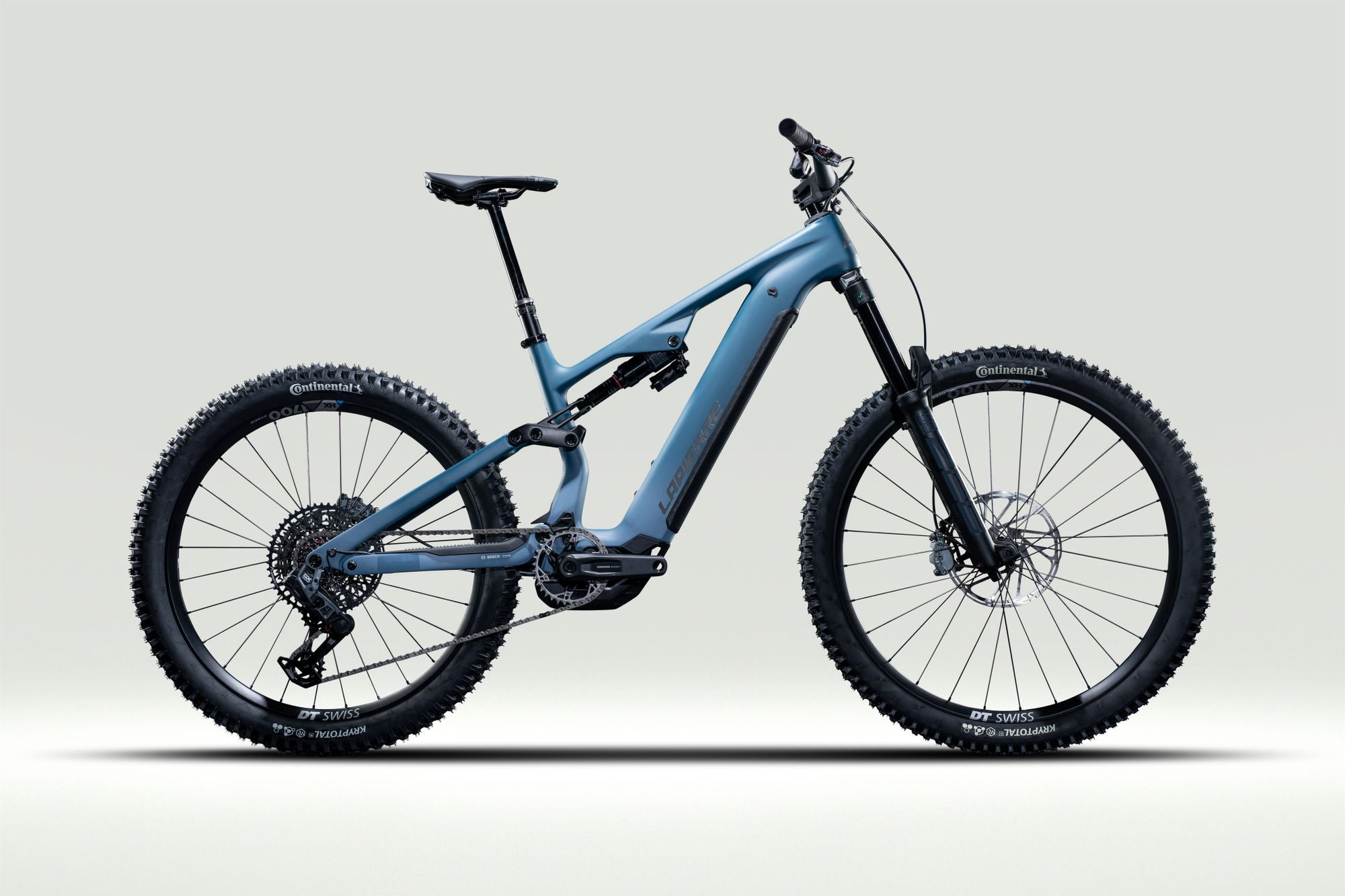

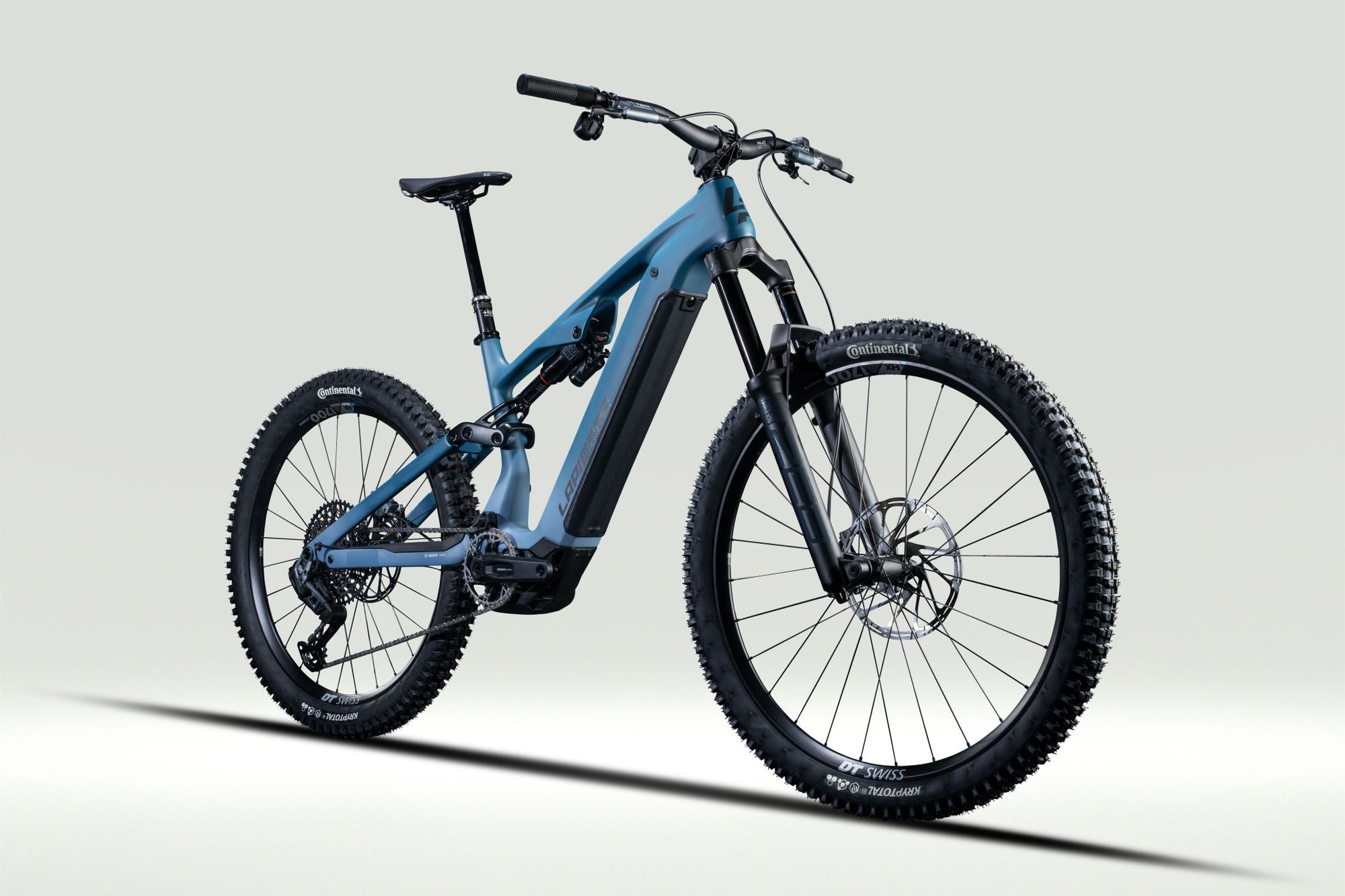

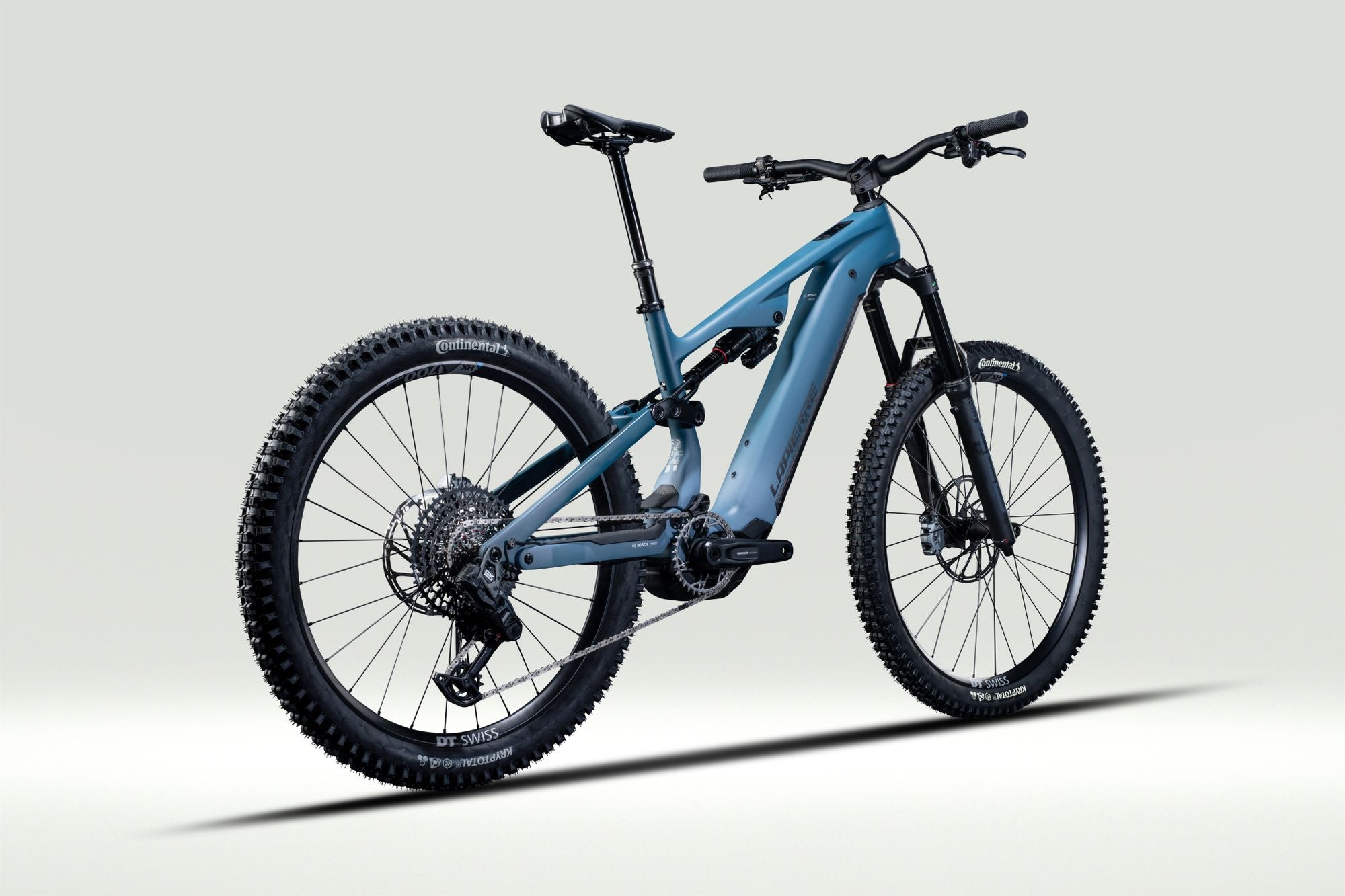

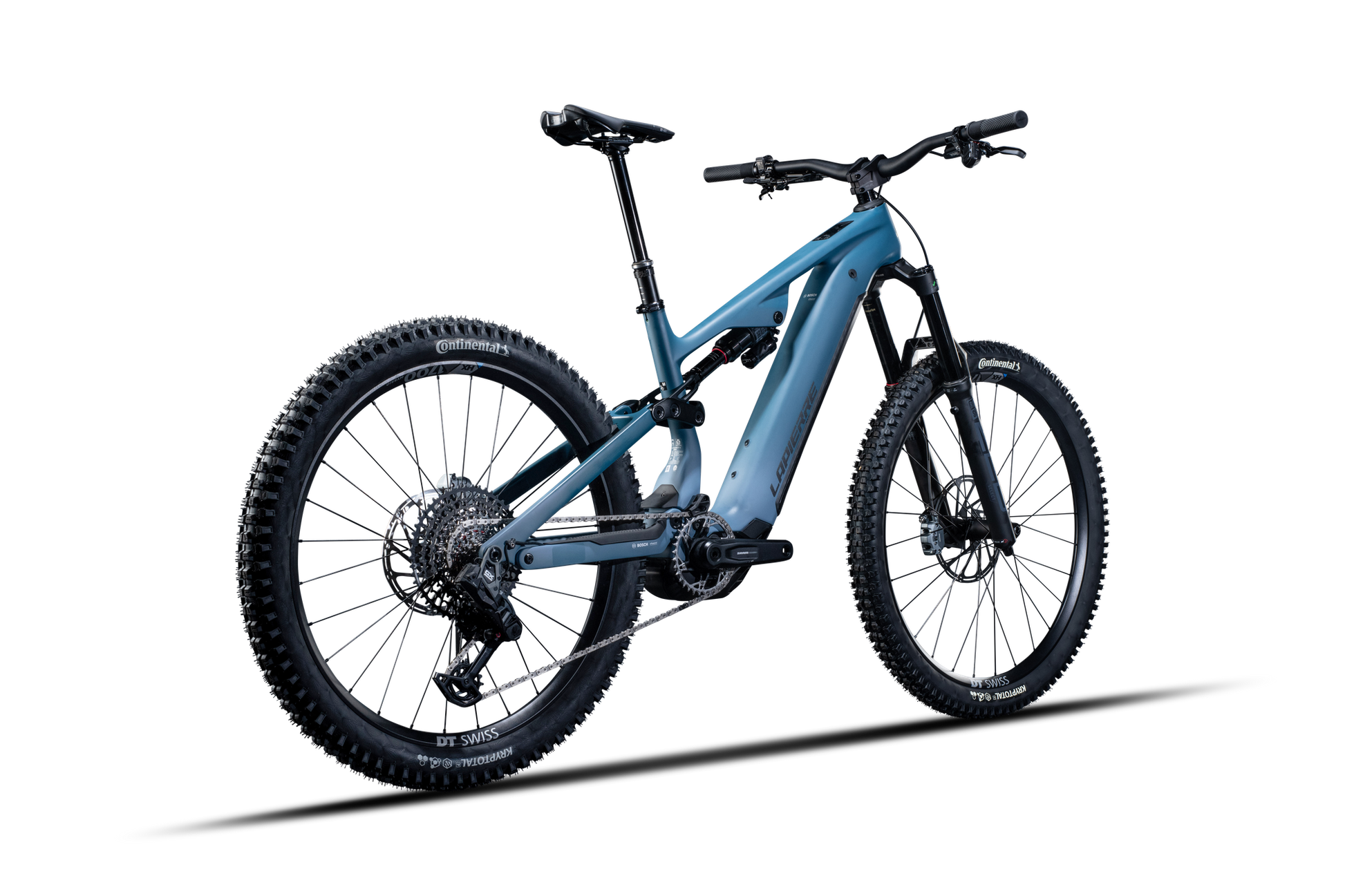

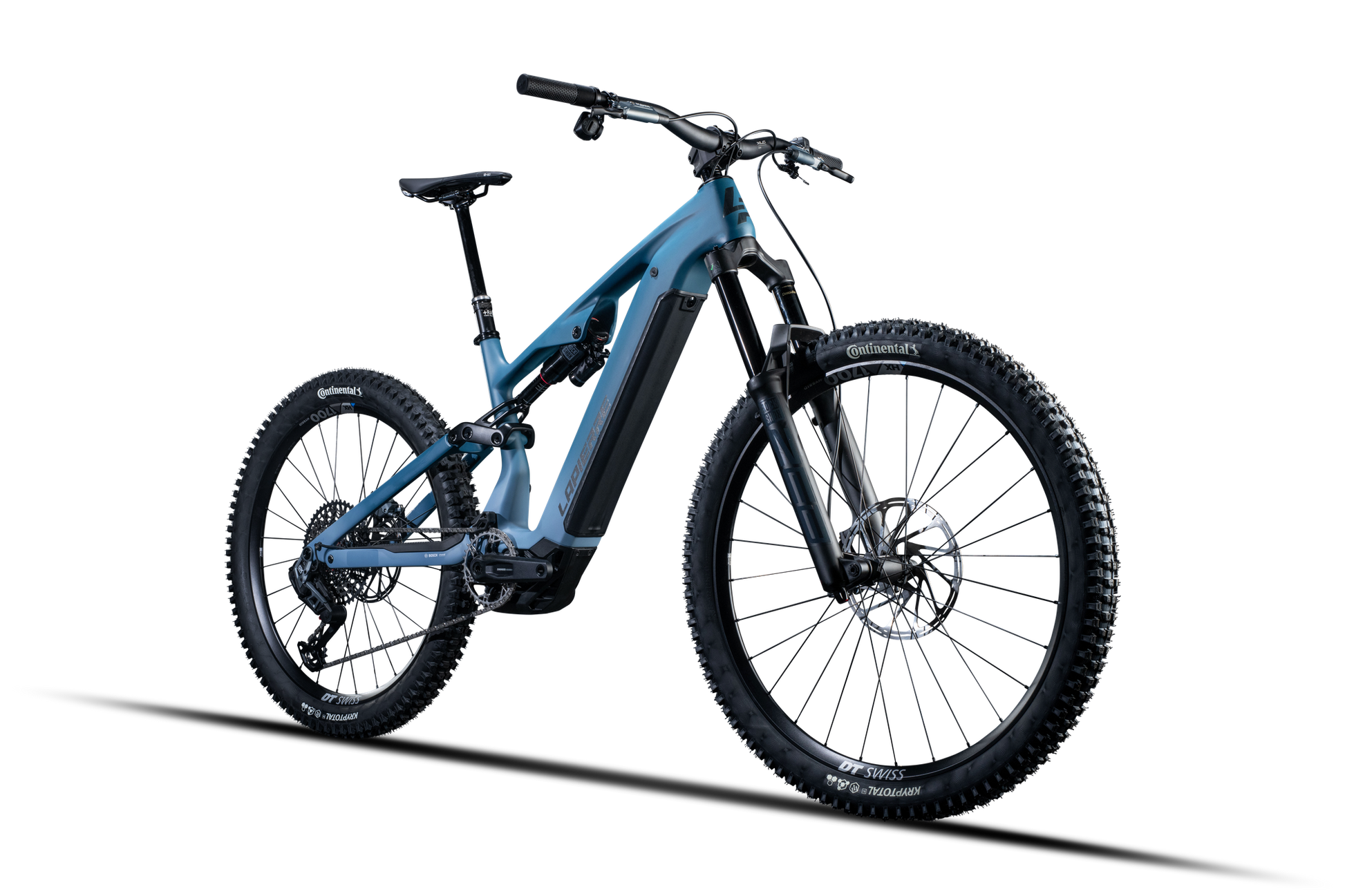

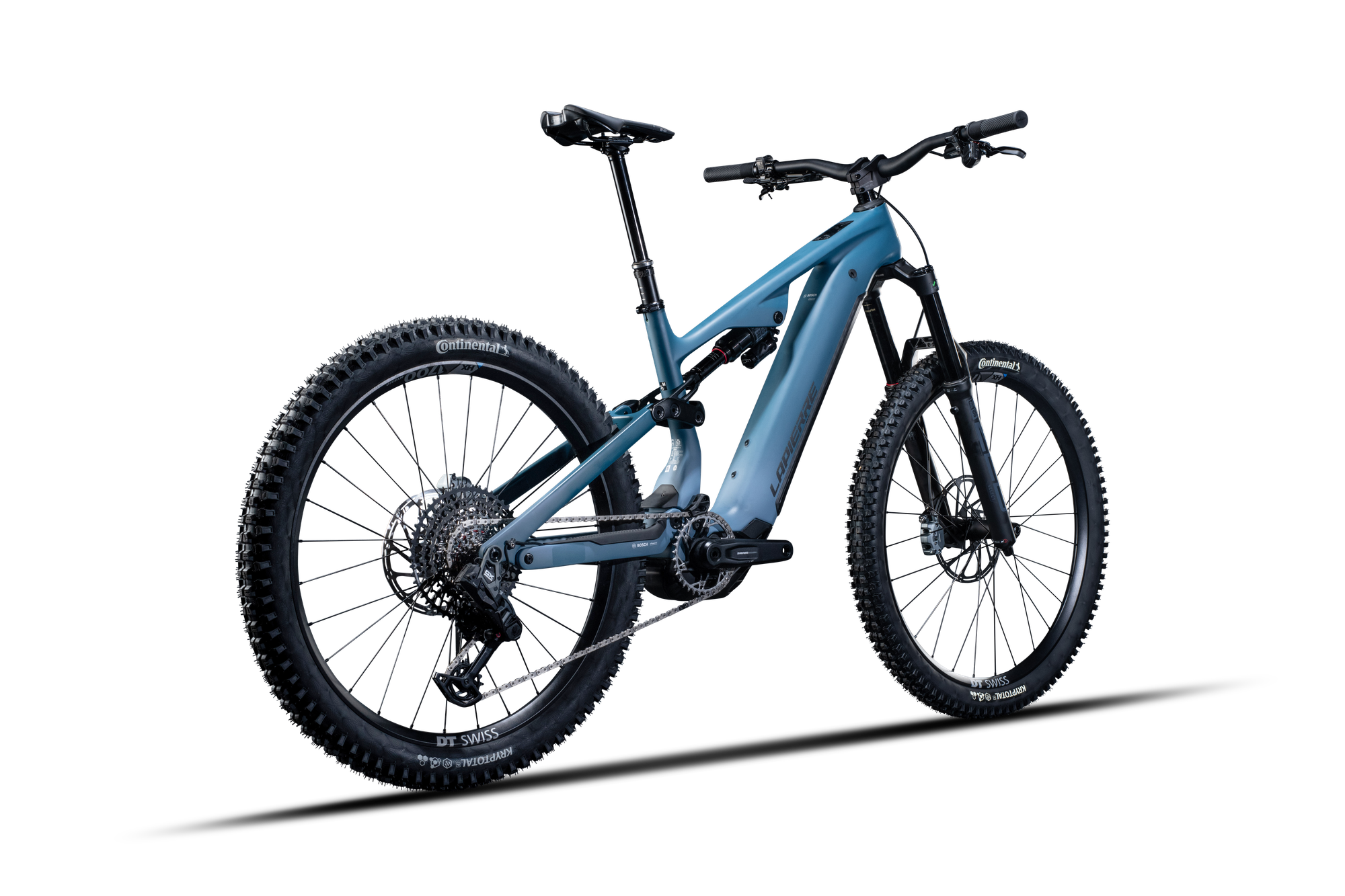

Overvolt AM CF 7.8
Overvolt AM CF 7.8
Description
The best of the GLP III and Overvolt AM combination. A powerful, easy-to-ride new carbon All Mountain E-MTB frame that lets you have fun with your friends or challenge for the top step of the podium at every race
Specifications
e-System
e-System
Battery: Bosch Powertube 800 Wh
Charger: Bosch Charger 4A, 230V
Display: Bosch Kiox 400C + USB Port + Mini Remote
Motor: Bosch Performance line CX
Frame
Frame
Frame: HIGH Carbon Uni
Modular Rail System:
Maximum loadable weight: 120 kg

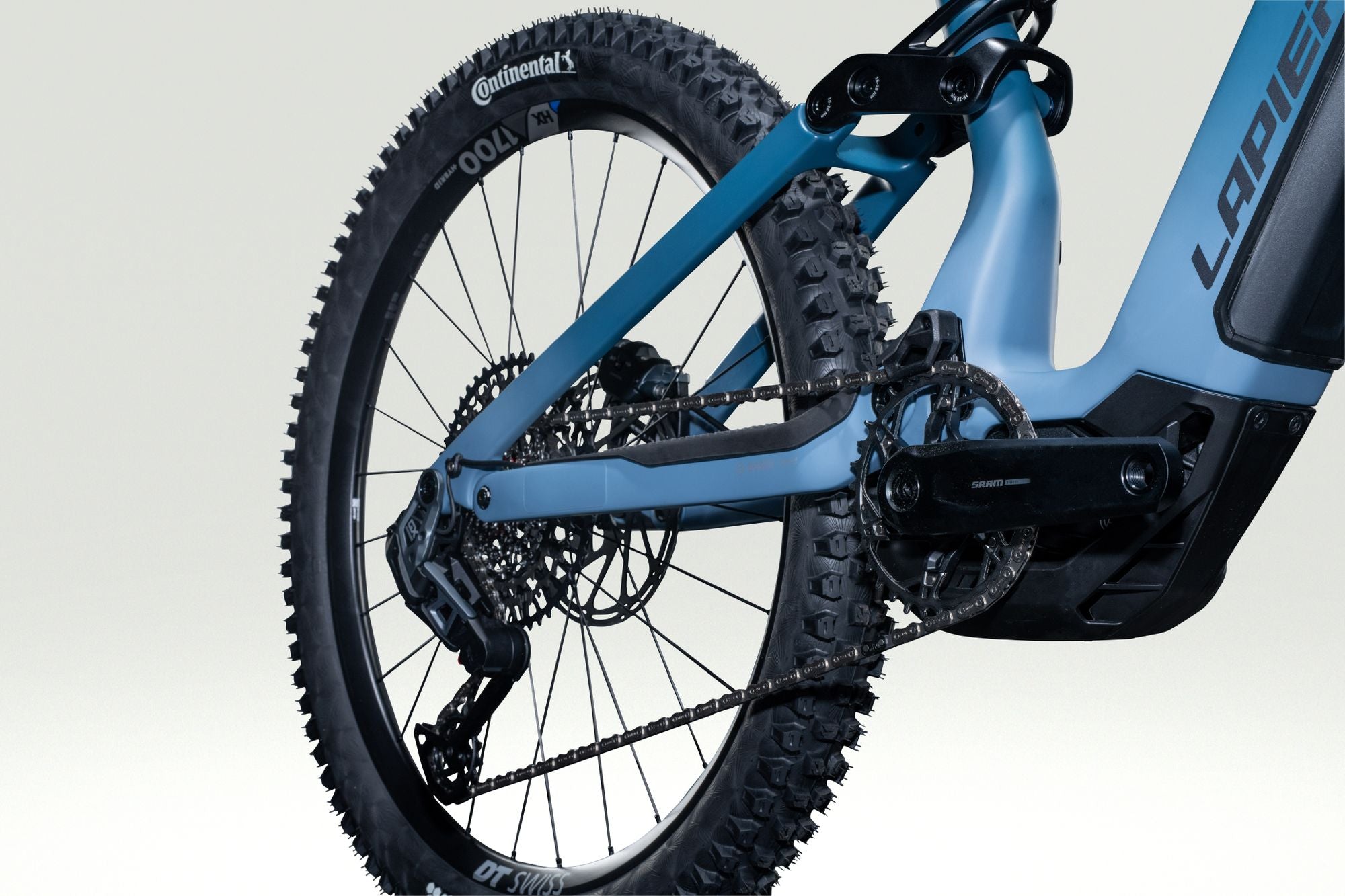

Drive
Drive
Cassette: Sram CS-1275 Eagle T-Type, XD
Chain: Sram GX Eagle T-Type 12s

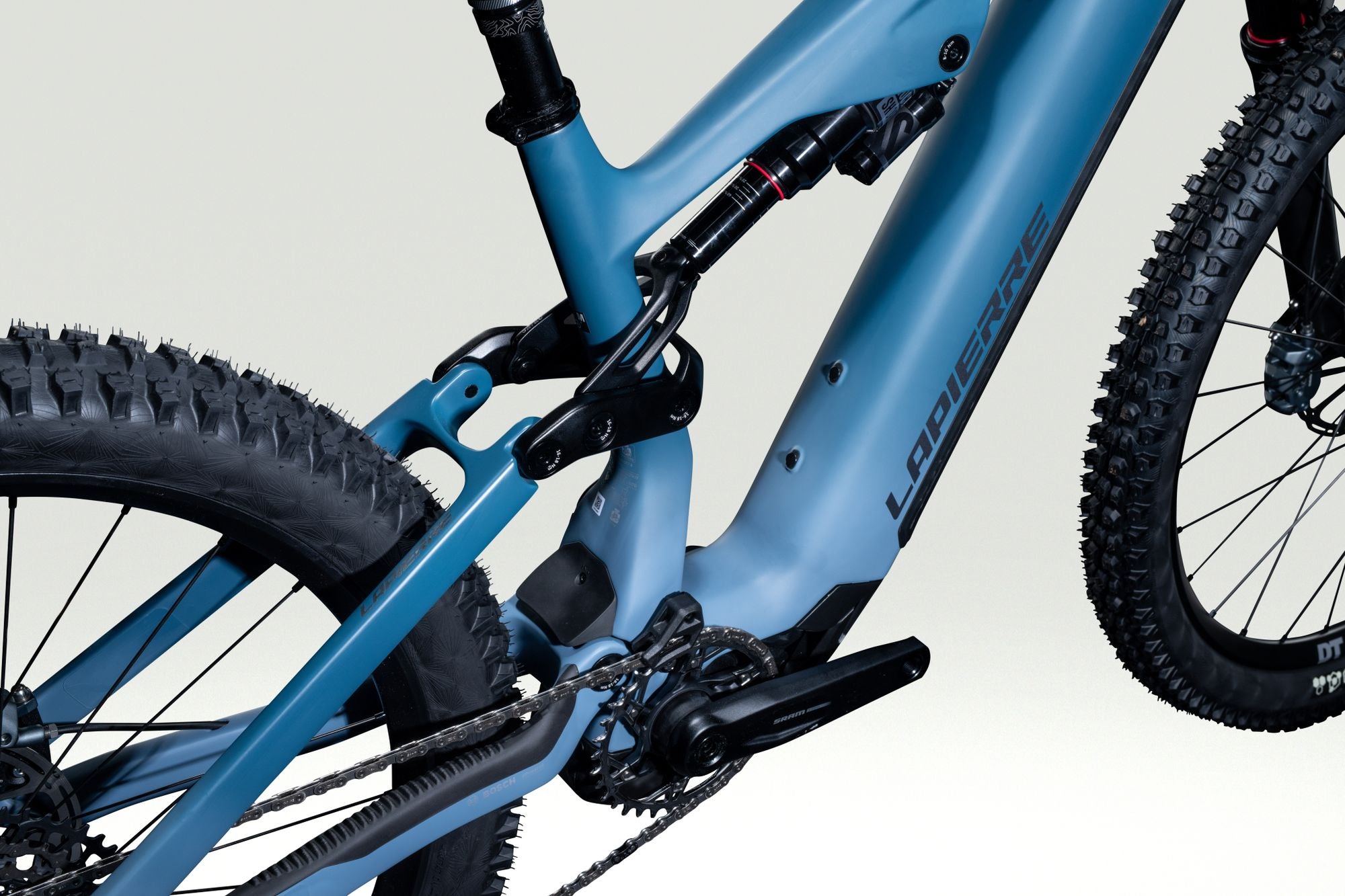

Crankset: Eagle S1000 ISIS160mm+CR XXEagleBosch DU38 DM, T-Type
Derailleur Rear: Sram GX Eagle AXS T-Type 12s
Gear: Sram Derailleur
Number of gears: 12
Shifter Right: Sram Triggershift AXS Pod Controller
Suspension
Suspension

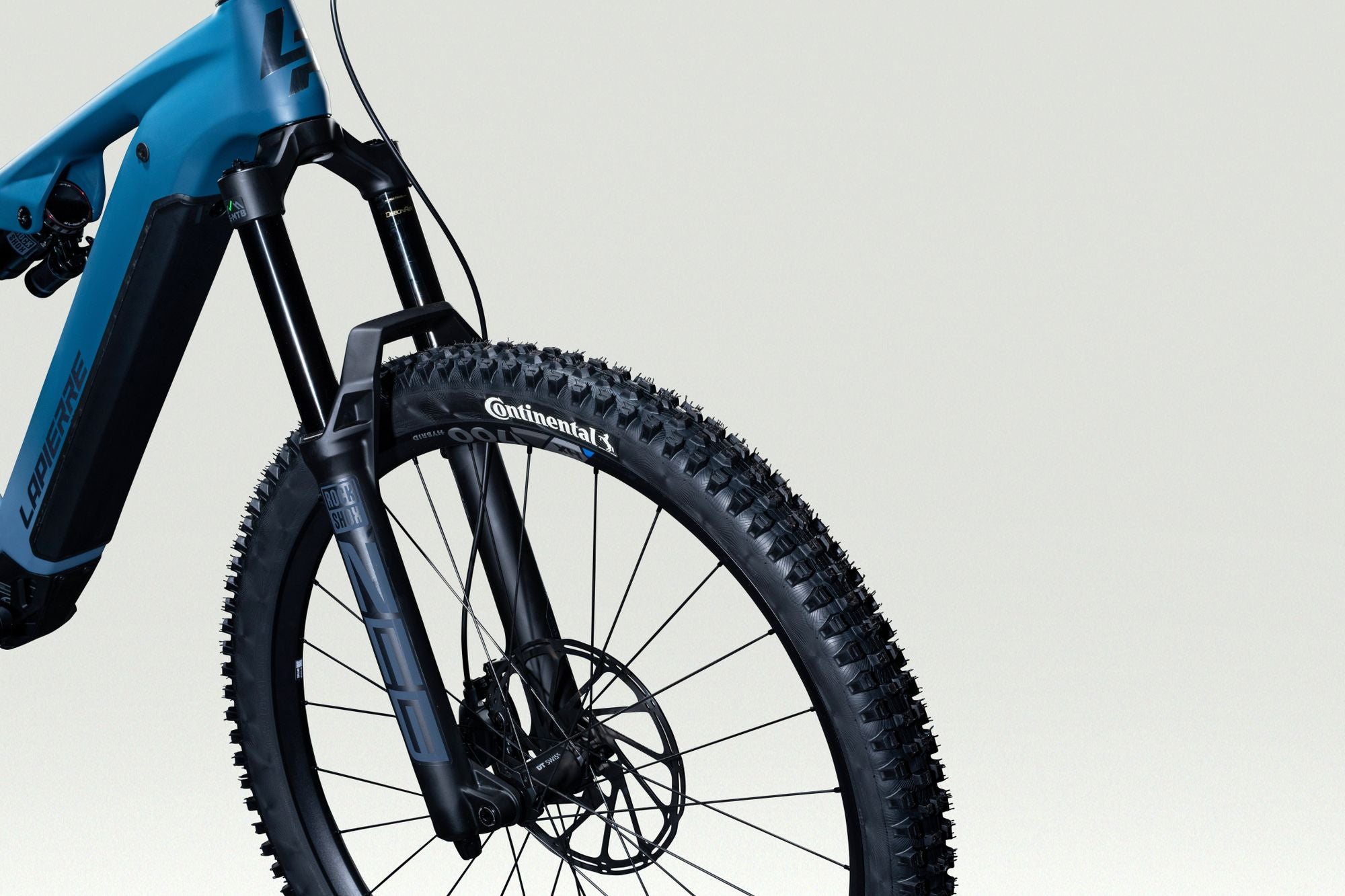

Front Fork: Rockshox ZEB Select Charger RC, 170 mm
Rear Travel:

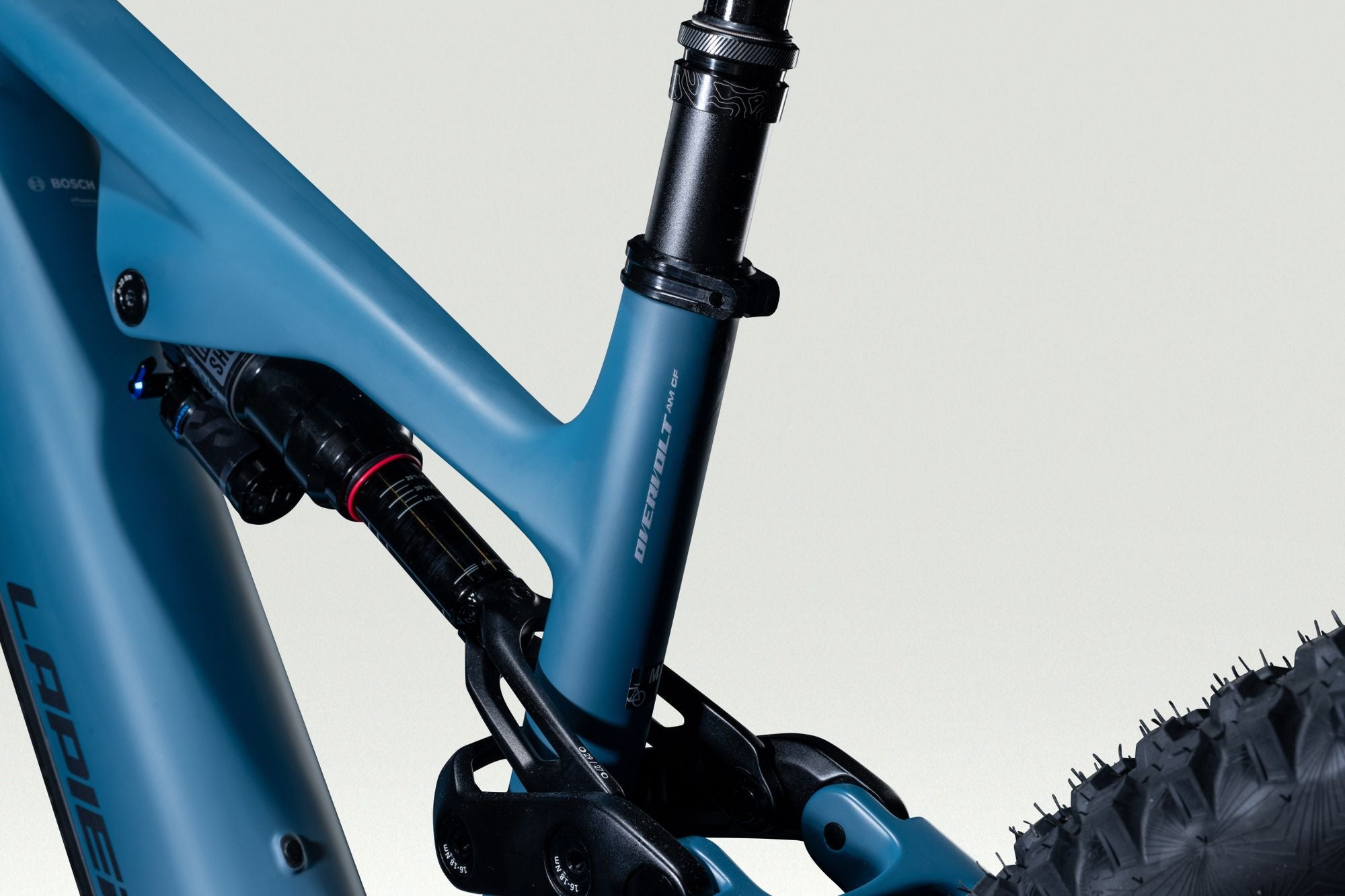

Shock: Rockshox Super Deluxe Select RT 205x60 mm, Trunnion
Travel: 170 mm
Components
Components
Front Brake: Sram Hydraulic Disc brake DB Maven BRZ SJ, 4 pistons, organic pad, 220 mm
Rear Brake: Sram Hydraulic Disc brake DB Maven BRZ SJ, 4 pistons, organic pad, 200 mm
Headlight:
Rear Light:
Brake light:
Grips: XLC GR-S34 Gravity Grip

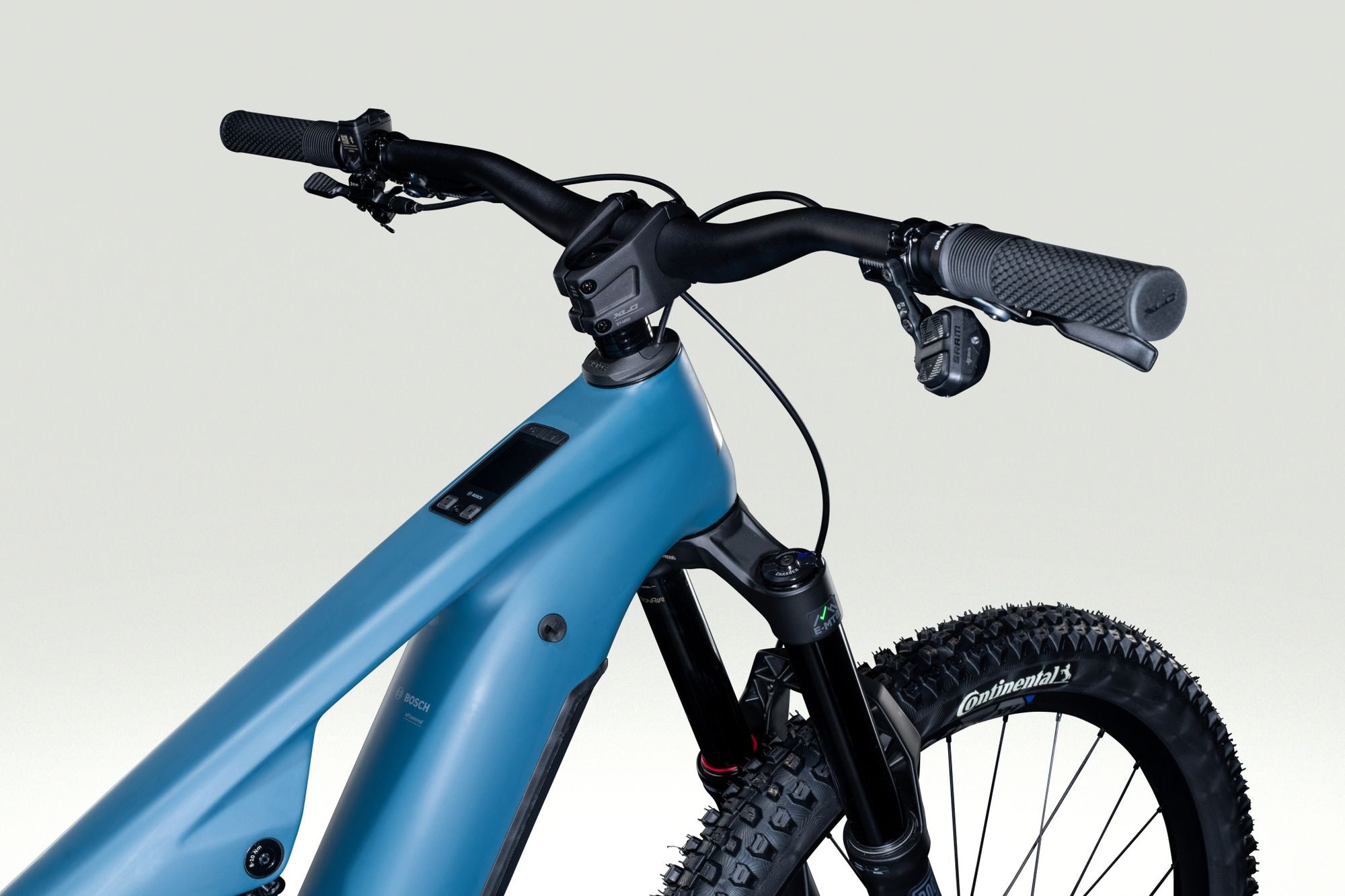

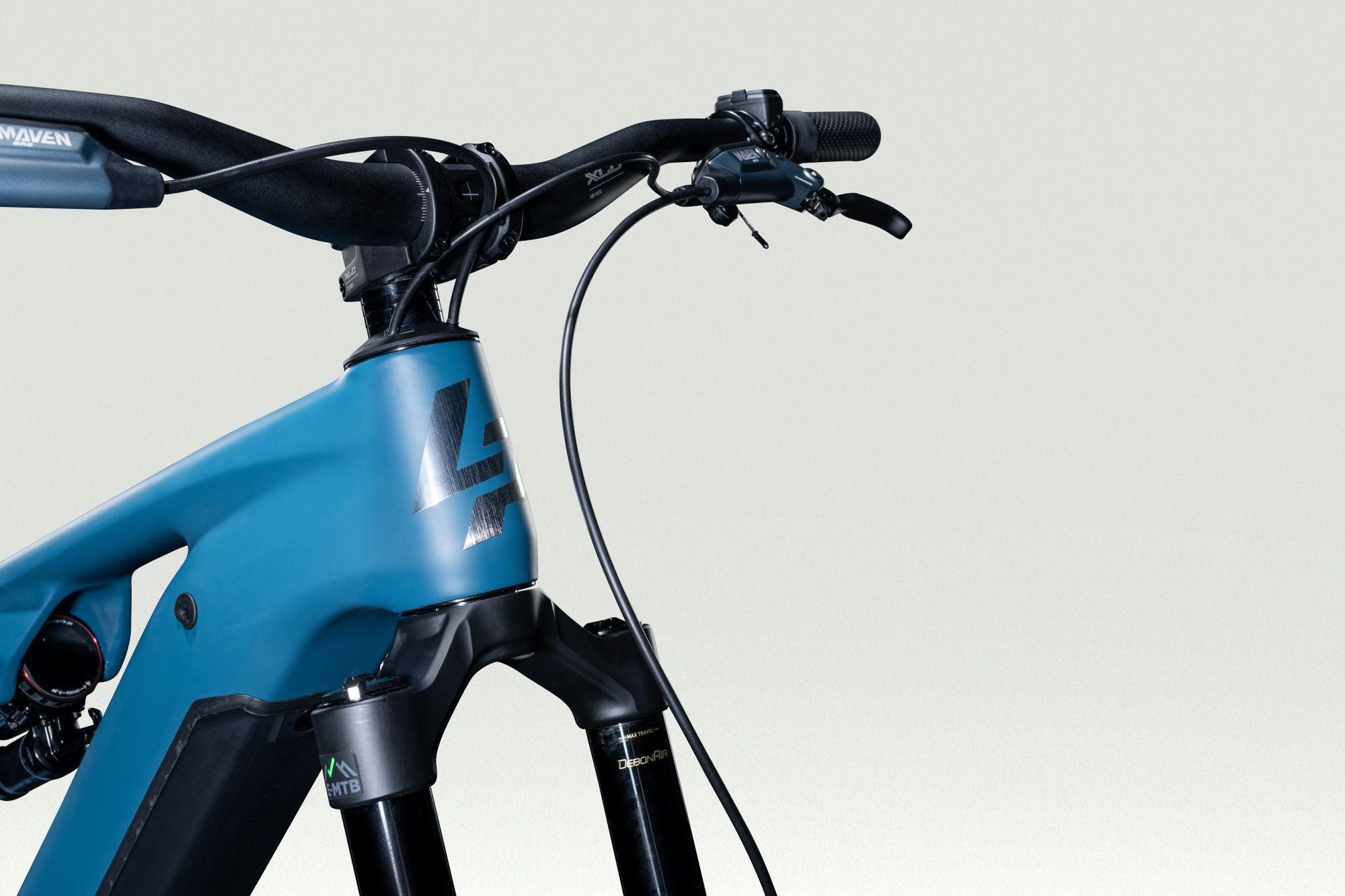

Handlebar: XLC Flat bar HB-M34, Dia. 35 mm, Rise: 30 mm, backsweep 9°
Pedal: XLC PD-M29 Flat w. Reflector
Saddle: Prologo MTB Proxim W450 Steel

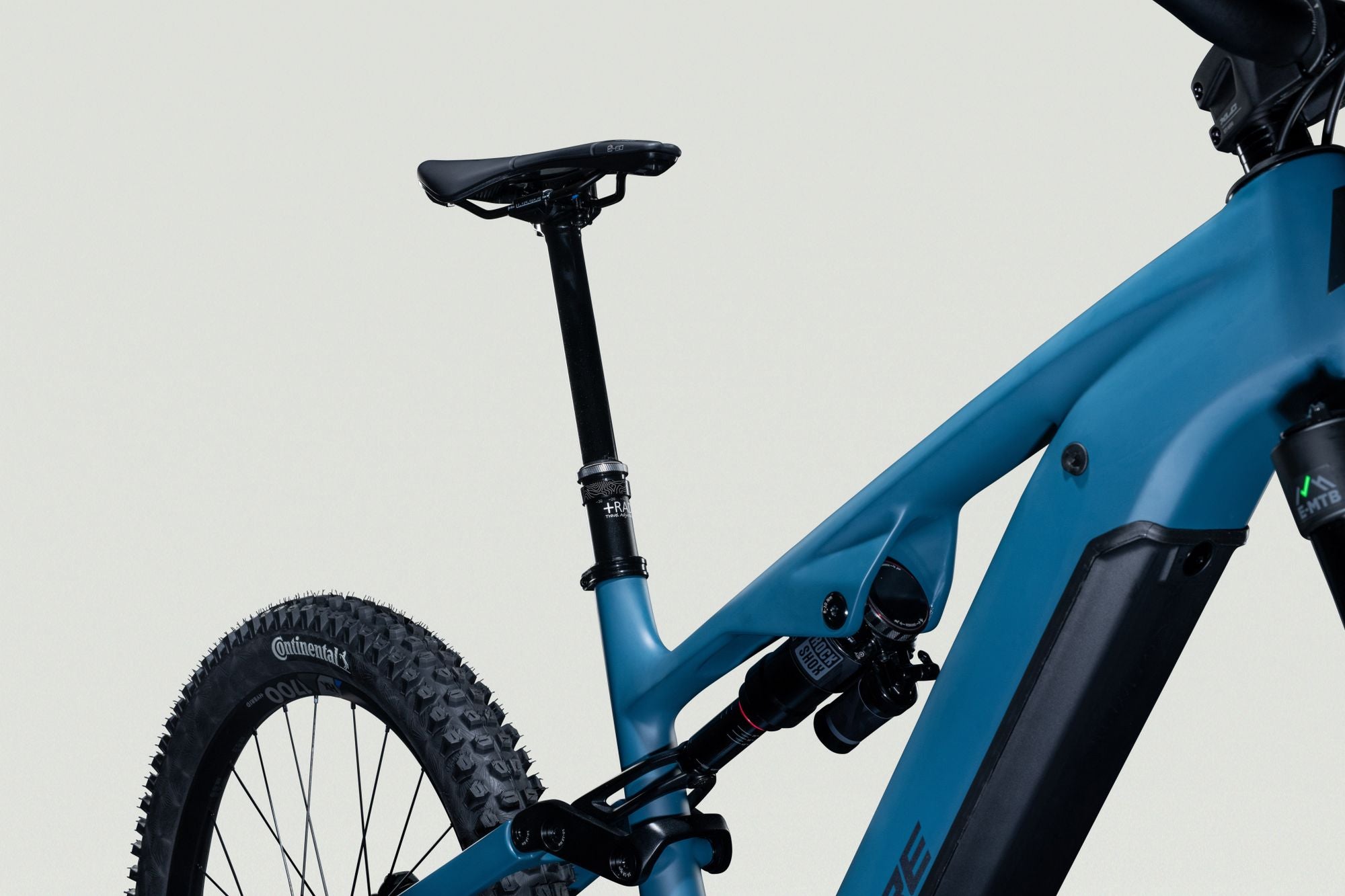

Seatpost: JD Dropperpost YSI05, Dia. 31.6 mm, Travel: 125 mm 405 mm
Wheelset
Wheelset
Front wheel set: DT Swiss HX 1700 Spline, 30 mm, 15x110 mm, 6 bolt Disc
Rear wheel set:
Rim:
Tyre: Continental Kryptotal-F Enduro SuperSoft foldable skin SL 60-622
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
