E-Explorer 8.8
E-Explorer 8.8
Description

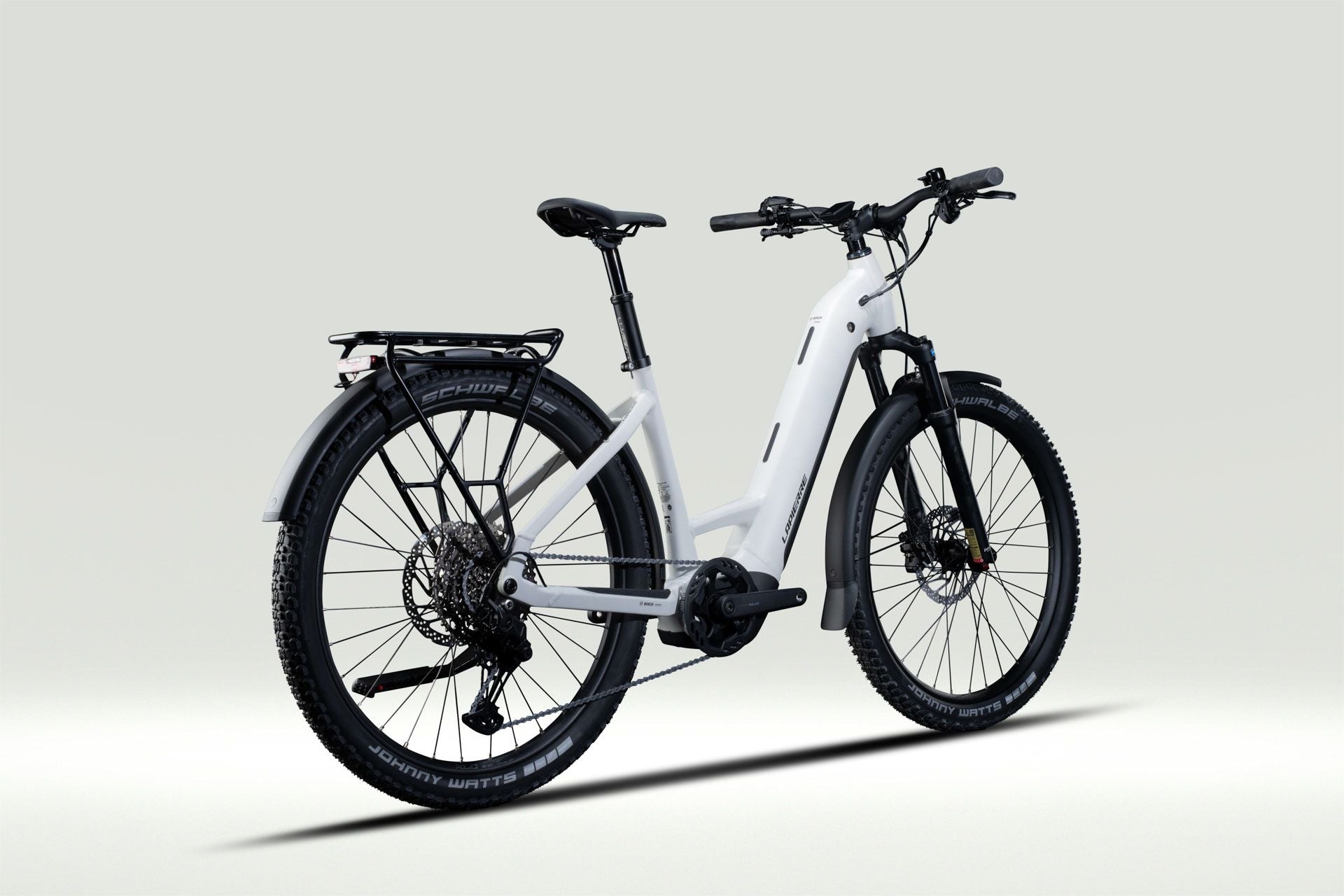

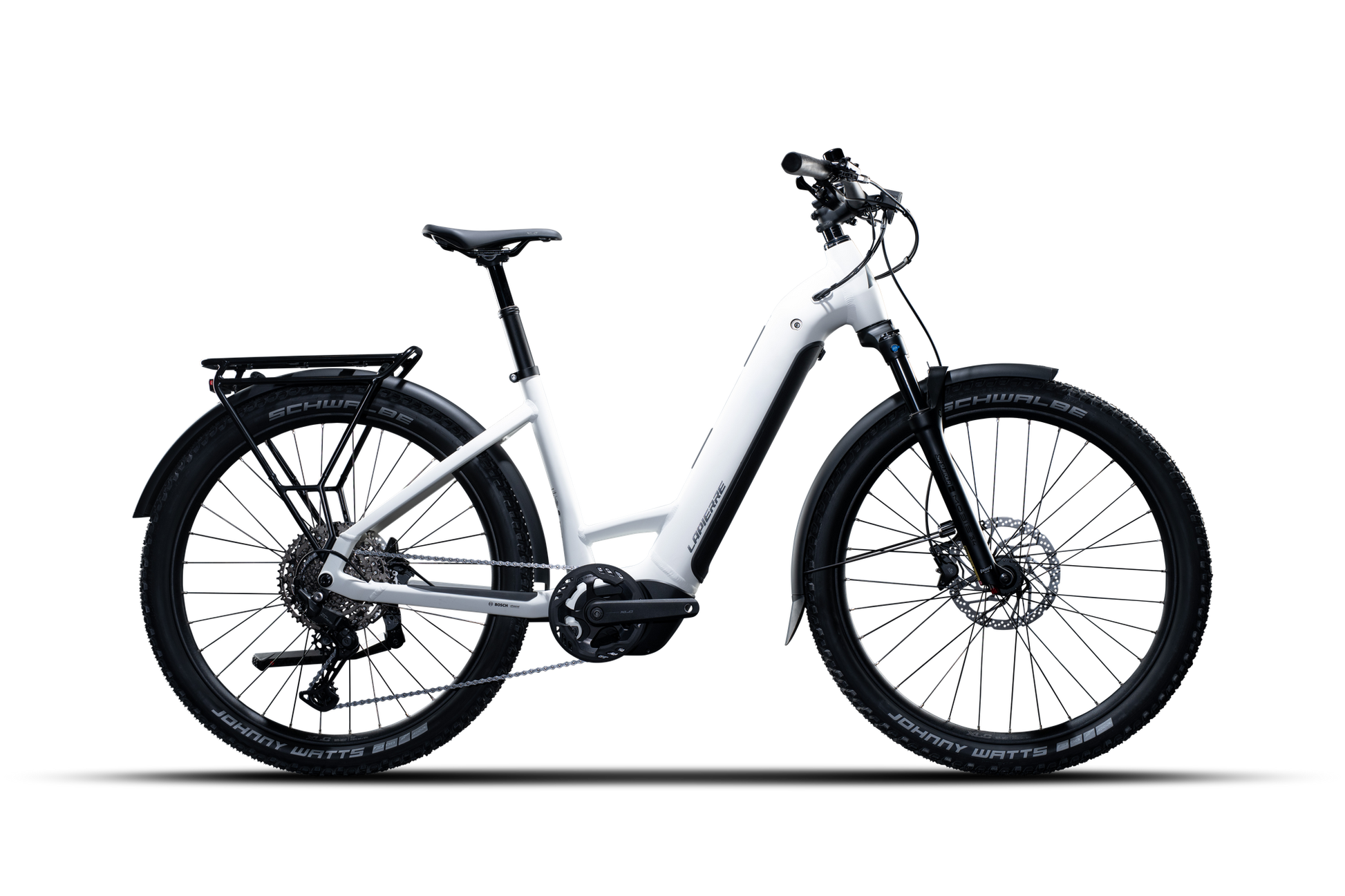

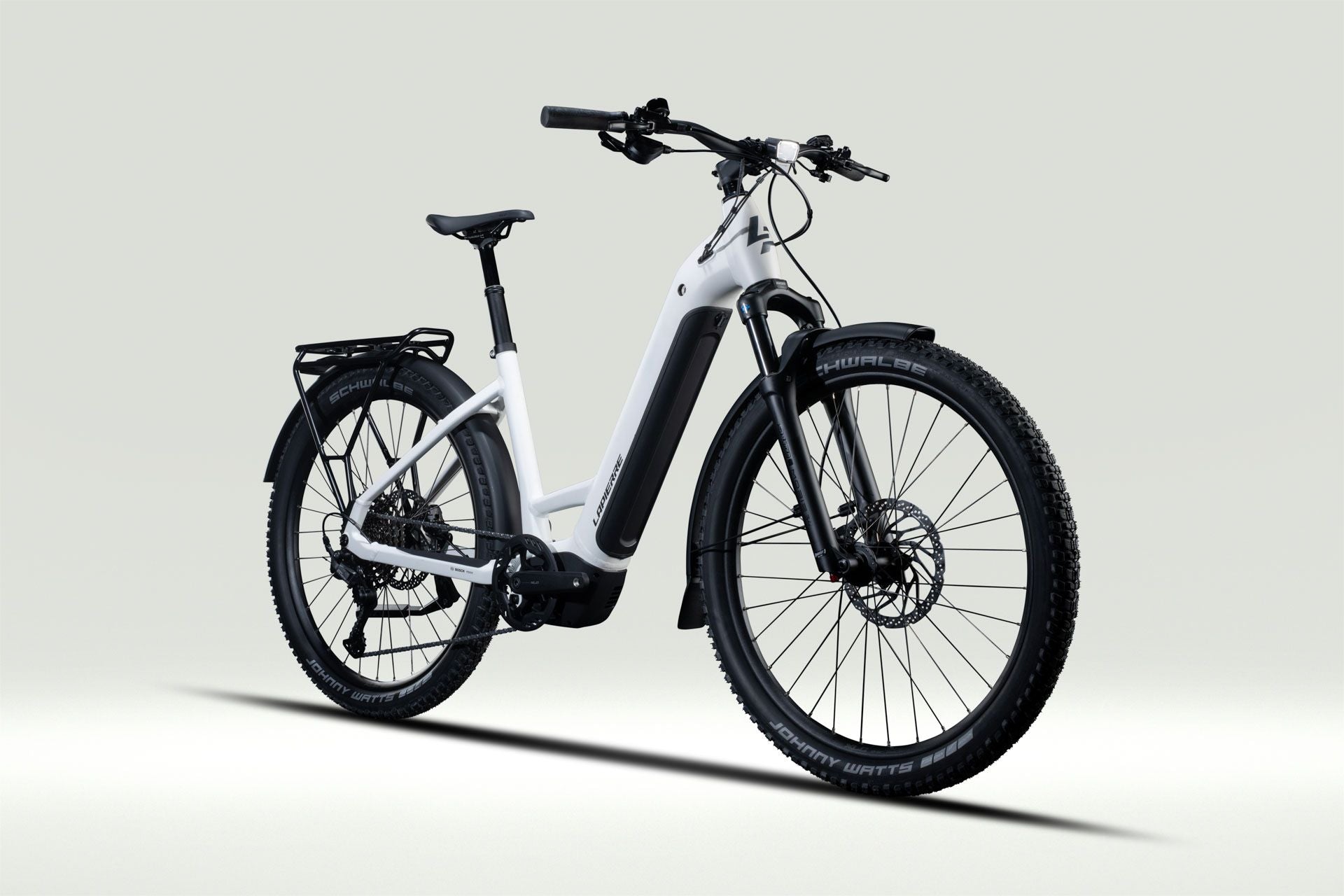

The Lapierre E-Explorer 8.8 Low is a premium SUV-style trekking e-bike built for maximum comfort, power, and versatility. Its low-step aluminum frame, powerful Bosch Performance Line CX motor with 85 Nm, and high-capacity 800 Wh battery deliver effortless support for commuting, touring, and long-distance adventures. Equipped with a Shimano CUES drivetrain, air suspension fork, hydraulic disc brakes, dropper post, and fully integrated accessories, it combines everyday practicality with confident all-road capability.
Geometry
| Component | S | M | L |
|---|---|---|---|
| A: Seat tube length (mm) | 380 mm | 450 mm | 500 mm |
| B: Top Tube legth (mm) | 630 mm | 630 mm | 660 mm |
| C: Head tube length (mm) | 150 mm | 155 mm | 175 mm |
| D: Head Tube Angle | 68 degrees | 68 degrees | 68 degrees |
| E: Seat Tube Angle | 74 degrees | 74 degrees | 74 degrees |
| F: Chain stay length (mm) | 475 mm | 475 mm | 475 mm |
| G: Wheelbase (mm) | 1166 mm | 1189 mm | 1220 mm |
| H: Stack (mm) | 654 mm | 654 mm | 672 mm |
| I: Reach (mm) | 410 mm | 430 mm | 455 mm |
| K: Bottom bracket drop (mm) | 65 mm | 60 mm | 60 mm |
Specifications
e-System
e-System
Battery: Bosch
Charger: Bosch Charger 4A, 230V
Display: Bosch Kiox 300 + LED-Remote
Motor: Bosch Performance Line PX
Frame
Frame
Frame: LOW Aluminium Low entry
Modular Rail System:
Maximum loadable weight: 130 kg
Drive
Drive
Cassette: Shimano CUES CS-LG400-11, HG
Chain: KMC eGlide with EPT Coating 9-11s

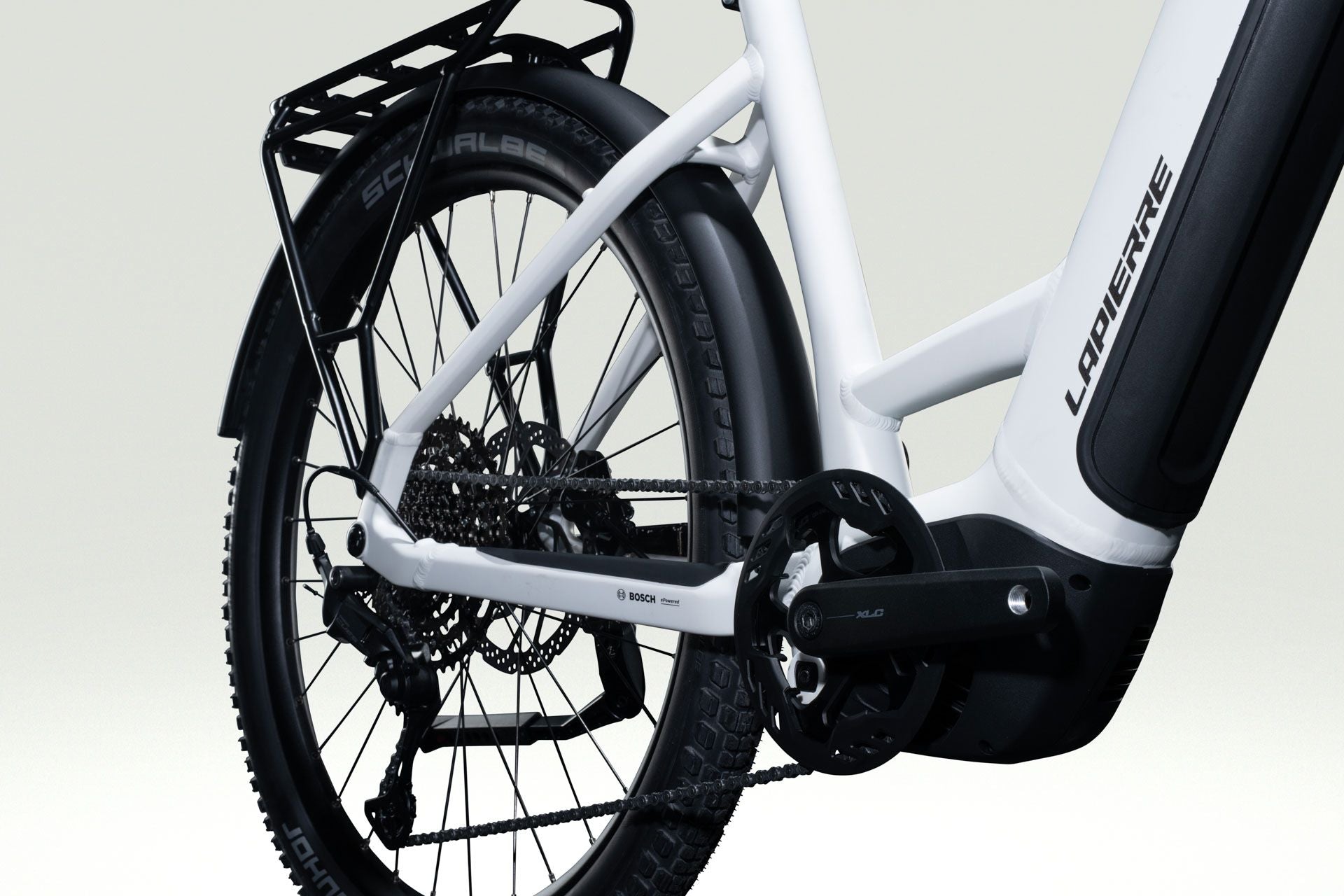

Crankset: Crius ISIS Cranks 160 mm + Chainring

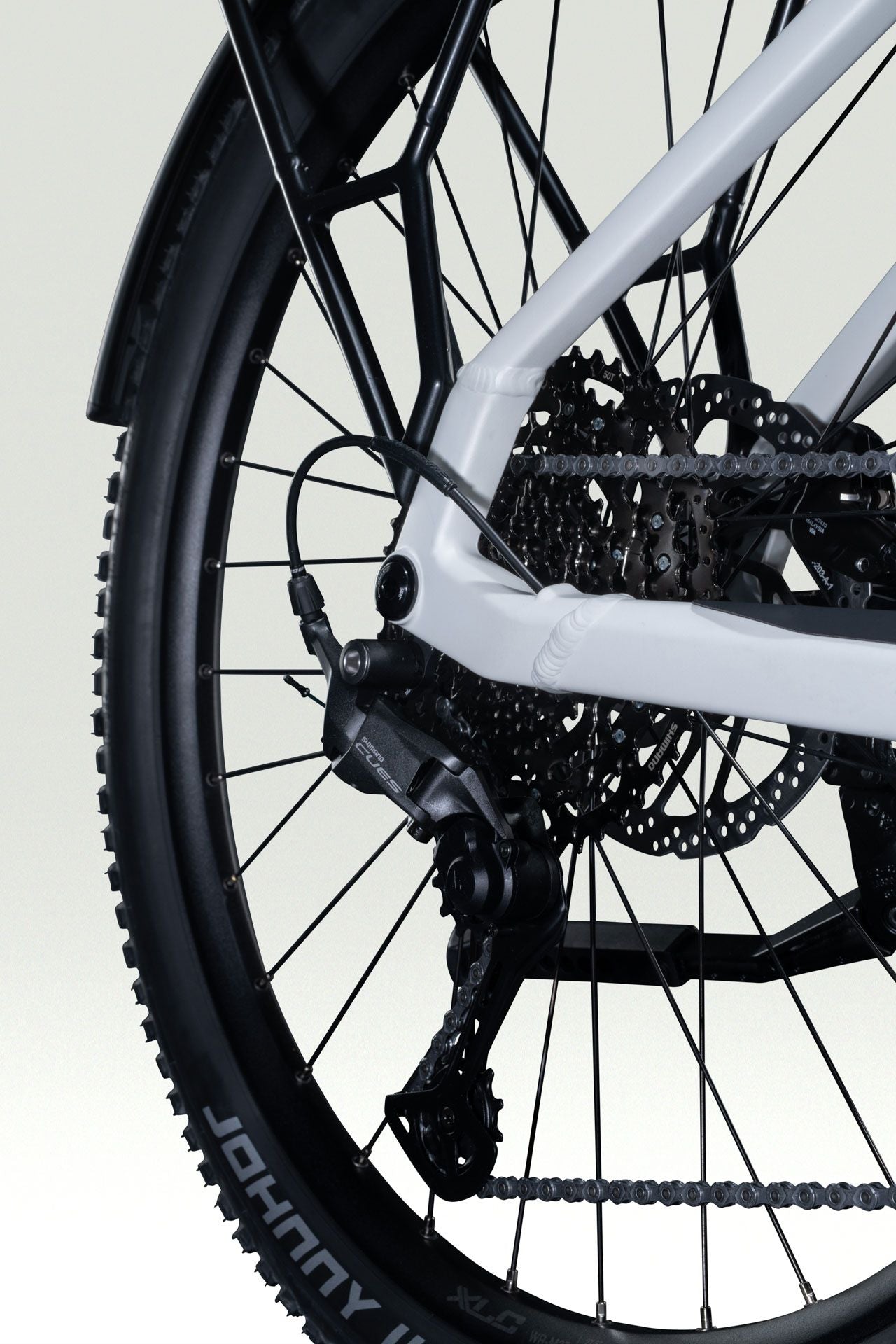

Derailleur Rear: Shimano CUES RD-U6000-10/11s, Shadow+
Gear: Shimano Derailleur
Number of gears: 11
Shifter Right: Shimano Triggershift CUES SL-U6000-11R, Rapidfire+
Suspension
Suspension
Front Fork: Suntour SF24-Mobie 34-Boost, 100 mm
Travel:
Shock:
Damper:
Rear Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake Deore BR-MT410, 2 pistons, resin pad,203 mm
Rear Brake: Shimano Hydraulic Disc brake Deore BR-M410, 2 pistons, resin pad, 203 mm
Headlight: Trelock Lighthammer LS830 80 Lux, 6-12V
Rear Light: AXA Juno E-Bike, 6-12V
Brake light:
Grips: XLC

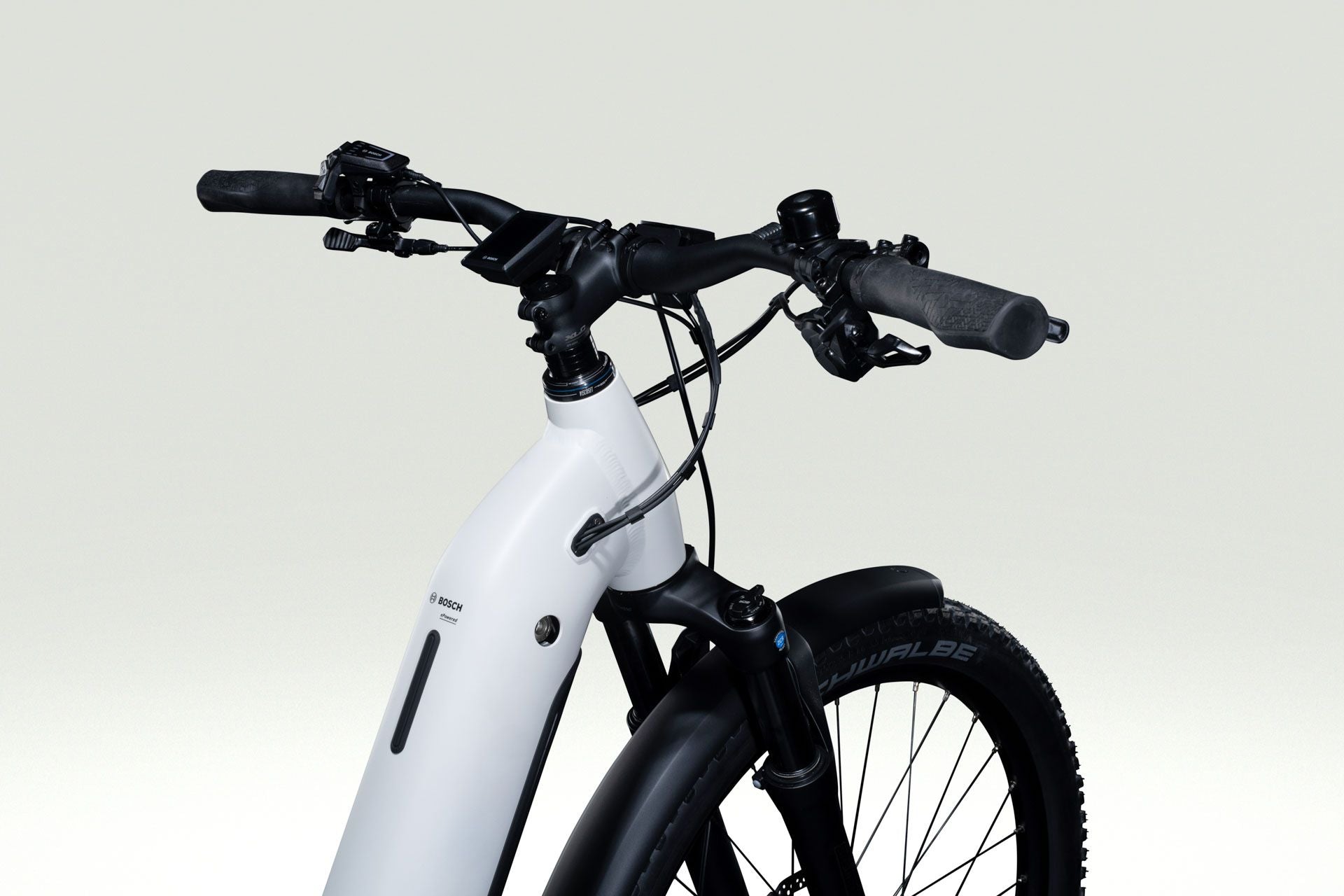

Handlebar: XLC Trekking HB-M32, Dia. 31.8 mm, Rise: 25 mm, backsweep 15°
Pedal: XLC PD-M29 Flat w. Reflector
Saddle: XLC MTB Sport Comfort SA-S11 Steel Rail 155 mm

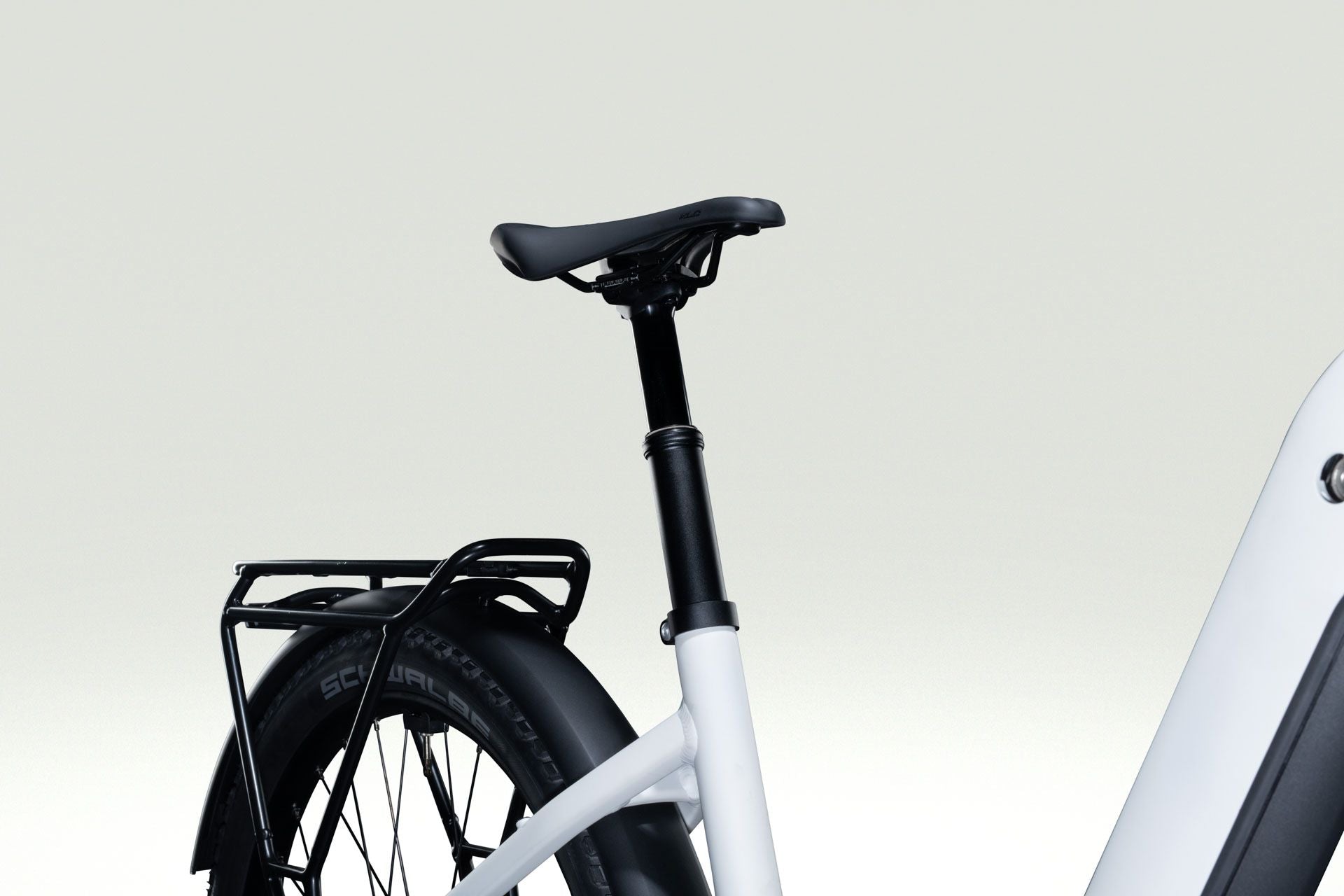

Seatpost: Limotec Dropperpost D3 Dropper, Dia. 34.9 mm, Travel: 75 mm
Wheelset
Wheelset
wheel set:
wheel set:
Rim: XLC WR-M37 Disc 30/584, 32H, 6,5 mm Valve
Tyre: Schwalbe Johnny Watts Performance, DD, Raceguard, 67EPI 60-584
Documents
Documents
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
