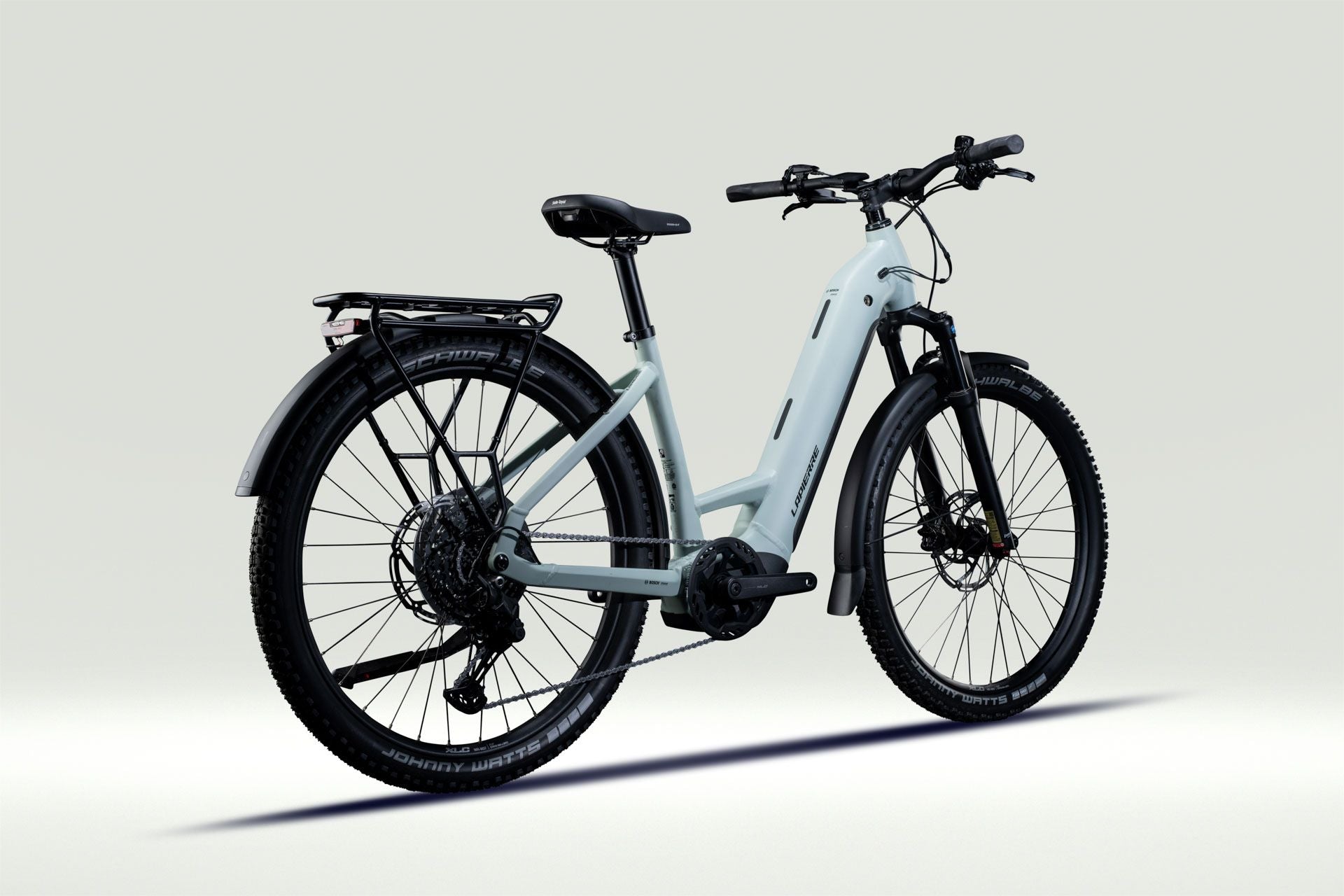

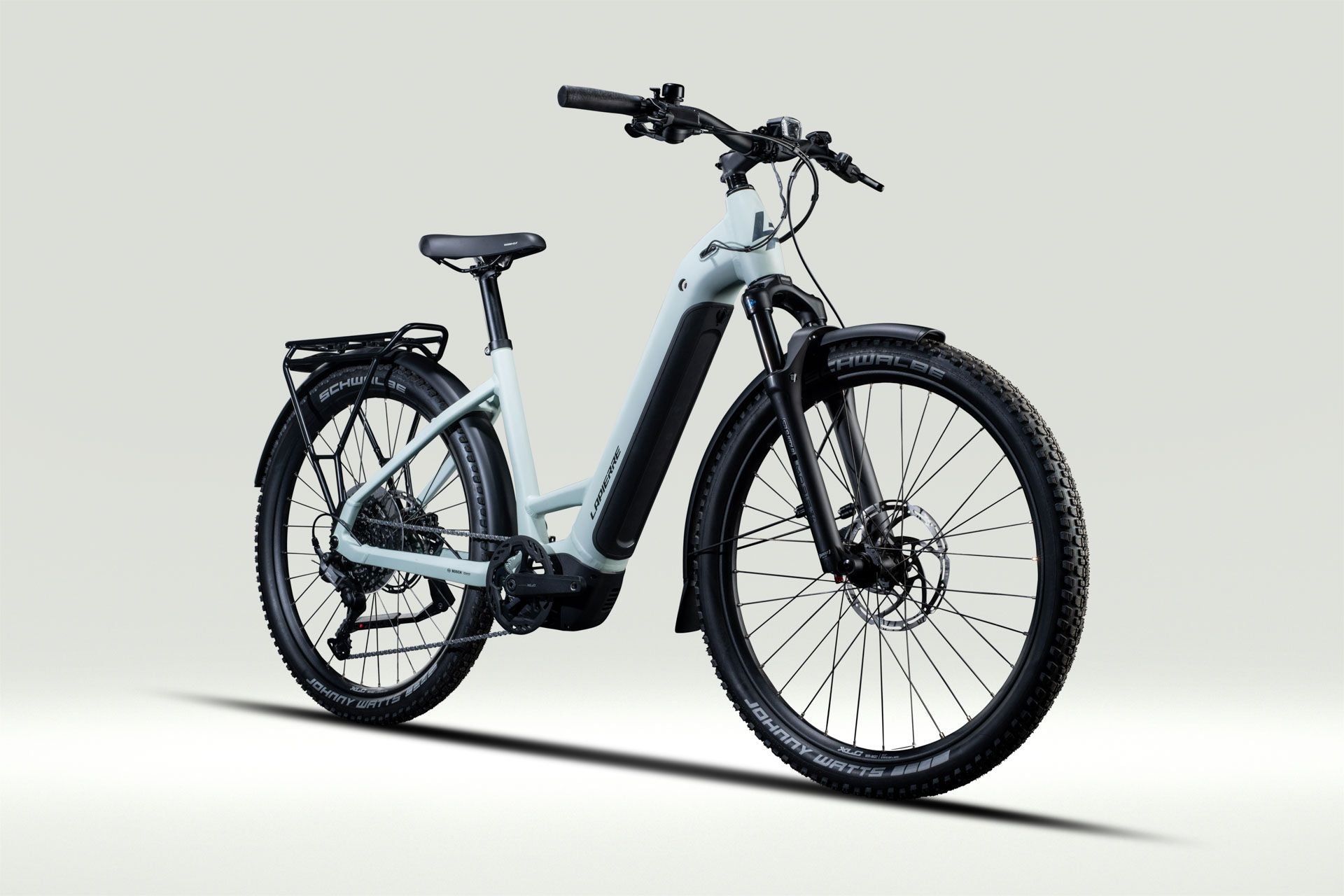

E-Explorer 7.6
E-Explorer 7.6
Description
Geometry
| Component | S | M | L |
|---|---|---|---|
| A: Seat tube length (mm) | 380 mm | 450 mm | 500 mm |
| B: Top Tube legth (mm) | 630 mm | 630 mm | 660 mm |
| C: Head tube length (mm) | 150 mm | 155 mm | 175 mm |
| D: Head Tube Angle | 68 degrees | 68 degrees | 68 degrees |
| E: Seat Tube Angle | 74 degrees | 74 degrees | 74 degrees |
| F: Chain stay length (mm) | 475 mm | 475 mm | 475 mm |
| G: Wheelbase (mm) | 1166 mm | 1189 mm | 1220 mm |
| H: Stack (mm) | 654 mm | 654 mm | 672 mm |
| I: Reach (mm) | 410 mm | 430 mm | 455 mm |
| K: Bottom bracket drop (mm) | 65 mm | 60 mm | 60 mm |
Specifications
e-System
e-System
Battery: Bosch
Charger: Bosch Charger 4A, 230V
Display: Bosch Intuvia 100 + LED Remote

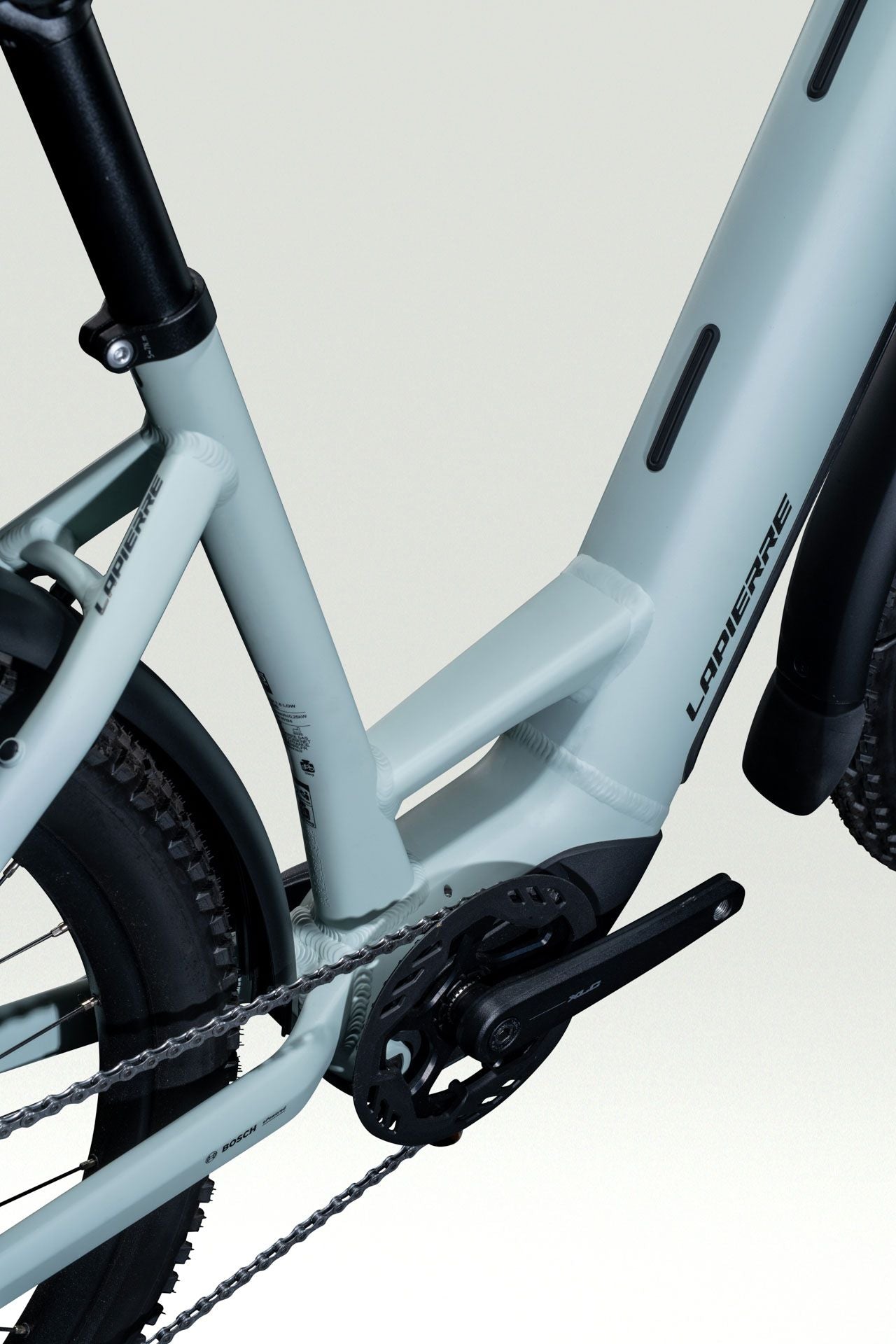

Motor: Bosch Performance Line PX
Frame
Frame
Frame: LOW Aluminium Low entry
Modular Rail System:
Maximum loadable weight: 130 kg
Drive
Drive
Cassette: Shimano CUES CS-LG300-10, HG
Chain: KMC eGlide with EPT Coating 9-11s

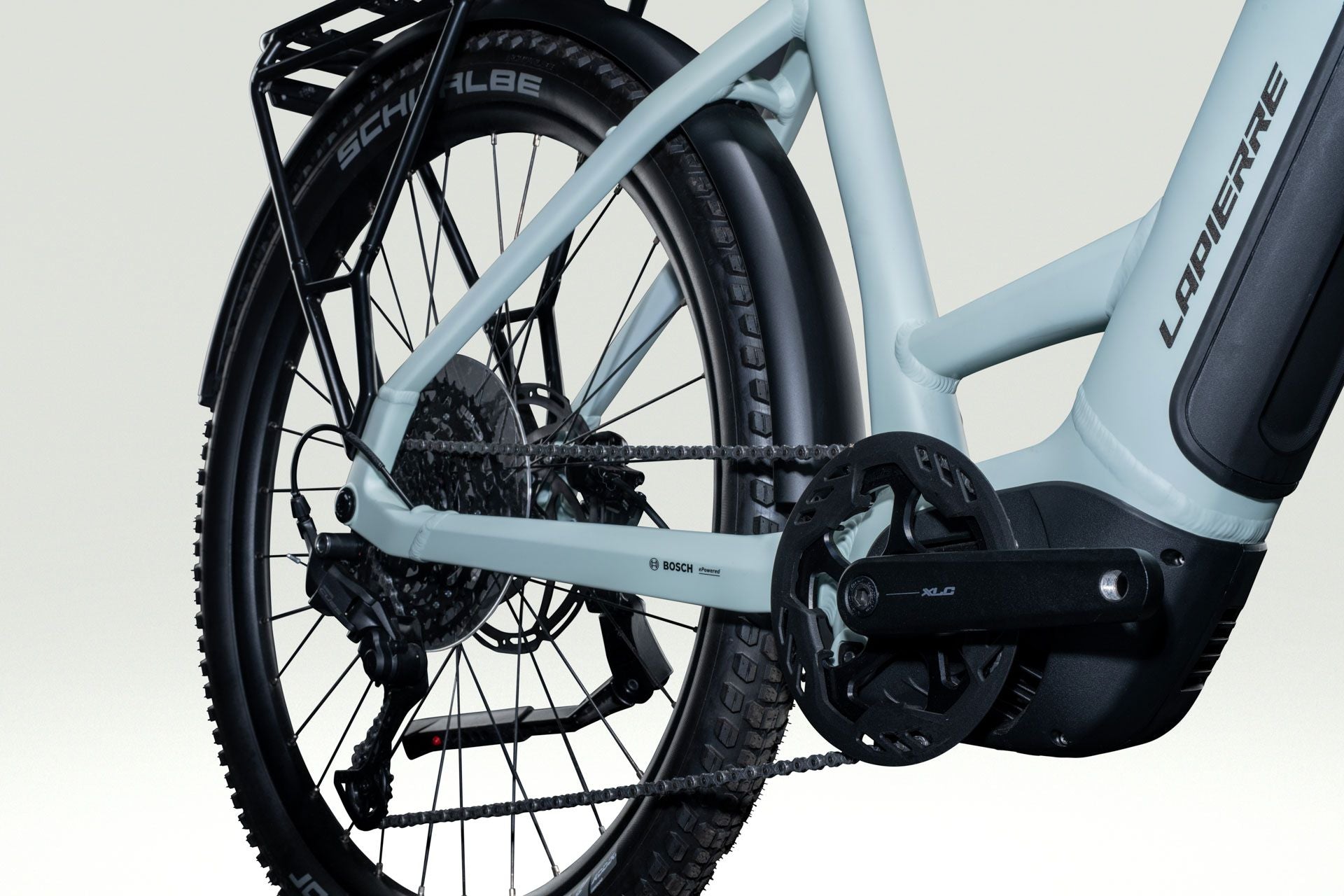

Crankset: Crius ISIS Cranks + CR-E40 BDU 38 + Bashring

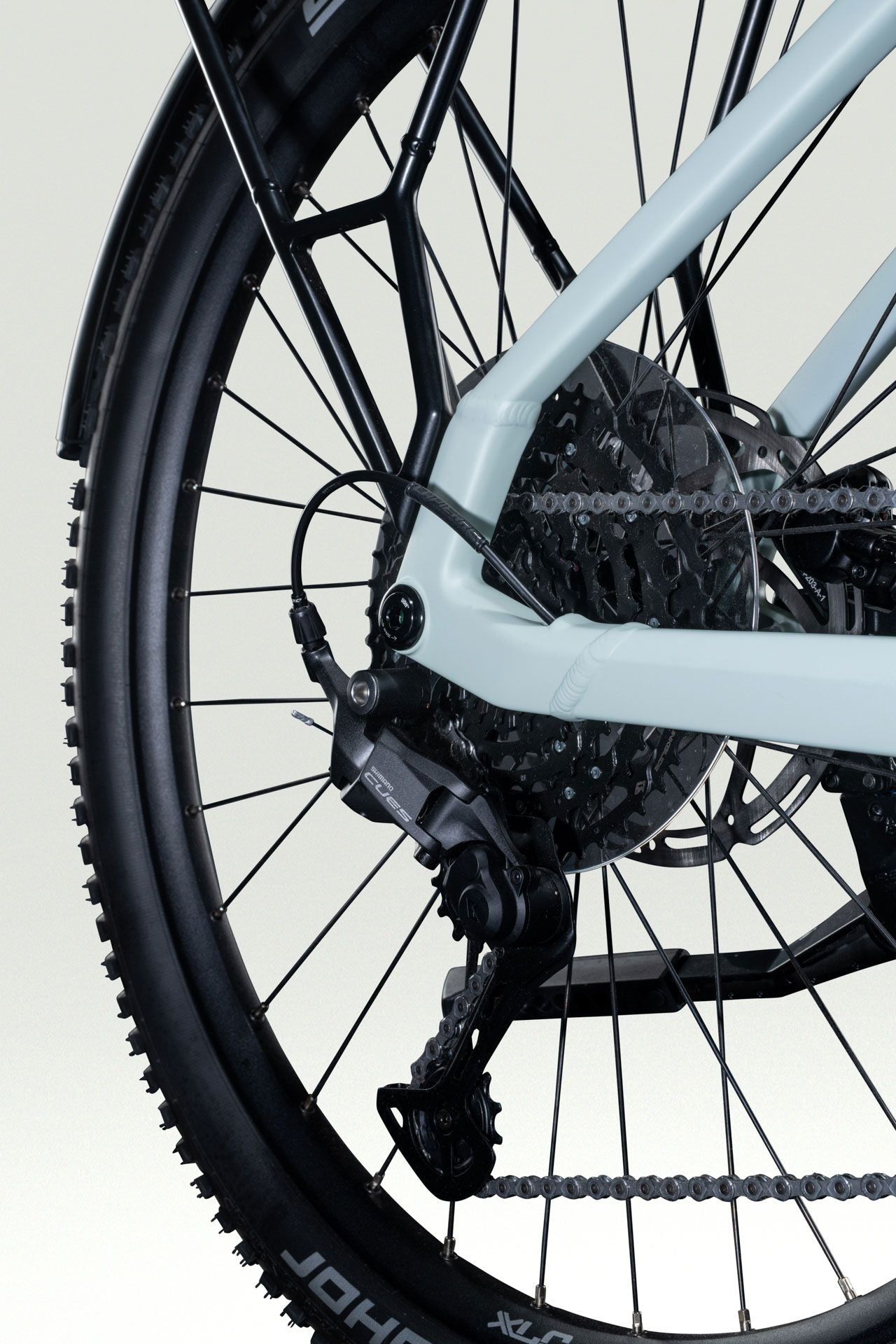

Derailleur Rear: Shimano CUES RD-U6000-10/11s, Shadow+
Gear: Shimano Derailleur
Number of gears: 10
Shifter Right: Shimano Triggershift CUES SL-U6000-10R, Rapidfire+
Suspension
Suspension

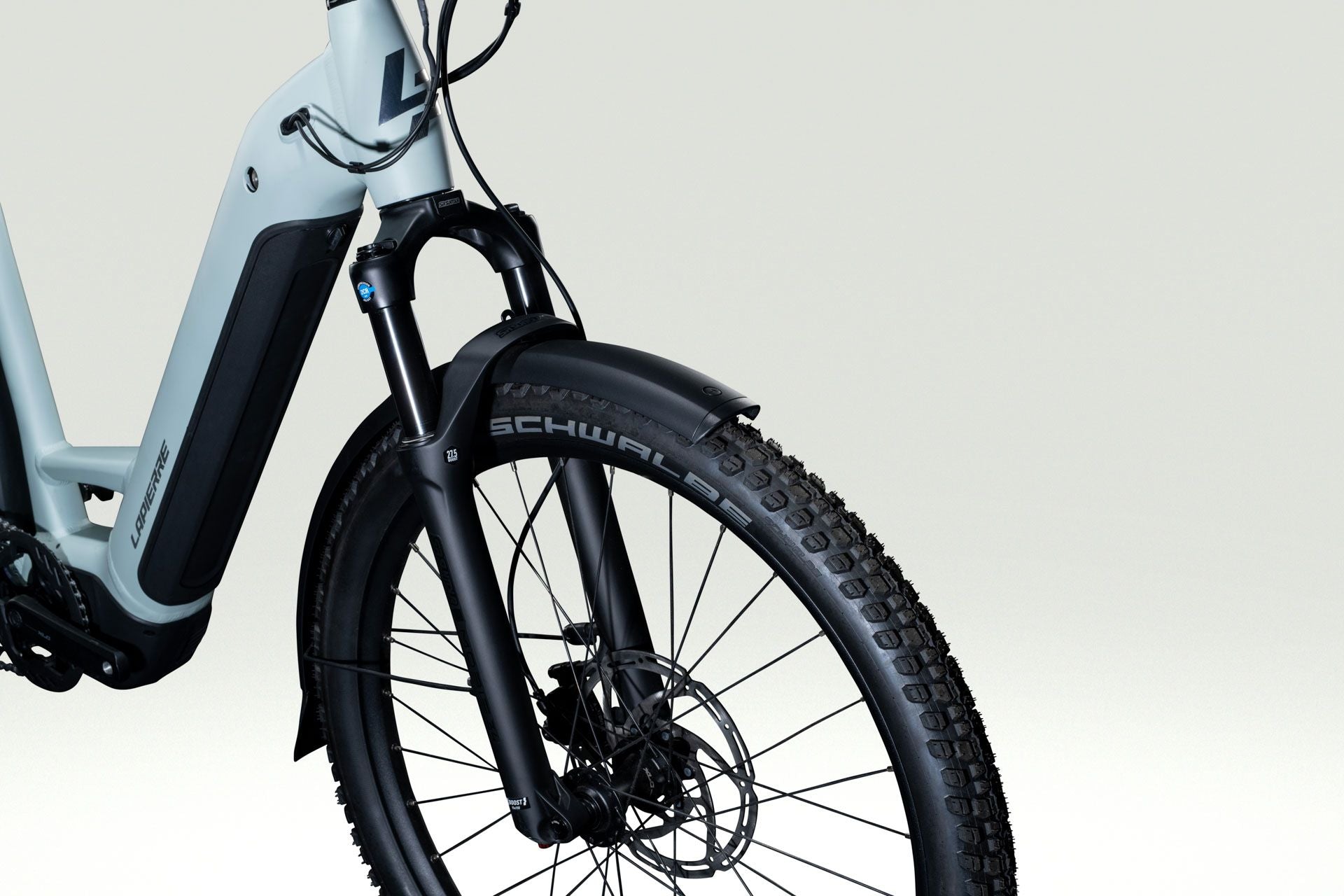

Front Fork: Suntour SF24-Mobie 34-Boost, 110 mm
Travel:
Shock:
Damper:
Rear Travel:
Components
Components
Front Brake: Tektro Hydraulic Disc brake HD-M280, 2 pistons, resin pad, 203 mm
Rear Brake: Tektro Hydraulic Disc brake HD-M280, 2 pistons, resin pad, 203 mm

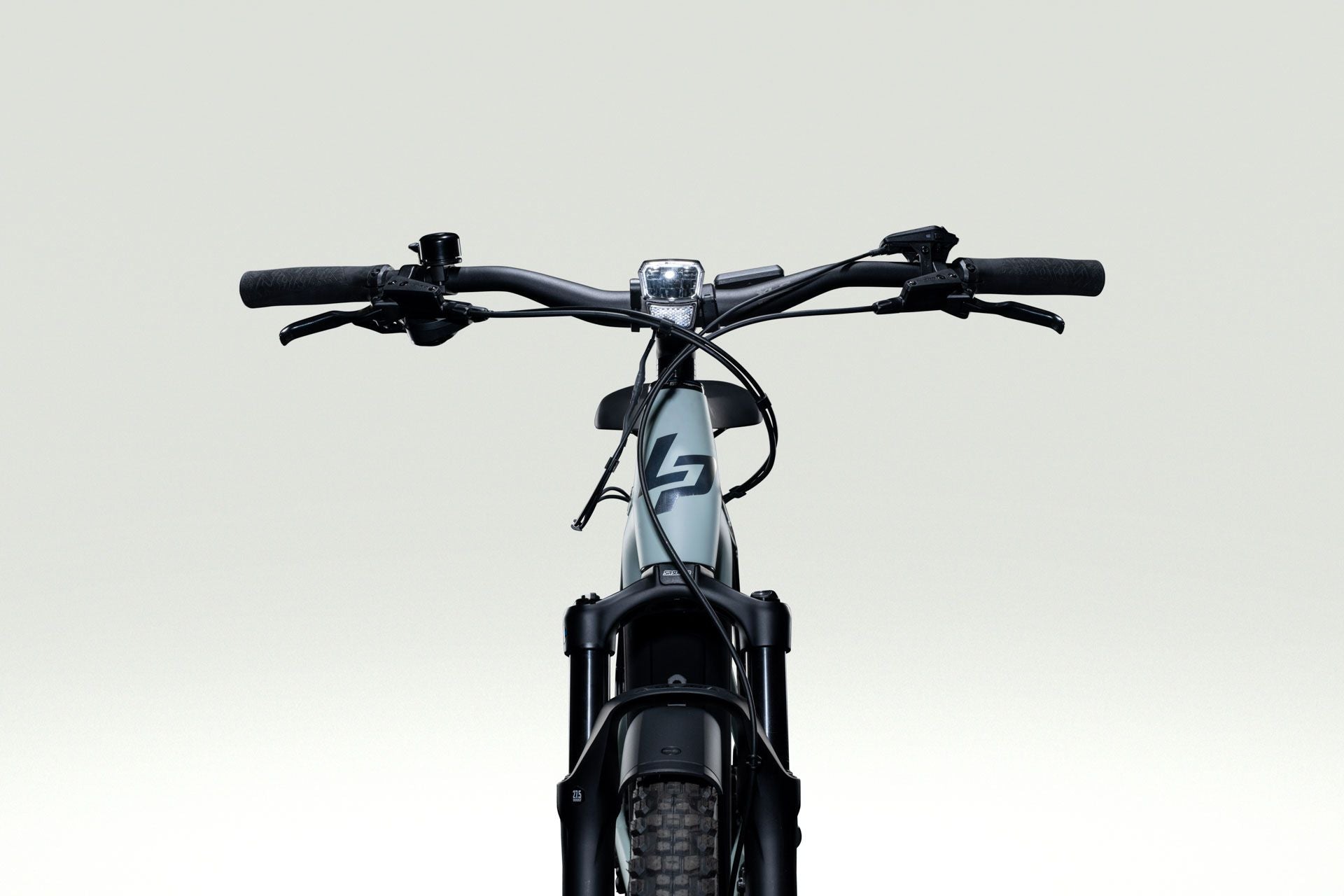

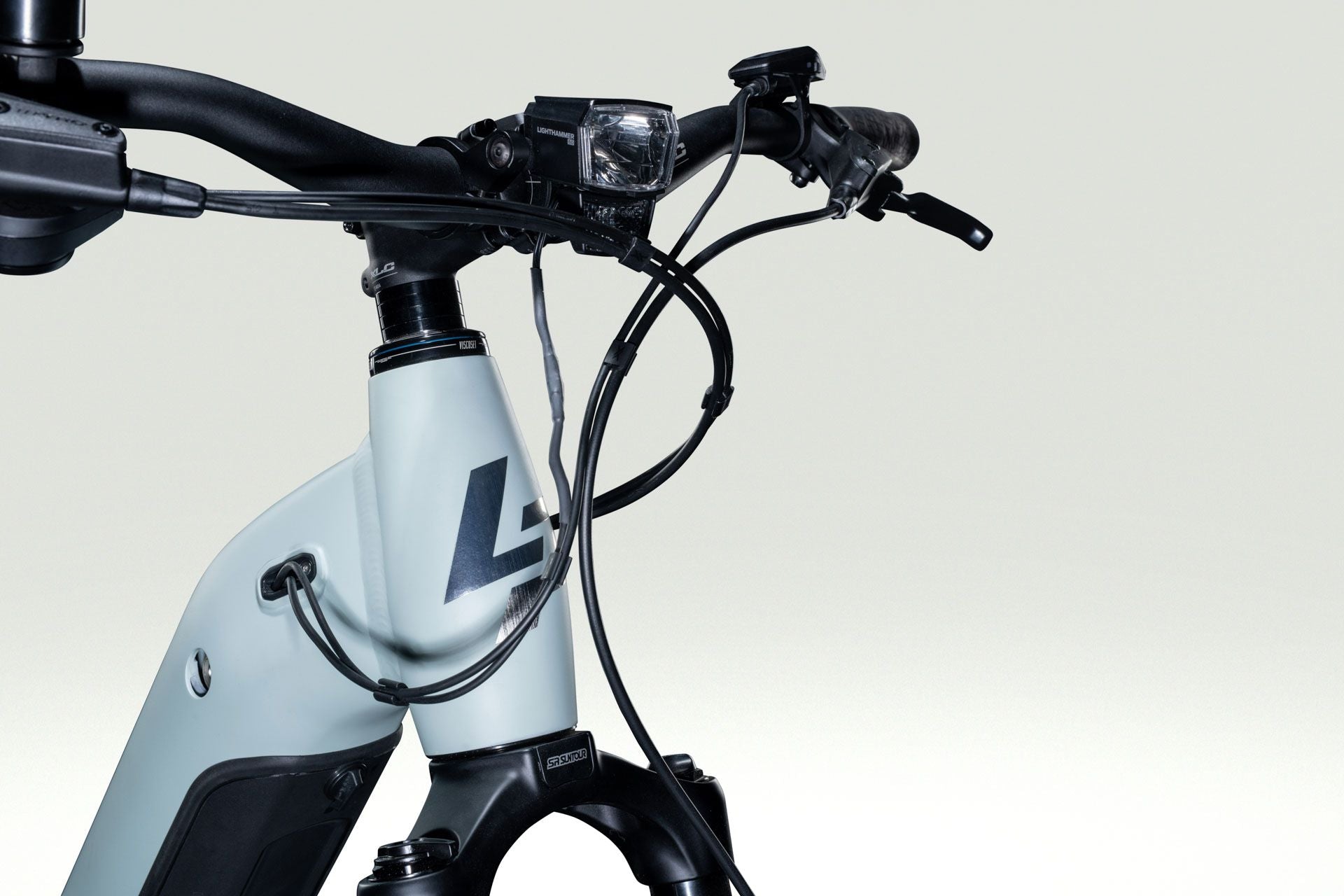

Headlight: Trelock Lighthammer LS800 60 Lux, 6-12V
Rear Light: AXA Juno E-Bike, 6-12V
Brake light:
Grips: XLC

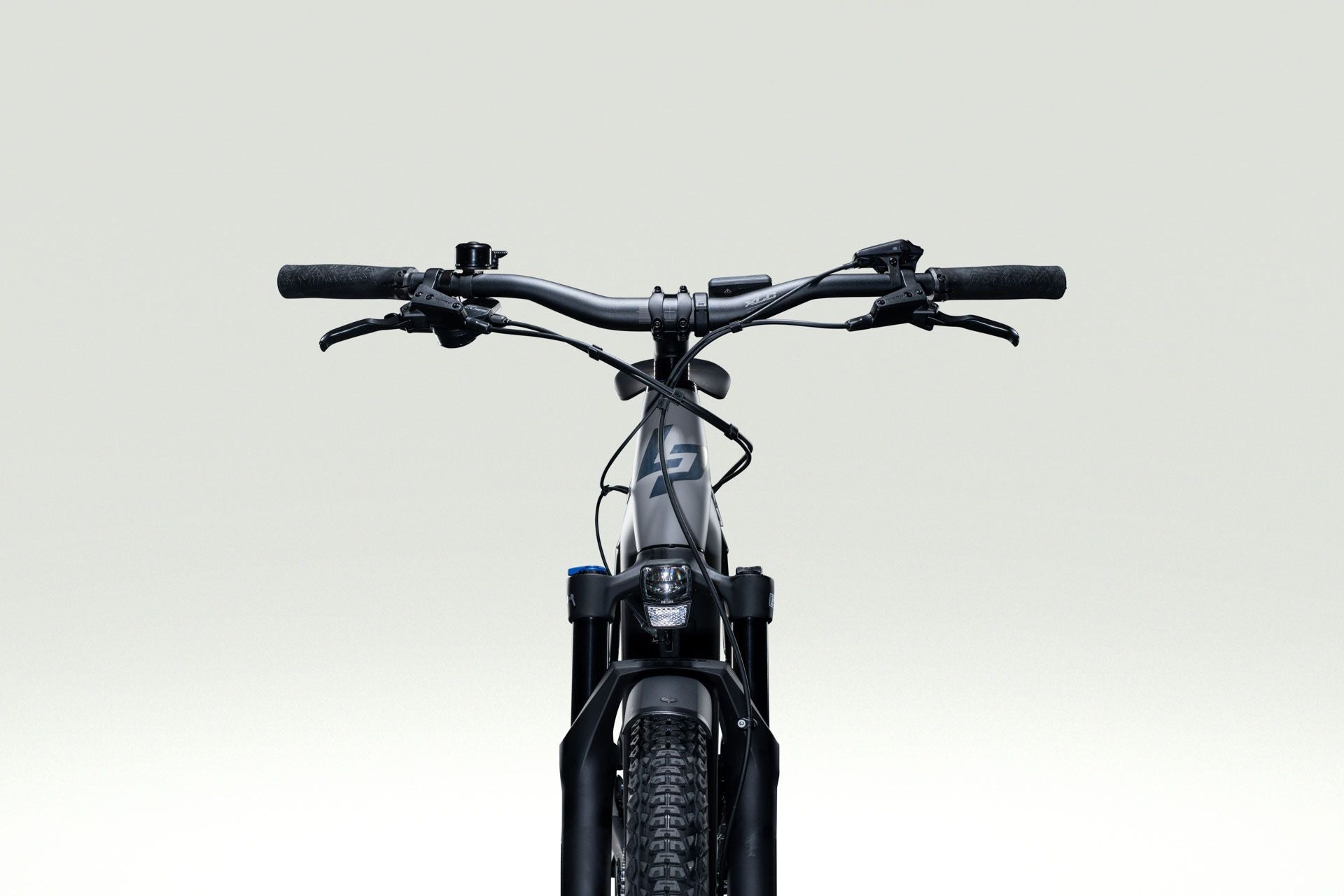

Handlebar: XLC Trekking HB-M32, Dia. 31.8 mm, Rise: 25 mm, backsweep 15°
Pedal: XLC PD-M29 Flat w. Reflector

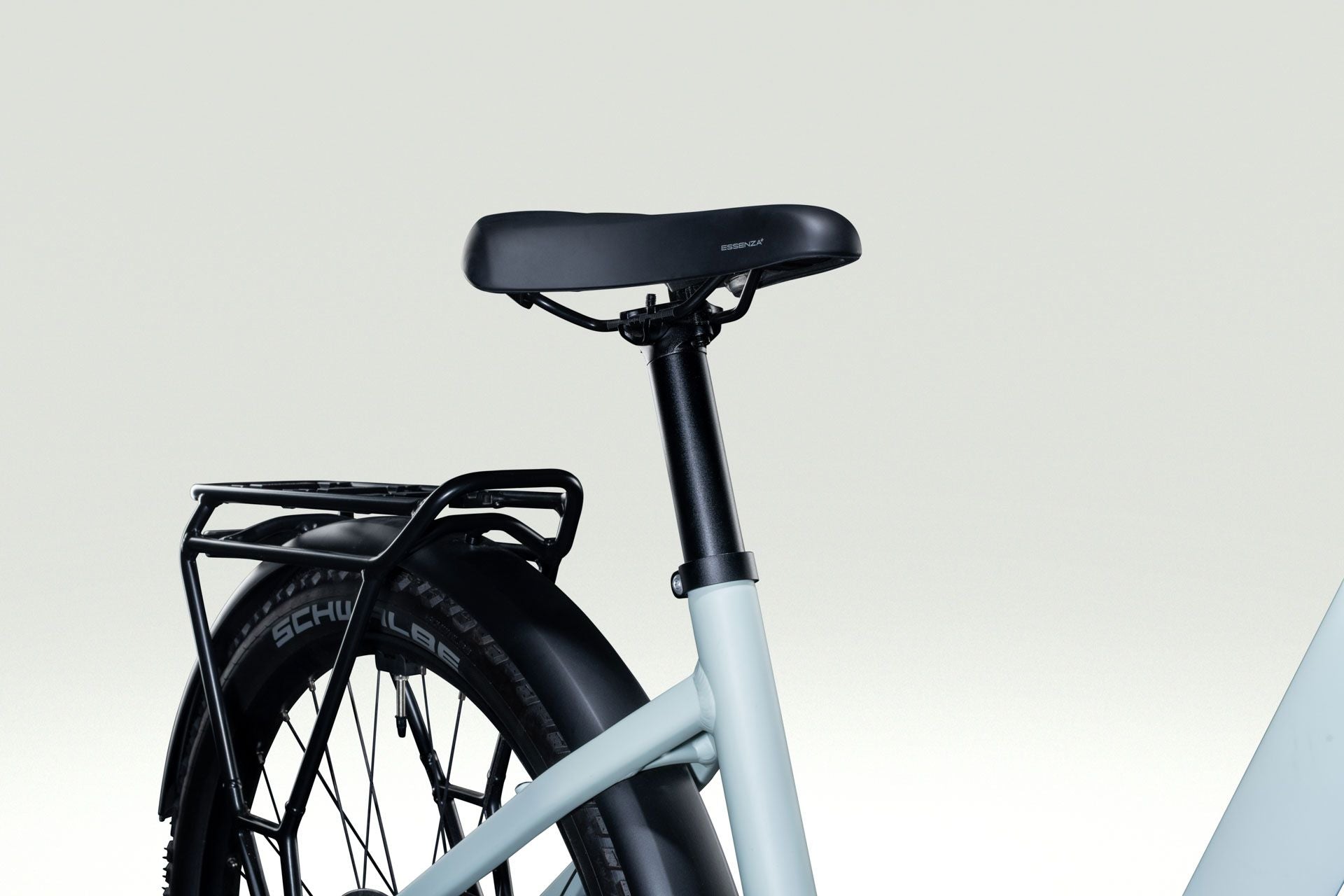

Saddle: XLC MTB Sport Comfort SA-S11 Steel Rail 155 mm
Seatpost: Satori Suspension Harmony LT2 OV, Dia. 34.9 mm, L: 300 mm,T:40mm
Wheelset
Wheelset
wheel set:
wheel set:
Rim: XLC WR-M37 Disc 30/584, 32H, 6,5 mm Valve
Tyre: Schwalbe Johnny Watts Performance, DD, RaceGuard, 67EPI 60-584
Documents
Documents
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
