E-Explorer 5.5
E-Explorer 5.5
Description

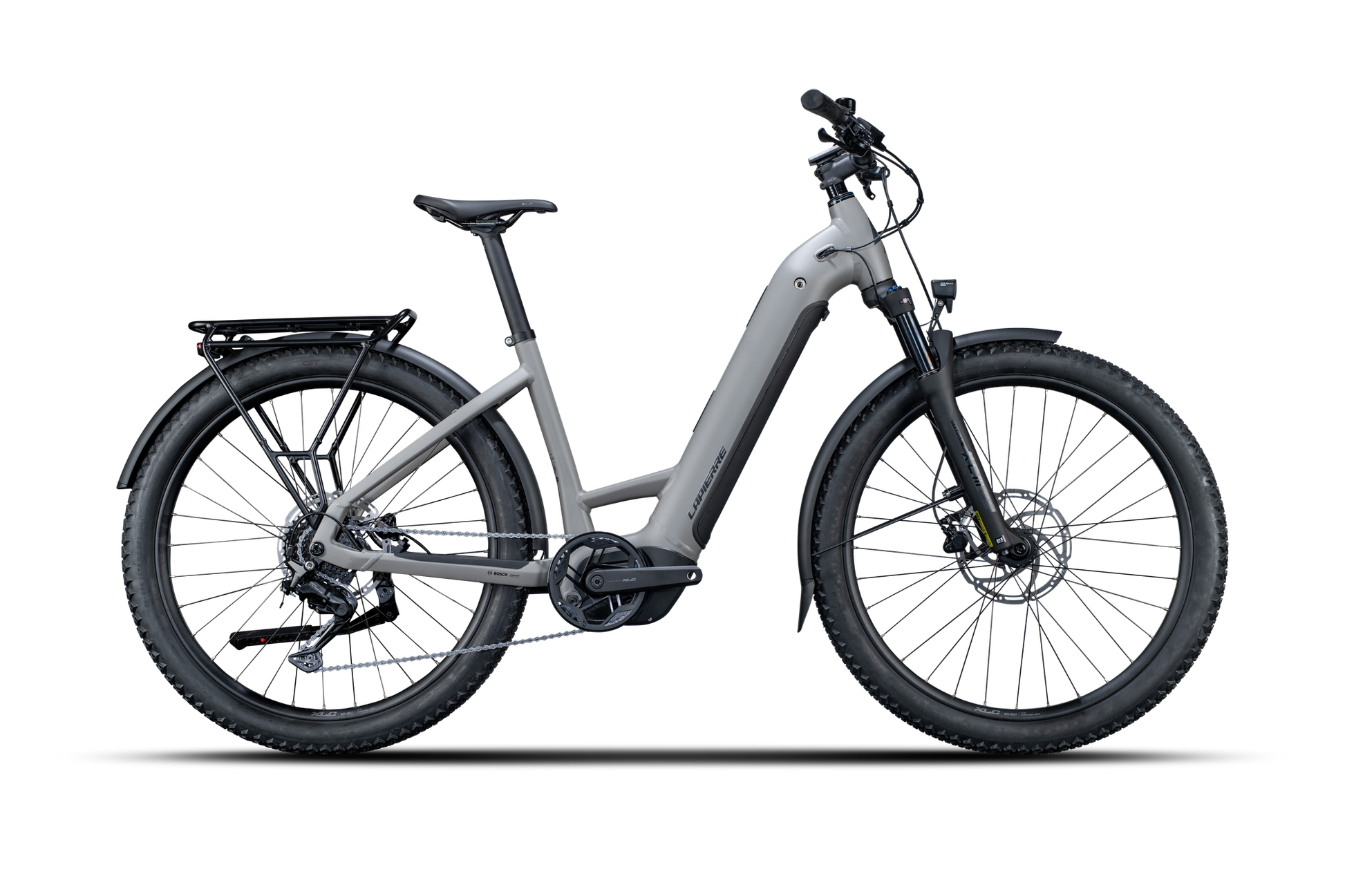

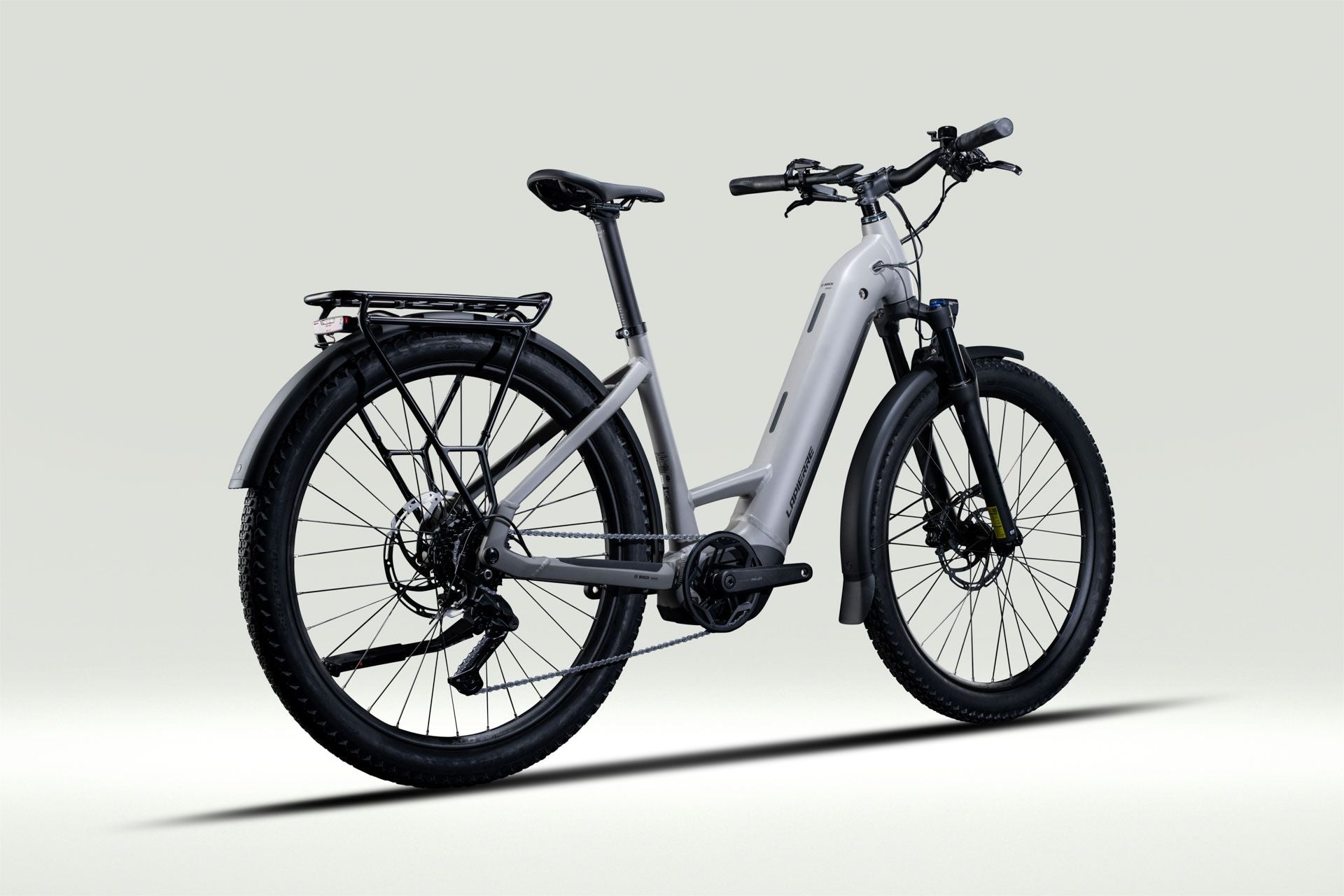

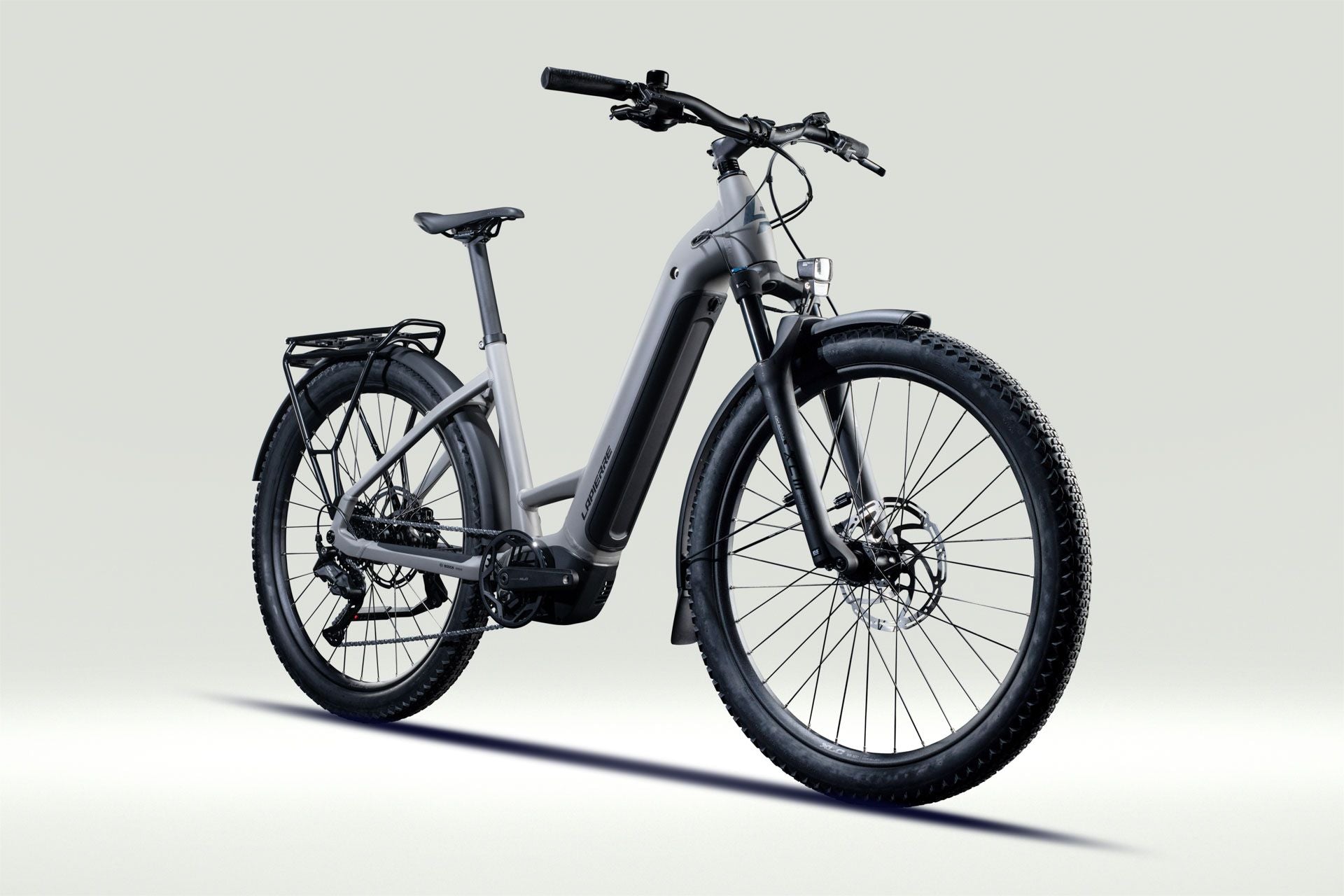

The Lapierre E-Explorer 5.5 Low 2026 is a versatile electric trekking bike designed for comfortable daily commuting and weekend adventures. Its low-step aluminum frame ensures easy access and confident handling, while the Bosch Performance Line Smart System motor delivers 75 Nm of smooth, natural support. Equipped with a 540 Wh integrated battery, Shimano CUES 9-speed drivetrain, Suntour suspension fork with up to 100 mm travel, and hydraulic disc brakes, it offers comfort, control, and reliability on both urban roads and mixed terrain. Integrated lights, rack, and mudguards make it ready for everyday use.
Geometry
| Component | S | M | L |
|---|---|---|---|
| A: Seat tube length (mm) | 380 mm | 450 mm | 500 mm |
| B: Top Tube legth (mm) | 630 mm | 630 mm | 660 mm |
| C: Head tube length (mm) | 150 mm | 155 mm | 175 mm |
| D: Head Tube Angle | 68 degrees | 68 degrees | 68 degrees |
| E: Seat Tube Angle | 74 degrees | 74 degrees | 74 degrees |
| F: Chain stay length (mm) | 475 mm | 475 mm | 475 mm |
| G: Wheelbase (mm) | 1166 mm | 1189 mm | 1220 mm |
| H: Stack (mm) | 654 mm | 654 mm | 672 mm |
| I: Reach (mm) | 410 mm | 430 mm | 455 mm |
| K: Bottom bracket drop (mm) | 65 mm | 60 mm | 60 mm |
Specifications
e-System
e-System
Battery: Bosch
Charger: Bosch Charger 4A, 230V
Display: Bosch Intuvia 100 + LED Remote
Motor: Bosch Performance line
Frame
Frame
Frame: LOW Aluminium Low entry
Modular Rail System:
Maximum loadable weight: 130 kg
Drive
Drive
Cassette: Shimano CUES CS-LG300-9, HG
Chain: KMC eGlide with EPT Coating 9-11s

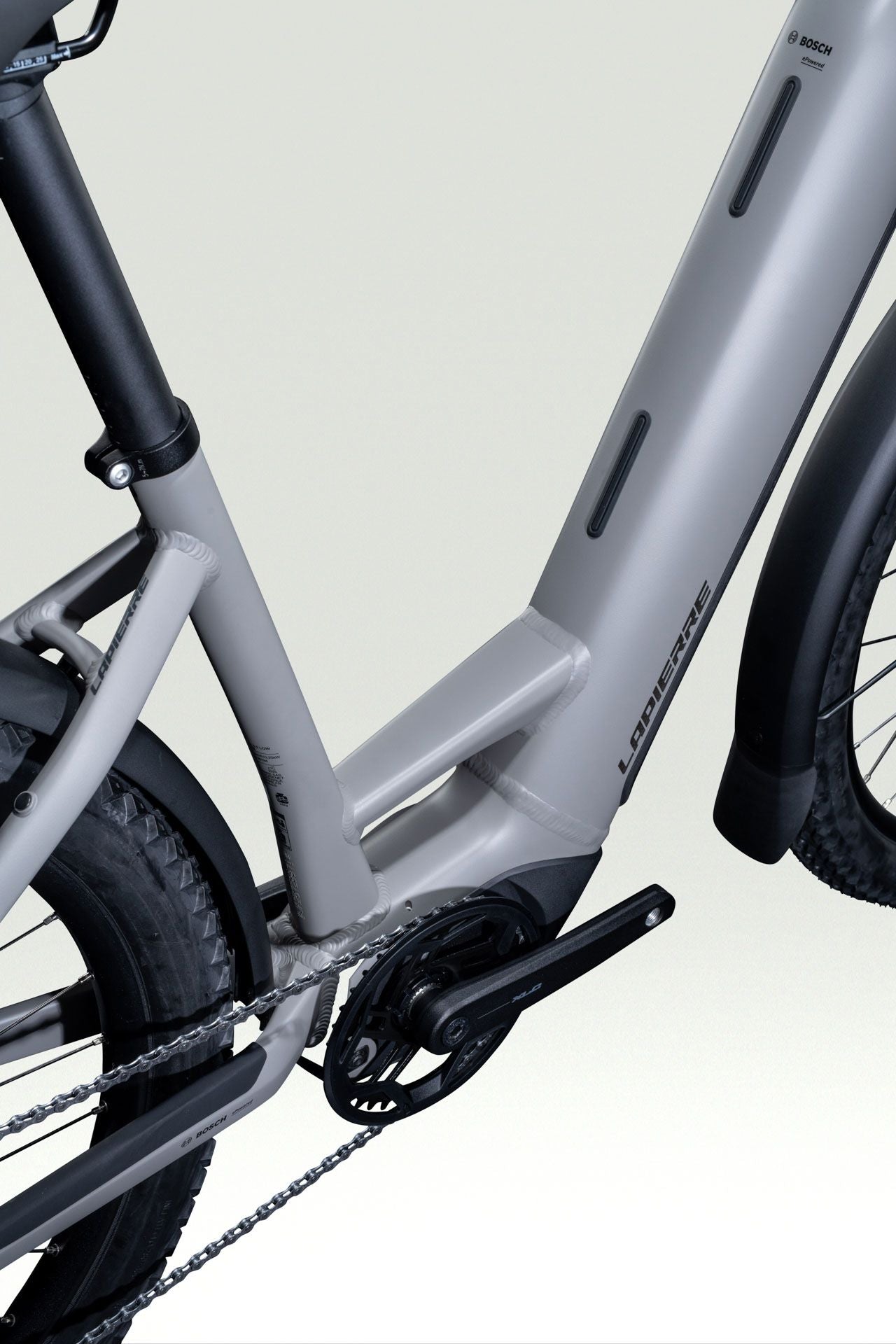

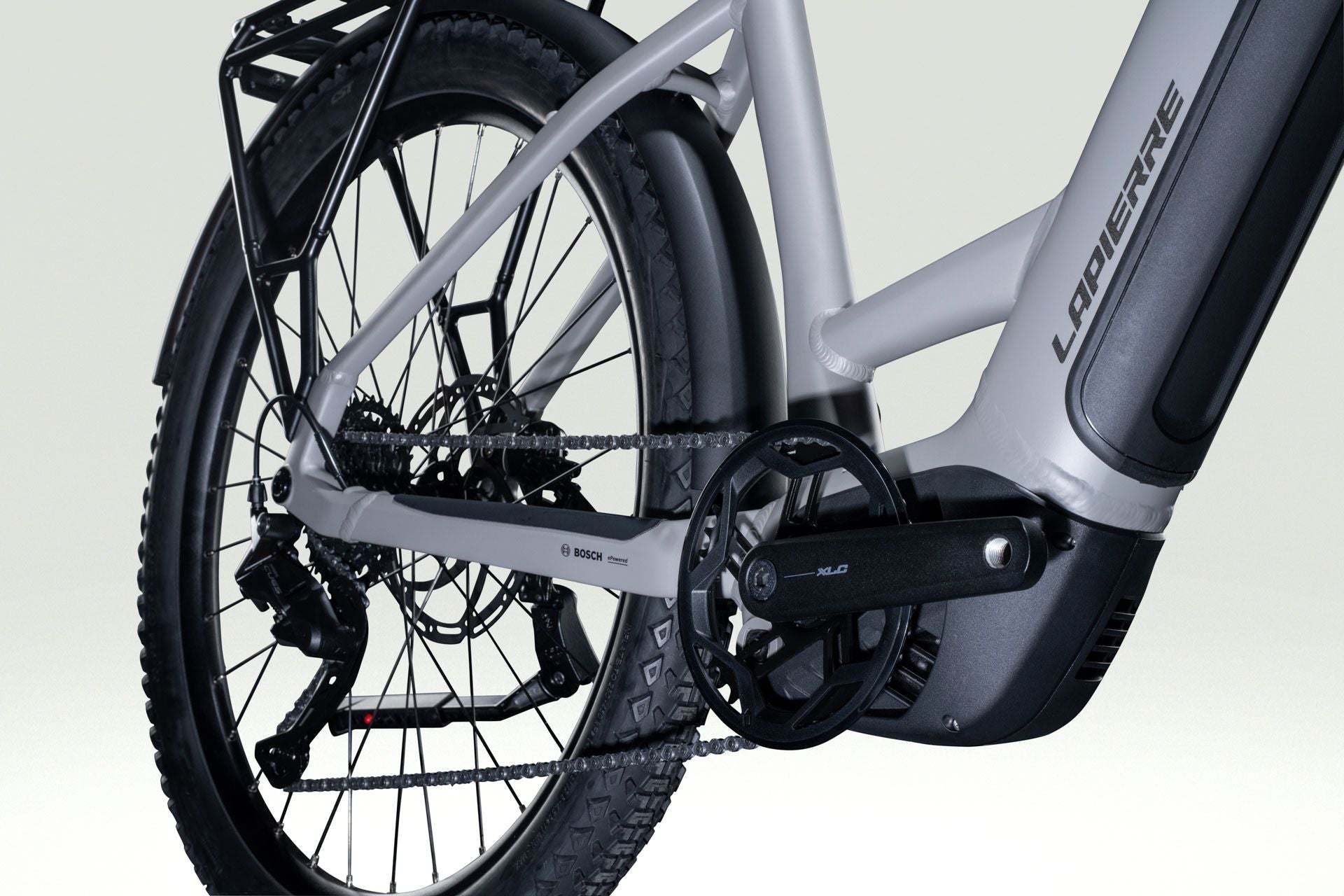

Crankset: Crius ISIS Cranks + CR-E15 BDU 38 + Bashring

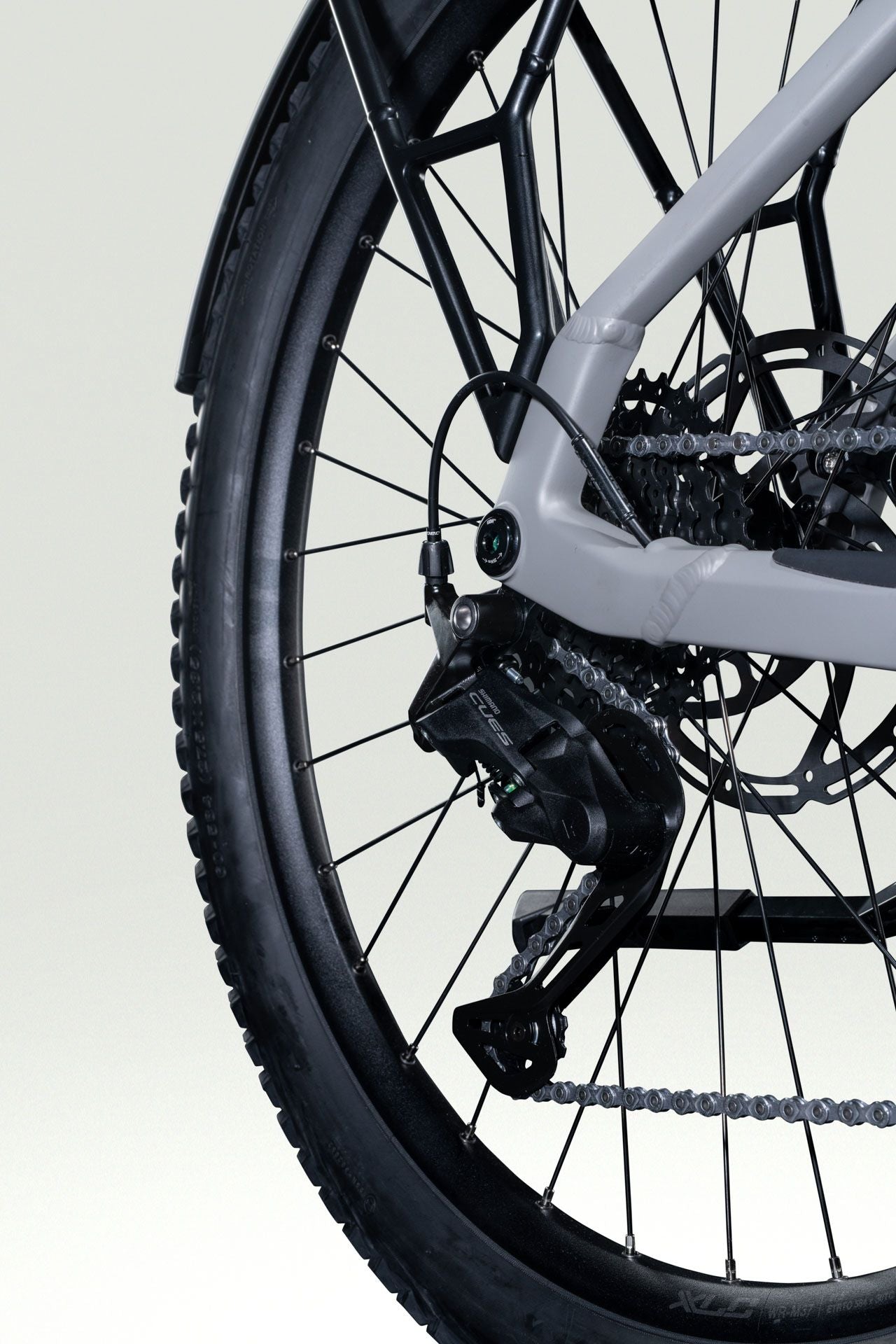

Derailleur Rear: Shimano CUES RD-U3020-9s, Shadow
Gear: Shimano Derailleur
Number of gears: 9
Shifter Right: Shimano Triggershift CUES SL-U4000-9R, Rapidfire+
Suspension
Suspension

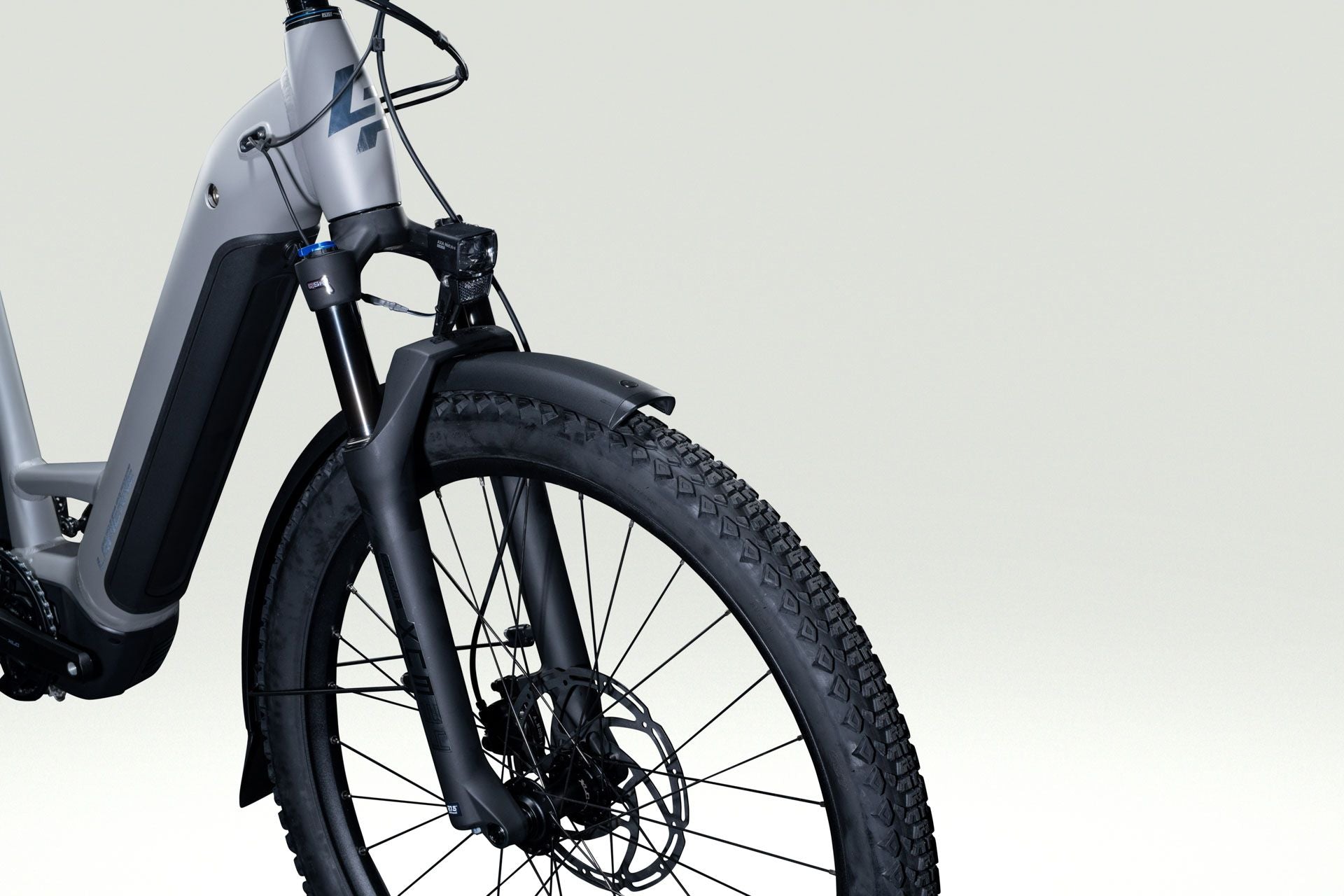

Front Fork: Suntour XCM32-Boost RL DS, 100 mm
Travel:
Shock:
Damper:
Rear Travel:
Components
Components
Front Brake: Tektro Hydraulic Disc brake HD-M280, 2 pistons, resin pad, 203 mm
Rear Brake: Tektro Hydraulic Disc brake HD-M280, 2 pistons, resin pad, 203 mm
Headlight: AXA NXT 30 E-Bike, 6-48V
Rear Light: AXA Juno E-Bike, 6-12V
Brake light:
Grips: XLC

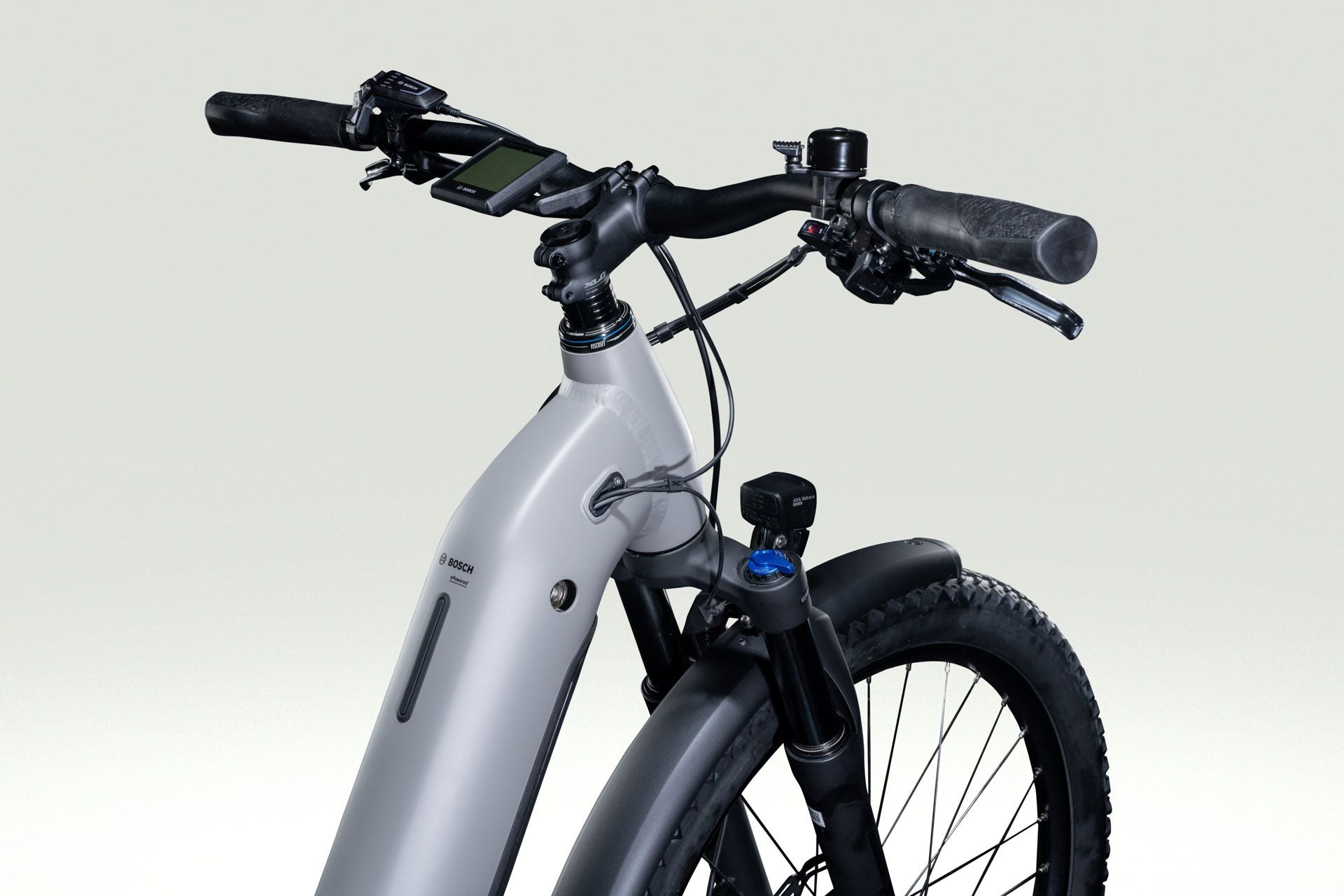

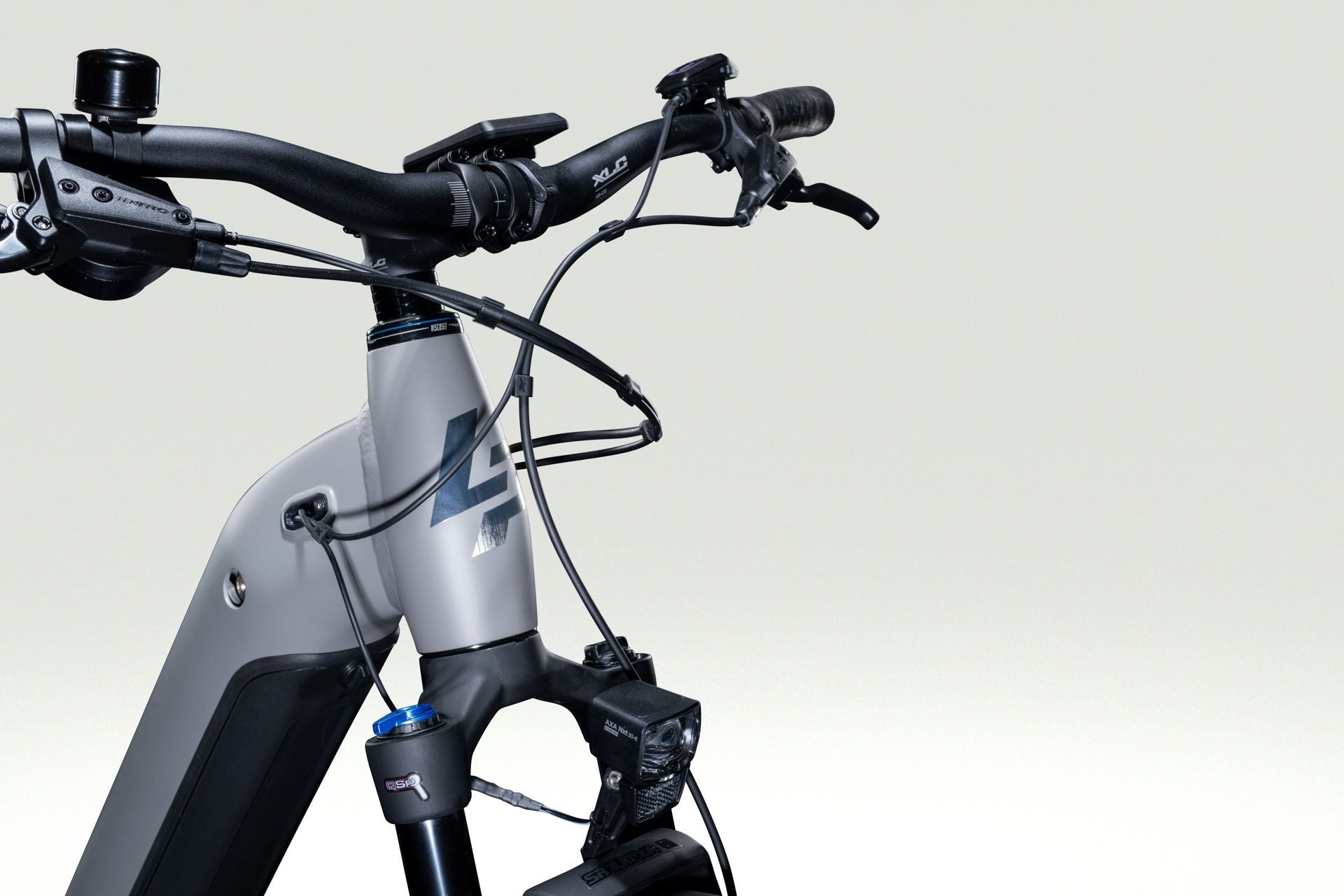

Handlebar: XLC Trekking HB-M32, Dia. 31.8 mm, Rise: 25 mm, backsweep 15°
Pedal: XLC PD-M29 Flat w. Reflector

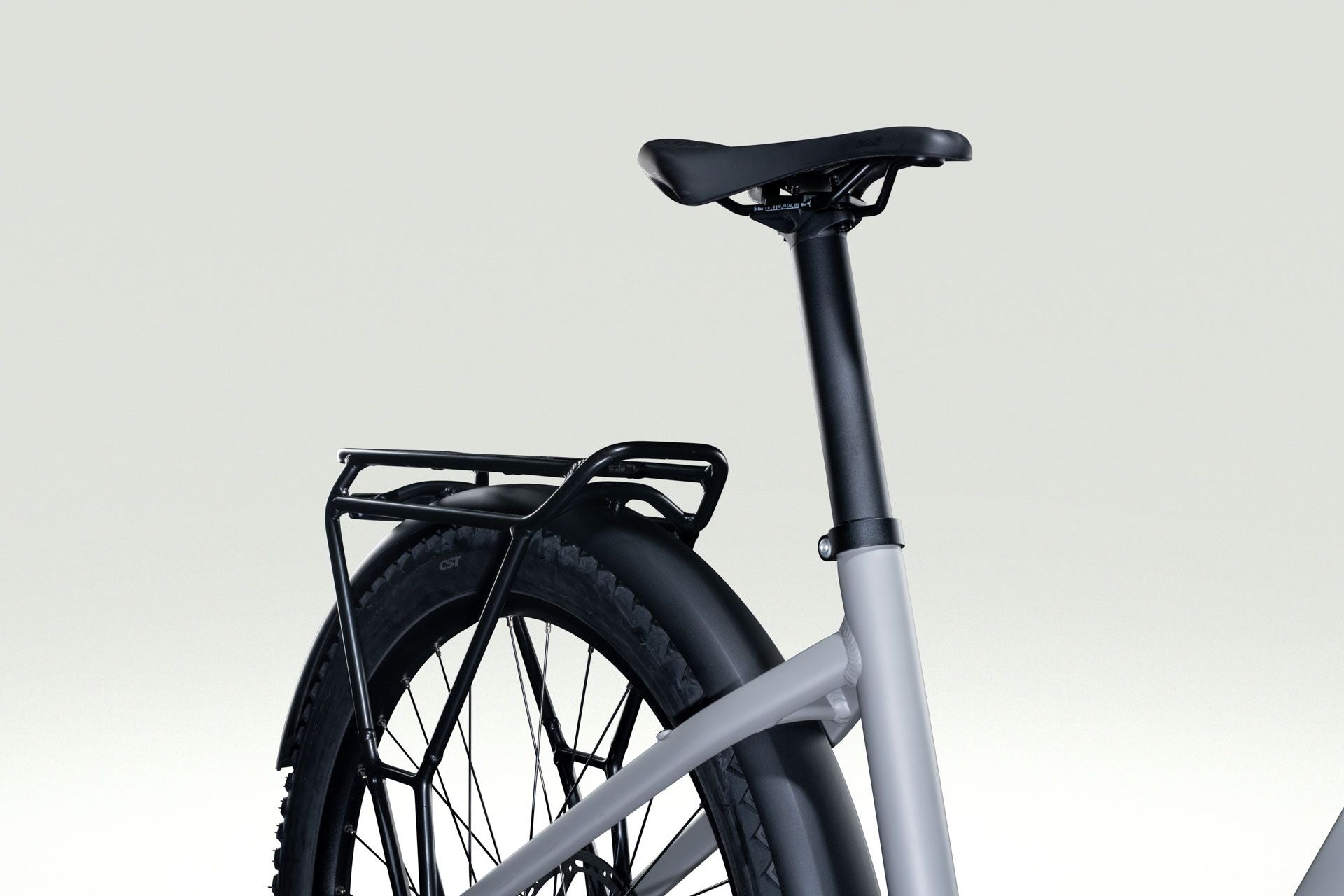

Saddle: XLC MTB Sport Comfort SA-S11 Steel Rail 155 mm
Seatpost: XLC Non Suspension SP-R30, Dia. 34.9 mm, L: 350 mm
Wheelset
Wheelset
wheel set:
wheel set:
Rim: XLC WR-M37 Disc 30/584, 32H, 6,5 mm Valve
Tyre: XLC VT-T45 Tourak 60-584
Documents
Documents
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
