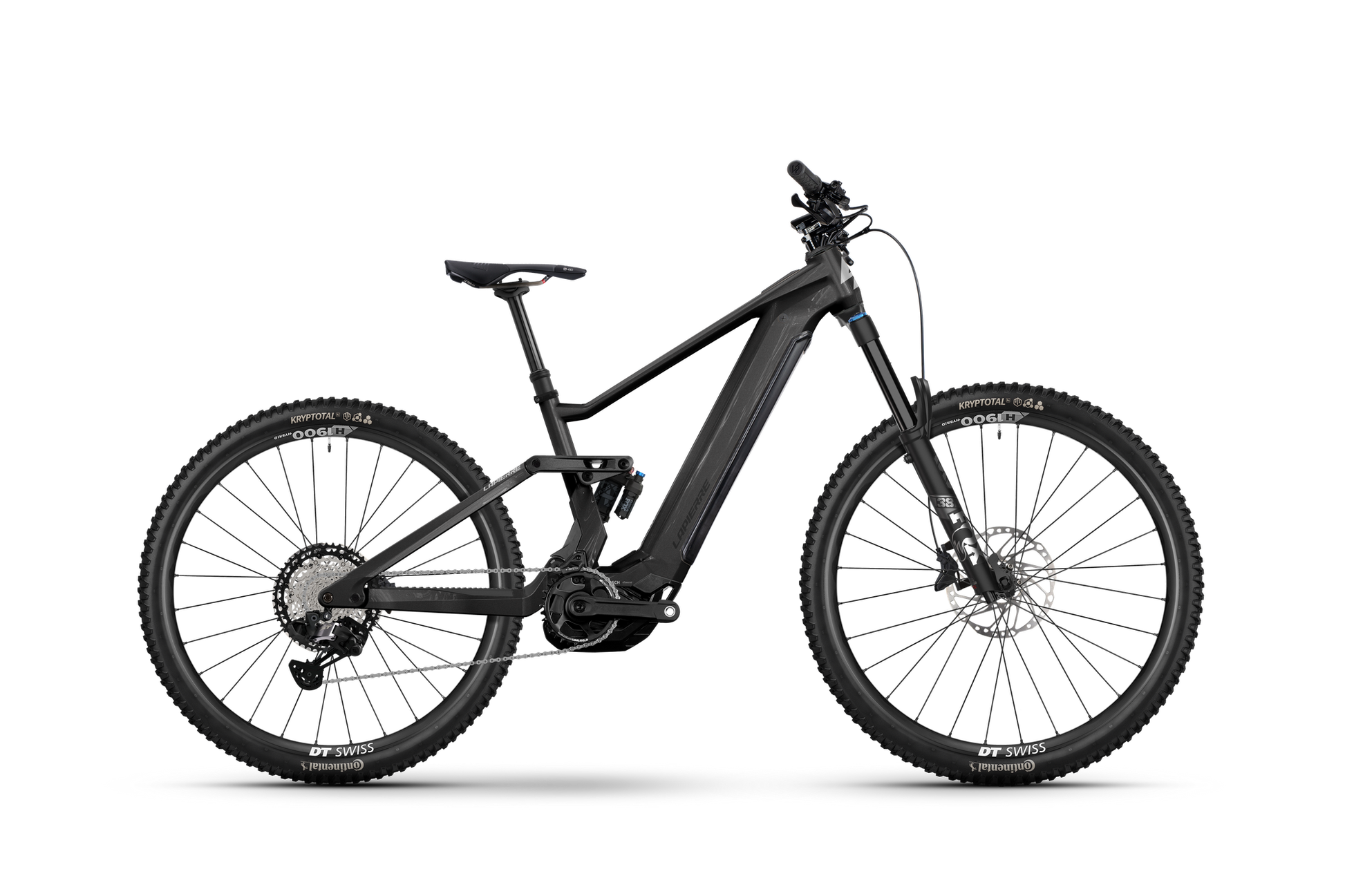

OVERVOLT AM 9.8
OVERVOLT AM 9.8
Description
Leave your troubles at home. Set off for a ride on the Overvolt AM 7.7. This electrically-assisted all-mountain bike is the ultimate machine for discovering, loving and adopting the mountains. Thanks to its solid heritage, it is immune to the constraints of the bumpy trails found in mountain resorts. At high altitude, its kinematics and handling border on enduro, with unique manoeuvrability and responsiveness. The Mullet design (27.5-inch rear wheel / 29-inch front wheel) adds another dimension to mountain adventures. It complements the 170 mm of travel provided by the RockShox ecosystem (fork and shock absorber), known for its reliability in every situation. By guaranteeing optimised grip on the rear triangle while retaining clearance on the front, this geometry contributes greatly to overall performance.
Specifications
e-System
e-System
Battery: Bosch Powertube 800 Wh
Charger: Bosch Charger 4A, 230V
Display: Bosch Kiox 300 + Mini Remote
Motor: Bosch Performance line CX
Frame
Frame
Frame: HIGH Aluminium Uni
Modular Rail System:
Maximum loadable weight: 120 kg
Drive
Drive
Cassette: Shimano Deore XT CS-M8200-12, MICRO SPLINE
Chain: Shimano CN-M8100 12s
Crankset: CR-E18 Cranks 160 mm + Chainring E40
Derailleur Rear: Shimano Deore XT RD-M8260-SGS 12s
Gear: Shimano Derailleur
Number of gears: 12
Shifter Right: Shimano Triggershift Deore XT SW-M8250-IR, wireless SL
Suspension
Suspension
Front Fork: FOX Factory 38 Float F-S E-Optimized, Grip X, 170 mm
Rear Travel:
Shock: FOX Factory Float X Factory Series, 2pos-Adj. 205x60 mm, Trunnion
Travel: 170 mm
Components
Components
Front Brake: Shimano Hydraulic Disc brake Deore XT BR-M8220, 4 pistons, resin pad, 203 mm
Rear Brake: Shimano Hydraulic Disc brake Deore XT BR-M8220 4 pistons, resin pad, 203 mm
Headlight:
Rear Light:
Brake light:
Grips: XLC GR-S34 Gravity Grip
Handlebar: XLC Flat bar HB-M34, Dia. 35 mm, Rise: 30 mm, backweep 9°
Pedal: XLC PD-M29 Flat w. Reflector
Saddle: Prologo MTB Proxim W450 Steel
Seatpost: JD Dropperpost YSI05, Dia. 31.6 mm, Travel: 125 mm 405 mm
Wheelset
Wheelset
Front wheel set: DT Swiss H 1900 Spline, 30 mm, 15x110 mm, CL
Rear wheel set:
Rim:
Tyre: Continental Kryptotal-F Enduro SuperSoft foldable skin SL 60-622
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
